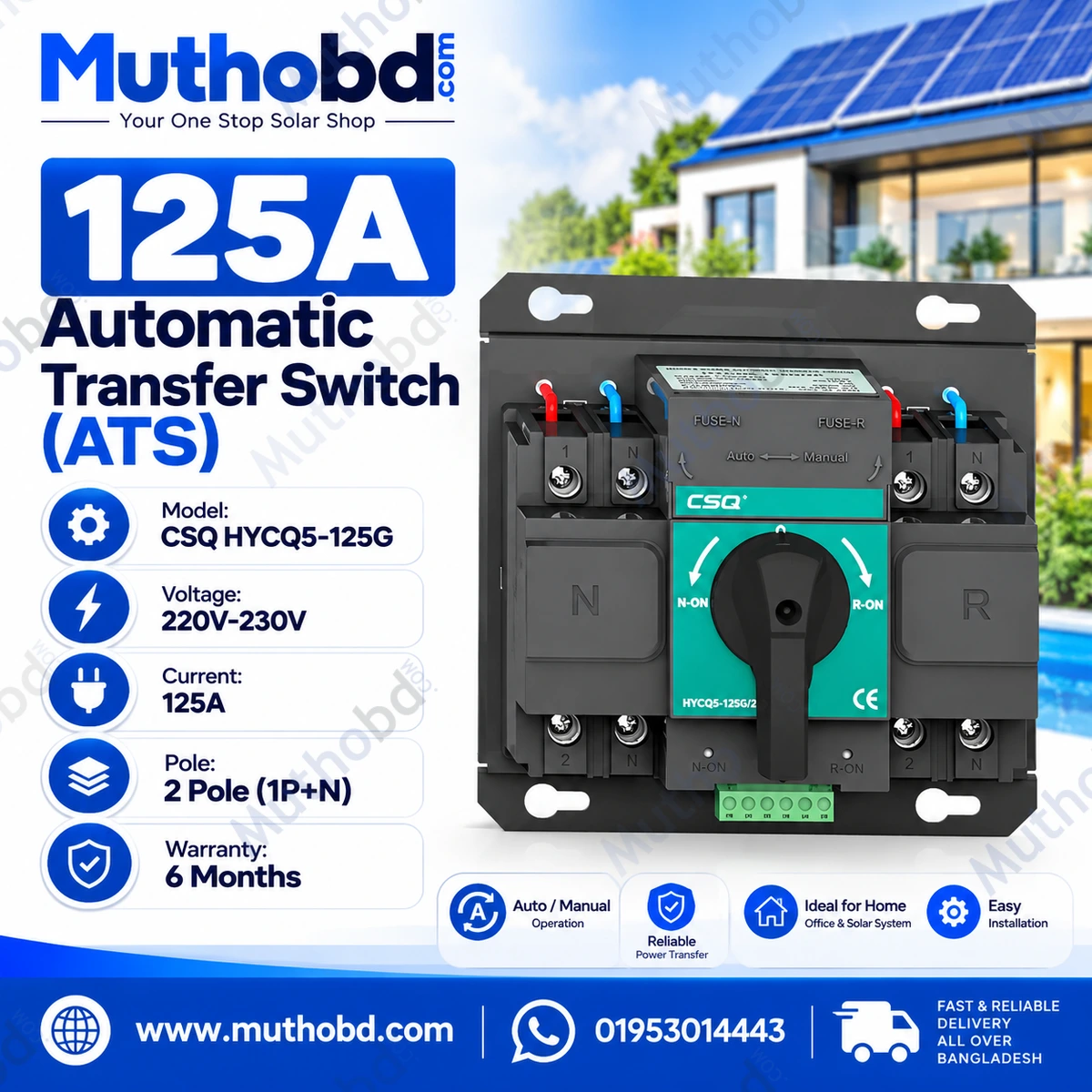

CSQ HYCQ5-125G 125A Automatic Transfer Switch (ATS) 220V–230V 2 Pole

CSQ HYCQ5-125G 125A Automatic Transfer Switch

The CSQ HYCQ5-125G 125A Automatic Transfer Switch (ATS) is designed for electrical installations that require switching between two power sources. With a stated current rating of 125A, an operating voltage of 220V–230V and a 2-pole (1P+N) configuration, it can be considered for compatible residential, commercial and backup power applications.

Automatic Transfer Between Two Power Sources

An Automatic Transfer Switch is designed to transfer an electrical load between two available supplies according to its control logic. Depending on the installation, these sources may include utility electricity and a compatible generator or another supported power supply.

Automatic transfer can reduce the need for manual switching when the primary source becomes unavailable. The exact transfer sequence, source-detection behaviour and switching time should be confirmed using the manufacturer's documentation.

125A Current Rating

The CSQ HYCQ5-125G has a stated current rating of 125A. The switch must be selected according to the connected load, supply characteristics and installation requirements. A 125A rating alone does not confirm suitability for every appliance, generator or electrical system.

Before installation, verify the device's rated voltage, current, switching capacity and compatibility with both power sources.

220V–230V Electrical Compatibility

This ATS is specified for 220V–230V electrical systems. Confirm that the voltage and electrical characteristics of both power sources match the manufacturer's requirements before connecting the switch.

Correct installation is essential for safe switching between supplies. Wiring, circuit protection and neutral arrangements should follow the manufacturer's diagram and applicable electrical standards.

2-Pole (1P+N) Configuration

The supplied specification identifies the device as a 2-pole (1P+N) ATS. This configuration is intended for switching phase and neutral conductors, subject to the device's design and wiring instructions.

A qualified electrician should confirm that the pole arrangement is appropriate for the specific installation, particularly where a generator or another independent supply is used.

Applications for Backup Power Systems

Depending on the manufacturer's approved use and the system design, a dual-source ATS may be considered for:

• Utility and generator power switching

• Compatible backup power installations

• Residential electrical systems

• Shops and commercial premises

• Other installations requiring automatic source transfer

The switch must be compatible with the connected loads and both power sources. Suitable circuit protection and correct electrical installation are essential.

Warranty Information

The supplied product details state a 6-month warranty. Confirm the official warranty coverage and service terms with the seller before purchase.

The CSQ HYCQ5-125G is an option for compatible dual-power transfer installations requiring a 125A-rated ATS. Check the official datasheet for transfer timing, control logic, switching capacity and other technical details before installation.
