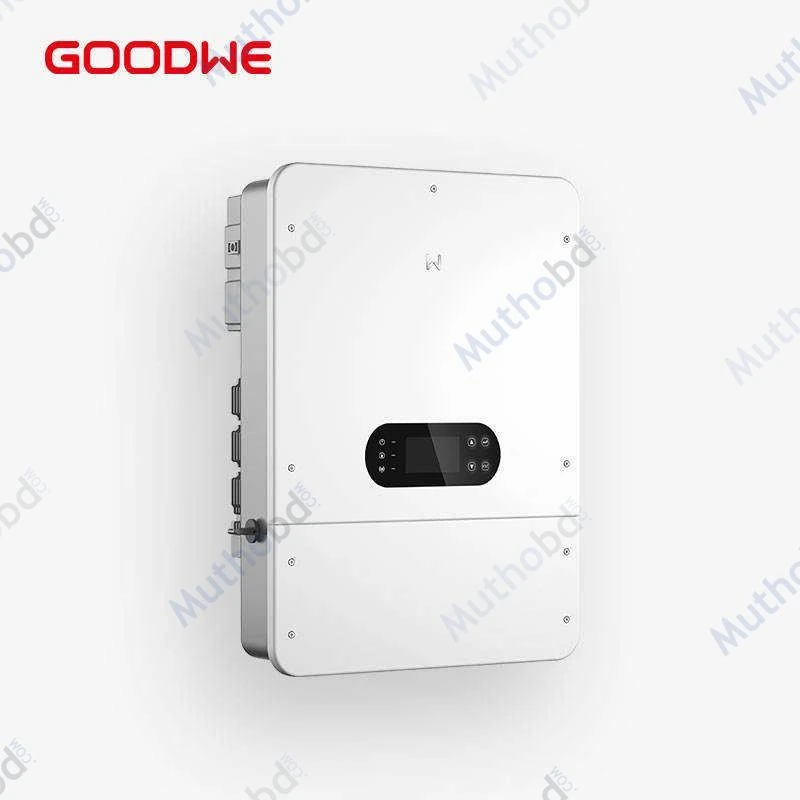

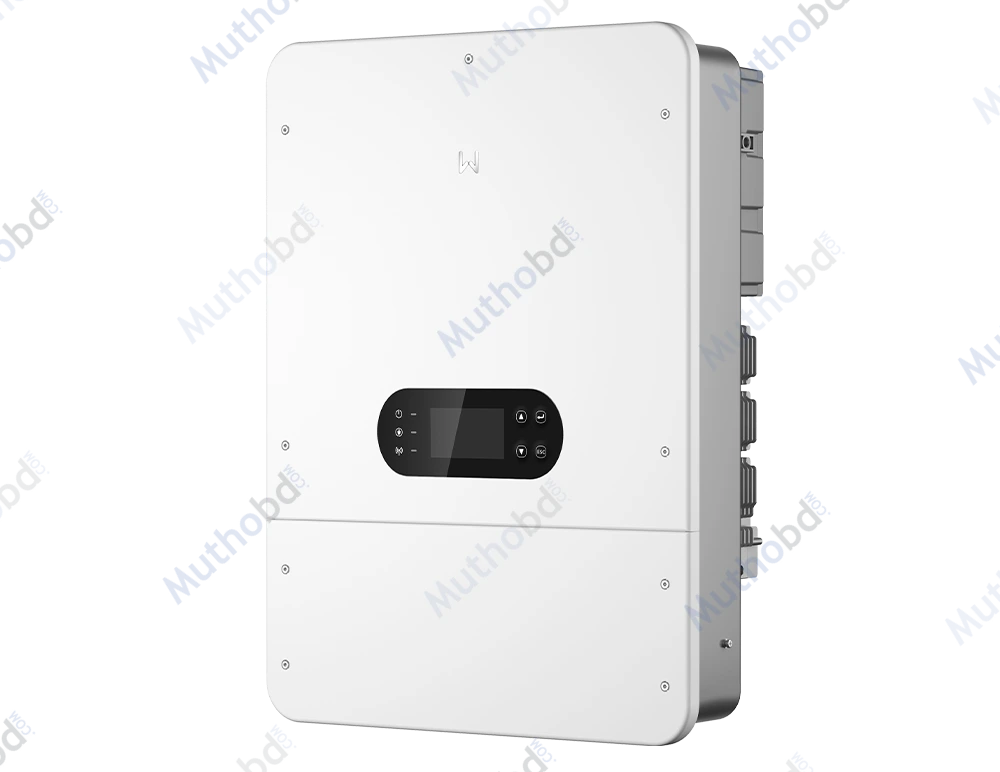

GoodWe GW10K-ET-L-G10 10KW 3-Phase 48V Hybrid Solar Inverter
In Stock
Key Features
10KW three-phase hybrid inverter with 48V low-voltage battery support.
Compatible with LiFePO4 (LFP) and lead-acid battery systems.
Triple MPPT design for maximum solar energy production.
Supports up to 20kW PV input capacity.
High conversion efficiency up to 97.8%.
Intelligent battery charging and backup power management.
Built-in WiFi, LAN, Bluetooth, RS485, CAN, and optional 4G communication.
Type II AC & DC surge protection for enhanced system safety.
IP66-rated enclosure with C4 anti-corrosion protection for outdoor installation.
Ideal for residential, commercial, and energy storage applications.
WhatsApp+880 1805 026888
Payment Option:
Payment options will be updated soon.
Product URL: https://www.muthobd.com/product/good-we-gw10-k-et-l-g10-10-kw-3-phase-48-v-hybrid-solar-inverter
Specification
| Brand | GoodWe |
|---|---|
| Model | GW10K-ET-L-G10 |
| Product Type | Three Phase Hybrid Solar Inverter |

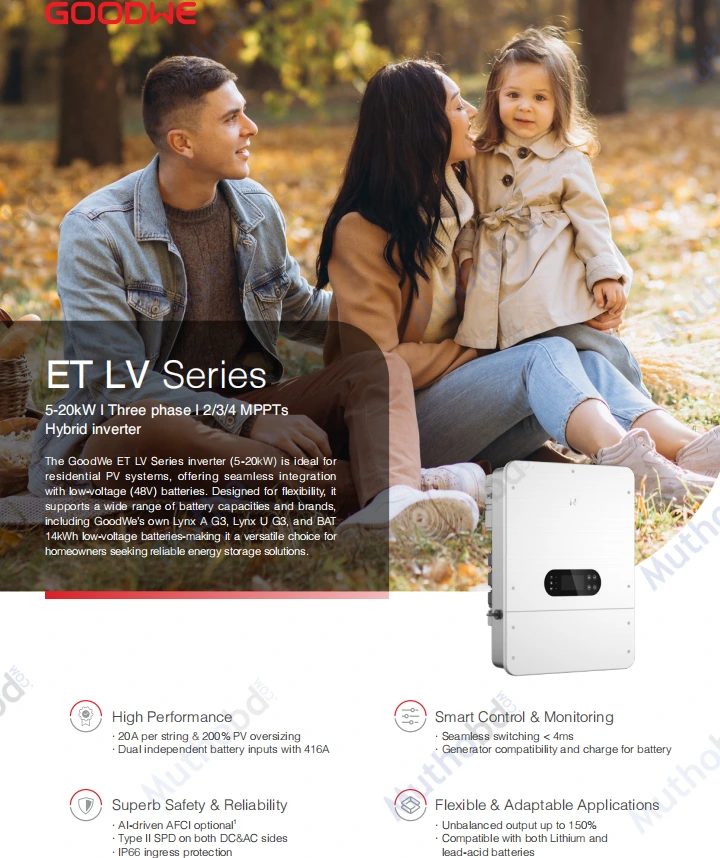

| Series | ET LV Series |
| Inverter Type | Low Voltage Energy Storage Inverter |
| Phase | Three Phase |
| Rated Output Power | 10KW |
| Battery Type | LiFePO4 (LFP) / Lead-acid |
| Battery Voltage | 48V |
| Battery Voltage Range | 40–60V |
| Number of Battery Inputs | 1 |
| Mounting Method | Wall Mounted |
| Country of Origin | Jiangsu, China |
| Certificate | IEC |
| Warranty | 5 Years |
| Specification | Value |
|---|---|
| Maximum PV Input Power | 20kW |
| Maximum Input Voltage | 1000V |
| MPPT Voltage Range | 150–850V |
| Start-up Voltage | 180V |
| Nominal Input Voltage | 620V |
| Number of MPPTs | 3 |
| Strings per MPPT | 1 / 1 / 1 |
| Maximum MPPT Current | 20A / 20A / 20A |
| Maximum MPPT Short Circuit Current | 26A / 26A / 26A |
| Specification | Value |
|---|---|
| Battery Voltage | 48V |
| Battery Voltage Range | 40–60V |
| Maximum Continuous Charging Current | 220A |
| Maximum Continuous Discharging Current | 220A |
| Specification | Value |
|---|---|
| Rated Output Power | 10kW |
| Rated Output Voltage | 400 / 380V, 3L / N / PE |
| Rated Output Current | 14.4A |
| Output Frequency | 50 / 60Hz |
| Backup Output Power | 10kVA |
| Backup Voltage Range | 170–290V |
| Specification | Value |
|---|---|
| Maximum Efficiency | 97.8% |
| European Efficiency | 97.3% |
| MPPT Efficiency | 99.9% |
| Specification | Value |
|---|---|
| PV String Current Monitoring | Integrated |
| PV Insulation Resistance Detection | Integrated |
| Residual Current Monitoring | Integrated |
| PV Reverse Polarity Protection | Integrated |
| Anti-Islanding Protection | Integrated |
| AC Overcurrent Protection | Integrated |
| AC Short Circuit Protection | Integrated |
| AC Overvoltage Protection | Integrated |
| DC Surge Protection | Type II |
| AC Surge Protection | Type II |
| Specification | Value |
|---|---|
| Cooling Method | Smart Fan Cooling |
| User Interface | LCD |
| Communication | WiFi, LAN, Bluetooth, 4G, RS485, CAN |
| Communication with BMS | CAN |
| Communication Protocols | Modbus RTU, Modbus TCP/IP, SunSpec Modbus RTU |
| Operating Temperature | -35°C to +60°C |
| Relative Humidity | 0–95% |
| Maximum Operating Altitude | 4000m |
| Noise Level | <45dB |
| Protection Rating | IP66 |
| Anti-Corrosion Class | C4 |
| Dimensions | 756 × 551 × 258 mm |
| Weight | 49.7 kg |
Detailed description
The GoodWe GW10K-ET-L-G10 10KW 3-Phase 48V Hybrid Solar Inverter is a high-performance low-voltage energy storage solution developed for modern residential, commercial, and industrial solar applications. As part of the GoodWe ET LV Series, this advanced hybrid inverter combines intelligent energy management, high conversion efficiency, and seamless backup functionality to maximize solar energy utilization while reducing dependence on the utility grid.
Supporting both 48V LiFePO4 (LFP) and lead-acid batteries, the GW10K-ET-L-G10 provides stable energy storage and reliable backup power for essential loads. Its 20kW maximum PV input capacity and three independent MPPT trackers allow greater flexibility in solar array design, improving energy generation from rooftops with different orientations or partial shading conditions.
Designed for demanding environments, the inverter features an IP66-rated enclosure, C4 anti-corrosion protection, and smart fan cooling to ensure reliable long-term operation in Bangladesh's climate.
Key Features
The GoodWe GW10K-ET-L-G10 offers advanced hybrid solar technology designed to improve efficiency, reliability, and energy independence.
Key highlights include:
10KW three-phase hybrid solar inverter
48V low-voltage battery compatibility
Supports LiFePO4 and lead-acid batteries
Triple MPPT technology for maximum energy harvesting
Up to 20kW solar PV input
Intelligent battery charging and discharging management
Backup power during utility outages
Built-in LCD display with smart monitoring
WiFi, LAN, Bluetooth, RS485, CAN, and optional 4G connectivity

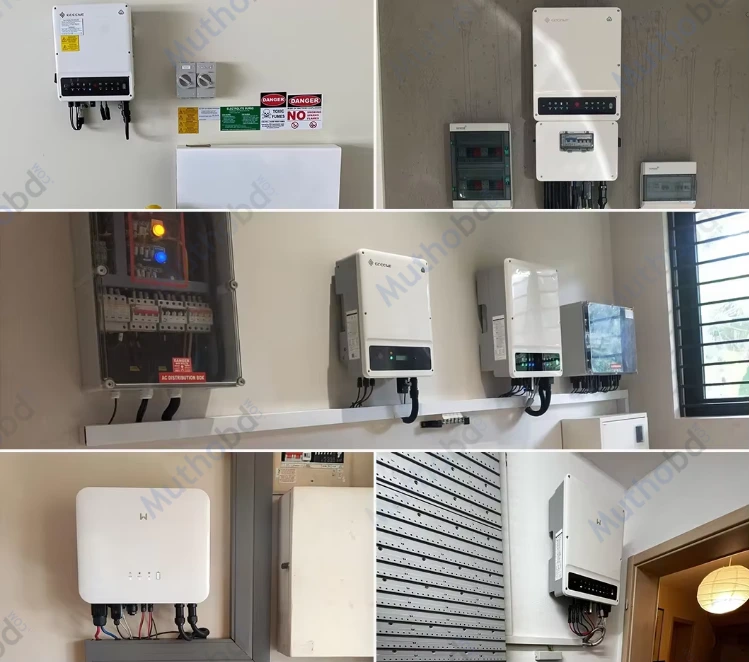

IP66 weatherproof enclosure for indoor and outdoor installation
Technical Highlights
The inverter supports a 150V–850V MPPT operating voltage range, allowing efficient solar power generation under changing weather and sunlight conditions.
With 97.8% maximum efficiency and 99.9% MPPT efficiency, the GW10K-ET-L-G10 minimizes energy losses while maximizing overall system performance.
Comprehensive built-in safety features include:
PV reverse polarity protection
PV string current monitoring
Residual current monitoring
Insulation resistance detection
Anti-islanding protection
AC overcurrent protection
AC short circuit protection
AC overvoltage protection
Type II AC and DC surge protection
The intelligent smart fan cooling system maintains optimal operating temperatures while keeping noise levels below 45dB.
Applications
The GoodWe GW10K-ET-L-G10 is suitable for:
Residential solar systems
Villas
Smart homes
Commercial buildings
Agricultural facilities
Small industrial installations
Energy storage projects
Three-phase backup systems
Grid-connected hybrid solar systems
Commercial rooftop solar installations

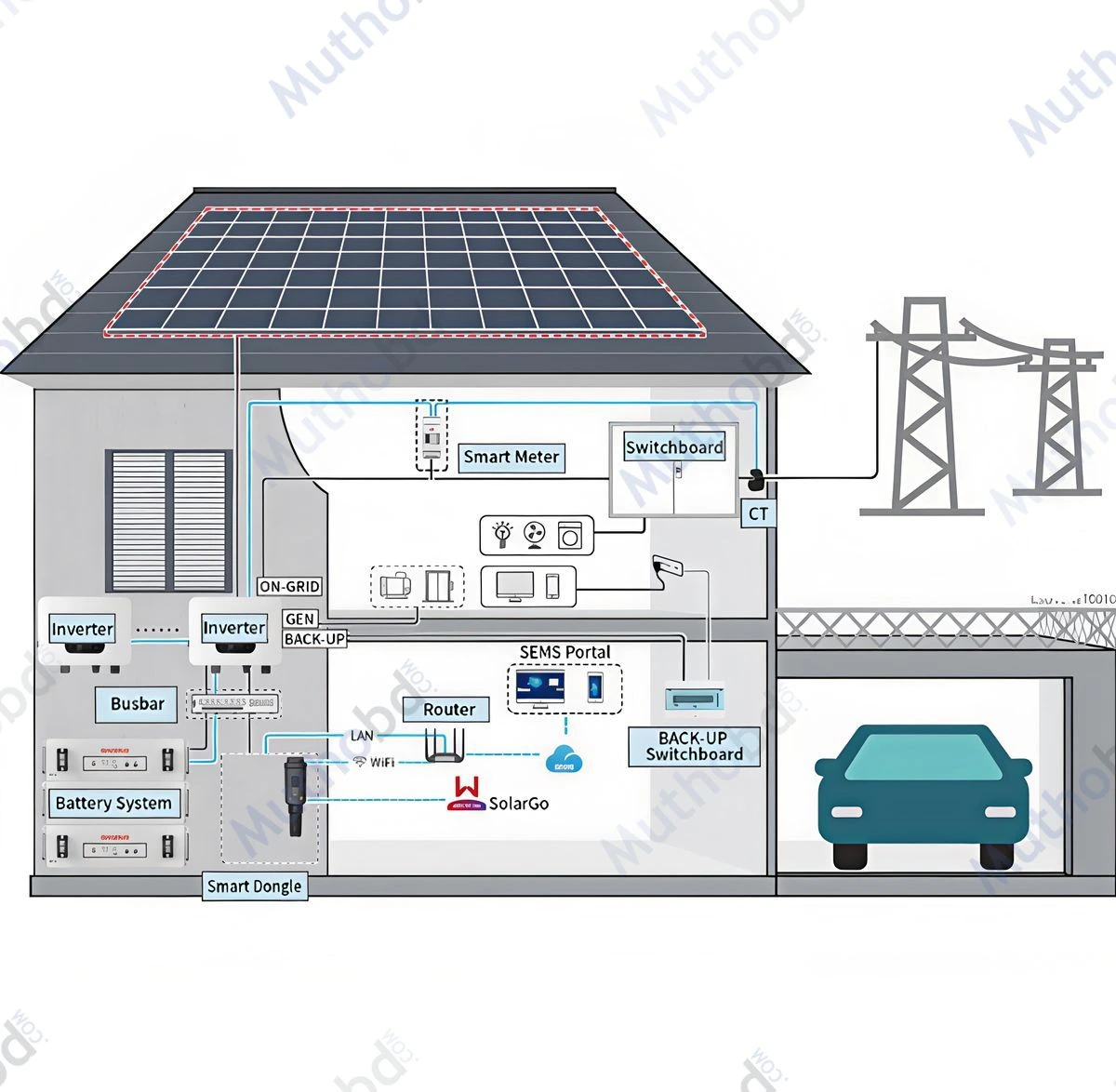

Its intelligent energy management enables efficient utilization of solar power, battery storage, and utility electricity while providing reliable backup during power failures.
Why Choose This Product
The GoodWe GW10K-ET-L-G10 delivers outstanding performance through its triple MPPT architecture, large PV input capacity, and advanced battery management. It offers excellent flexibility for complex solar installations while providing stable backup power and remote monitoring capabilities.
Its IP66 enclosure, C4 anti-corrosion protection, and advanced communication interfaces make it a dependable long-term investment for both residential and commercial users seeking greater energy independence.
Why Buy from MuthoBD
Purchase the GoodWe GW10K-ET-L-G10 from MuthoBD and enjoy:
100% Genuine GoodWe Products
Best Price in Bangladesh
Official Manufacturer Warranty
Fast Nationwide Delivery
Secure Online Shopping
Professional Technical Support
Reliable After-Sales Service
Trusted Solar Energy Solutions
Whether you are installing a new hybrid solar system or upgrading an existing one, MuthoBD offers genuine products and expert support to help you achieve efficient, reliable, and sustainable energy.
- The GoodWe GW10K-ET-L-G10 is a 10KW three-phase 48V hybrid solar inverter designed for residential and commercial energy storage systems using LiFePO4 or lead-acid batteries.
