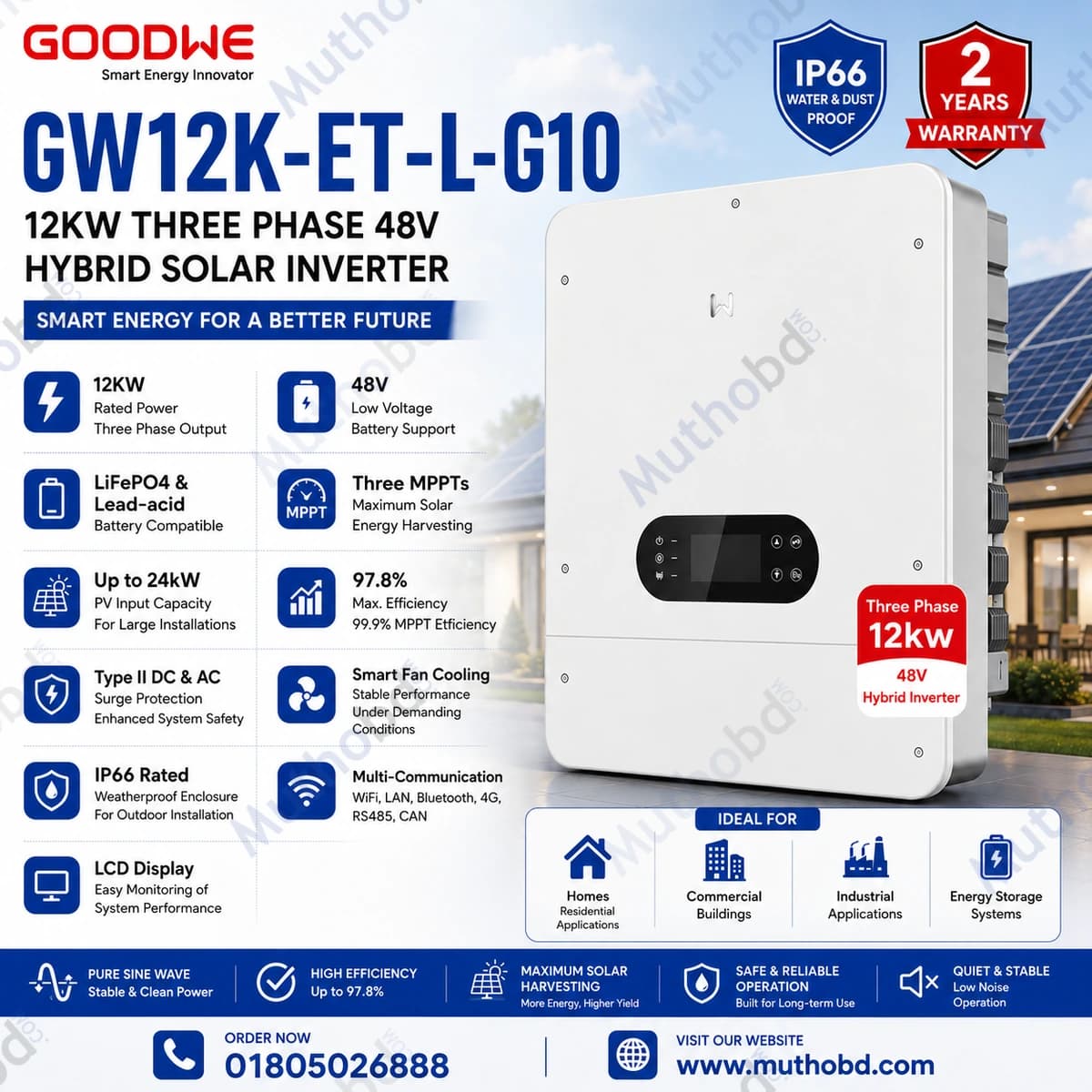

GoodWe GW12K-ET-L-G10 12KW Three Phase 48V Hybrid Solar Inverter

The GoodWe GW12K-ET-L-G10 12KW Three Phase 48V Hybrid Solar Inverter is a powerful low-voltage energy storage inverter designed for residential, commercial, and light industrial solar power systems. Built on the advanced GoodWe ET LV Series platform, this hybrid inverter combines high conversion efficiency, intelligent energy management, and reliable battery storage compatibility in a single solution.

Supporting both 48V LiFePO4 (LFP) and lead-acid batteries, the GW12K-ET-L-G10 allows users to maximize self-consumption of solar energy while ensuring uninterrupted backup power during grid outages. With support for up to 24kW PV input, three independent MPPTs, and a maximum efficiency of 97.8%, it delivers stable and efficient performance under varying weather conditions.

Whether you are planning a new solar installation or upgrading an existing energy storage system, the GoodWe GW12K-ET-L-G10 offers the flexibility, reliability, and smart monitoring features required for modern energy management.

Key Features

The GoodWe GW12K-ET-L-G10 is engineered to deliver high efficiency and dependable operation for demanding solar applications.

• 12KW three-phase hybrid inverter with 48V battery support

• Compatible with LiFePO4 (LFP) and lead-acid battery systems

• Supports up to 24kW solar PV input capacity

• Three independent MPPTs improve energy harvesting from multiple panel arrays

• Maximum efficiency of 97.8% with 99.9% MPPT tracking efficiency

• IP66-rated enclosure for indoor and outdoor installations

• Smart fan cooling for stable performance in high-temperature environments

• Integrated Type II AC & DC surge protection

• LCD display with comprehensive system monitoring

• Supports WiFi, LAN, Bluetooth, 4G, RS485, and CAN communication

• Advanced battery management communication via CAN

• Wall-mounted compact design for easier installation

Technical Highlights

Designed for high-performance energy storage systems, the GW12K-ET-L-G10 provides excellent flexibility for professional solar installers.

The inverter supports a maximum PV input voltage of 1000V with an MPPT operating range of 150V to 850V, allowing efficient operation across different solar array configurations.

Its three independent MPPTs enable separate optimization for multiple roof orientations or partially shaded arrays, increasing overall energy production throughout the day.

The inverter also supports:

• 48V low-voltage battery systems

• 24kW maximum PV input

• Three-phase 400V/380V AC output

• Smart battery charging and discharging

• Integrated protection against reverse polarity, overcurrent, short circuit, surge, and anti-islanding

• Modbus RTU and Modbus TCP/IP communication protocols for advanced monitoring

These features make the inverter suitable for both grid-connected operation and energy storage applications.

Applications

The GoodWe GW12K-ET-L-G10 is suitable for a wide range of installations, including:

• Residential solar energy storage systems

• Commercial rooftop solar projects

• Small industrial facilities

• Villas and apartment buildings

• Agricultural solar pumping systems

• Schools and educational institutions

• Office buildings

• Backup power systems

• Off-grid and hybrid solar installations

• Smart energy management projects

Why Choose the GoodWe GW12K-ET-L-G10?

Choosing the right hybrid inverter is essential for long-term system performance. The GW12K-ET-L-G10 offers several advantages:

• High conversion efficiency for greater energy savings

• Supports large solar arrays with up to 24kW PV input

• Compatible with modern LiFePO4 battery technology

• Three MPPTs improve power generation from complex roof layouts

• Reliable outdoor operation with an IP66-rated enclosure

• Advanced monitoring and remote management options

• Comprehensive built-in electrical protections

• Low-voltage battery design for improved safety

• Trusted GoodWe engineering and global product quality

It is an excellent solution for users seeking efficient solar energy production, reliable battery backup, and intelligent energy management.
