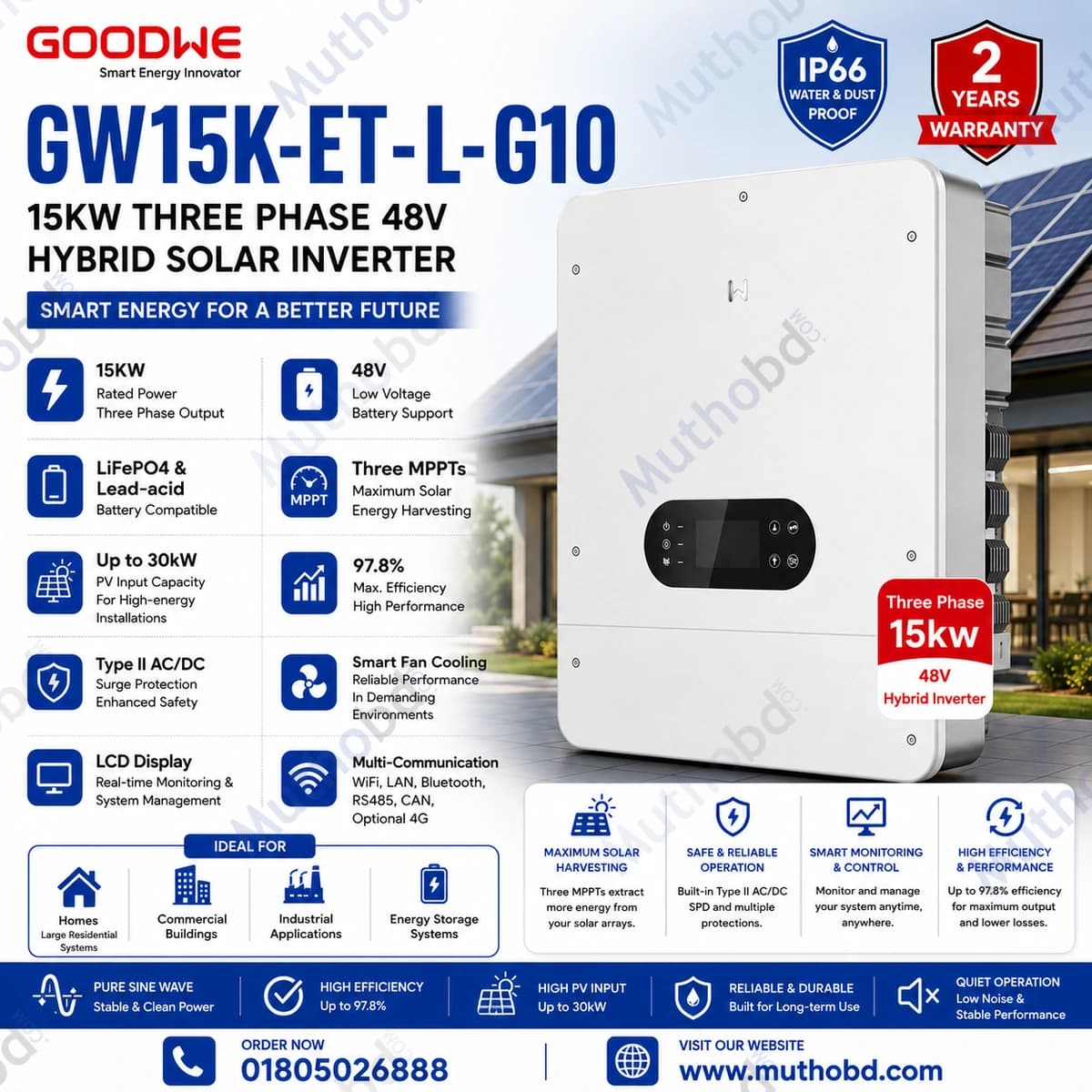

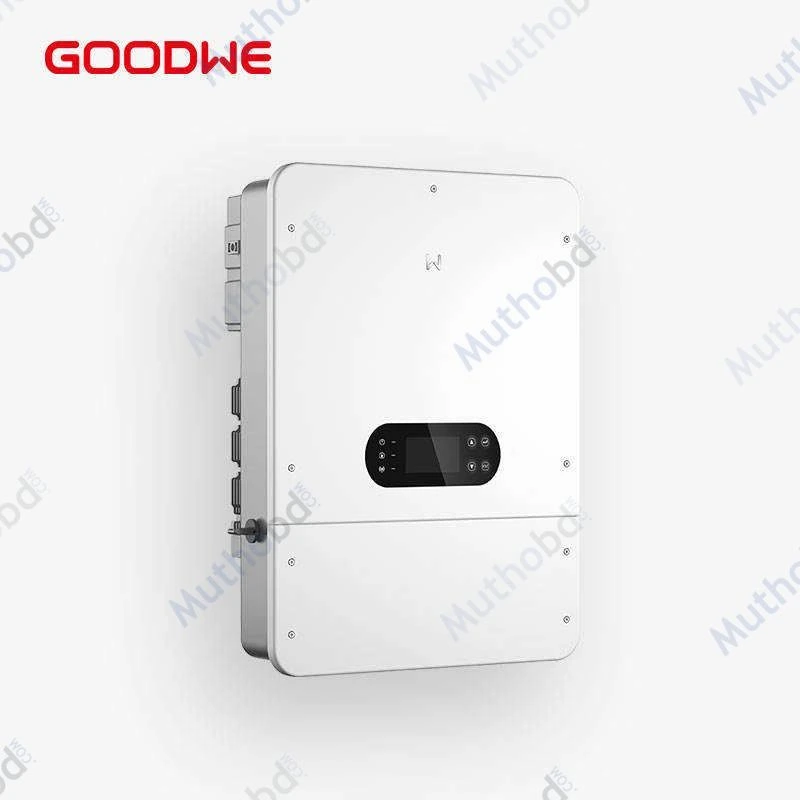

GoodWe GW15K-ET-L-G10 15KW Three Phase 48V Hybrid Solar Inverter
In Stock
Key Features
15KW three-phase hybrid inverter for large residential and commercial solar systems.
Supports 48V LiFePO4 and lead-acid battery banks.
Up to 30kW PV input capacity for high-energy solar installations.
Three independent MPPTs maximize solar energy harvesting.
High conversion efficiency of up to 97.8%.
Smart fan cooling ensures reliable performance in demanding environments.
IP66-rated enclosure for dependable indoor and outdoor installation.
Built-in Type II AC/DC surge protection and comprehensive safety features.
Intelligent monitoring via WiFi, LAN, Bluetooth, RS485, CAN, and optional 4G.
LCD display for real-time monitoring and system management.
WhatsApp+880 1805 026888
Payment Option:
Payment options will be updated soon.
Product URL: https://www.muthobd.com/product/good-we-gw15-k-et-l-g10-15-kw-three-phase-48-v-hybrid-solar-inverter
Specification
| Brand | GoodWe |
|---|---|
| Model | GW15K-ET-L-G10 |
| Series | ET LV Series |
| Product Type | Three Phase Hybrid Solar Inverter |
| Inverter Type | Low Voltage Energy Storage Inverter |
| Rated Output Power | 15KW |
| Output Type | Three Phase |
| Battery Type | LiFePO4 (LFP) / Lead-acid |
| Battery Voltage | 48V DC |
| Application | Residential, Commercial & Industrial Solar Systems |
| Display | LCD |
| Communication | WiFi, LAN, Bluetooth, 4G, RS485, CAN |
| Protection Rating | IP66 |
| Mounting Method | Wall Mounted |
| Warranty | 5 Years |
| Country of Origin | China |
| Specification | Value |
|---|---|
| Battery Type | LiFePO4 (LFP) / Lead-acid |
| Nominal Battery Voltage | 48V |
| Battery Voltage Range | 40–60V |
| Number of Battery Inputs | 2 |
| Maximum Continuous Charging Current | 165A + 165A |
| Maximum Continuous Discharging Current | 165A + 165A |
| Specification | Value |
|---|---|
| Maximum PV Input Power | 30kW |
| Maximum Input Voltage | 1000V |
| MPPT Operating Voltage Range | 150–850V |
| Start-up Voltage | 180V |
| Nominal Input Voltage | 620V |
| Number of MPPTs | 3 |
| Number of Strings per MPPT | 1 / 1 / 1 |
| Maximum MPPT Input Current | 20A / 20A / 20A |
| Maximum MPPT Short Circuit Current | 26A / 26A / 26A |
| Specification | Value |
|---|---|
| Rated AC Output Power | 15kW |
| Rated AC Voltage | 400 / 380V, 3L / N / PE |
| Rated Frequency | 50 / 60Hz |
| Backup Output Power | 15kVA |
| Voltage Range | 170–290V |
| Specification | Value |
|---|---|
| Maximum Efficiency | 97.8% |
| European Efficiency | 97.3% |
| MPPT Efficiency | 99.9% |
| Specification | Value |
|---|---|
| PV String Current Monitoring | Integrated |
| PV Insulation Resistance Detection | Integrated |
| Residual Current Monitoring | Integrated |
| Reverse Polarity Protection | Integrated |
| Anti-Islanding Protection | Integrated |
| AC Overcurrent Protection | Integrated |
| AC Short Circuit Protection | Integrated |
| AC Overvoltage Protection | Integrated |
| DC Surge Protection | Type II |
| AC Surge Protection | Type II |
| Specification | Value |
|---|---|
| Cooling Method | Smart Fan Cooling |
| Operating Temperature | -35°C to +60°C |
| Relative Humidity | 0–95% |
| Maximum Operating Altitude | 4000m |
| Noise Emission | <45dB |
| Ingress Protection | IP66 |
| Anti-Corrosion Class | C4 |
| Dimensions (W × H × D) | 756 × 551 × 258 mm |
| Weight | 49.7 kg |
Detailed description
Product Overview
The GoodWe GW15K-ET-L-G10 15KW Three Phase 48V Hybrid Solar Inverter is a powerful low-voltage energy storage solution designed for modern residential, commercial, and industrial solar power systems. As part of the advanced GoodWe ET LV Series, this inverter combines high-efficiency power conversion, intelligent battery management, and seamless grid interaction to deliver dependable renewable energy performance.
Designed for 48V LiFePO4 (LFP) and lead-acid battery systems, the GW15K-ET-L-G10 supports larger energy storage installations while maintaining excellent efficiency and reliability. With support for 30kW PV input, three independent MPPTs, and a maximum efficiency of 97.8%, it ensures maximum solar energy utilization throughout the day.
Whether you are installing a commercial rooftop solar system, an industrial backup power solution, or a high-capacity residential energy storage system, the GW15K-ET-L-G10 provides stable performance, intelligent monitoring, and comprehensive protection.
Key Features
The GoodWe GW15K-ET-L-G10 is engineered for demanding energy storage applications.
15KW three-phase hybrid inverter with 48V battery support
Compatible with LiFePO4 (LFP) and lead-acid batteries
Supports up to 30kW solar PV input
Three independent MPPTs improve energy production from multiple solar arrays
Maximum conversion efficiency of 97.8%
MPPT tracking efficiency up to 99.9%
IP66-rated enclosure suitable for outdoor environments
Smart fan cooling for continuous high-performance operation
Built-in Type II AC and DC surge protection
LCD display for convenient system monitoring
Advanced communication including WiFi, LAN, Bluetooth, RS485, CAN, and optional 4G
Technical Highlights
The GW15K-ET-L-G10 is designed to maximize energy production while providing dependable battery storage performance.
It supports a maximum PV input voltage of 1000V with an MPPT operating range of 150V–850V, allowing flexible system design for large rooftop and commercial solar installations.

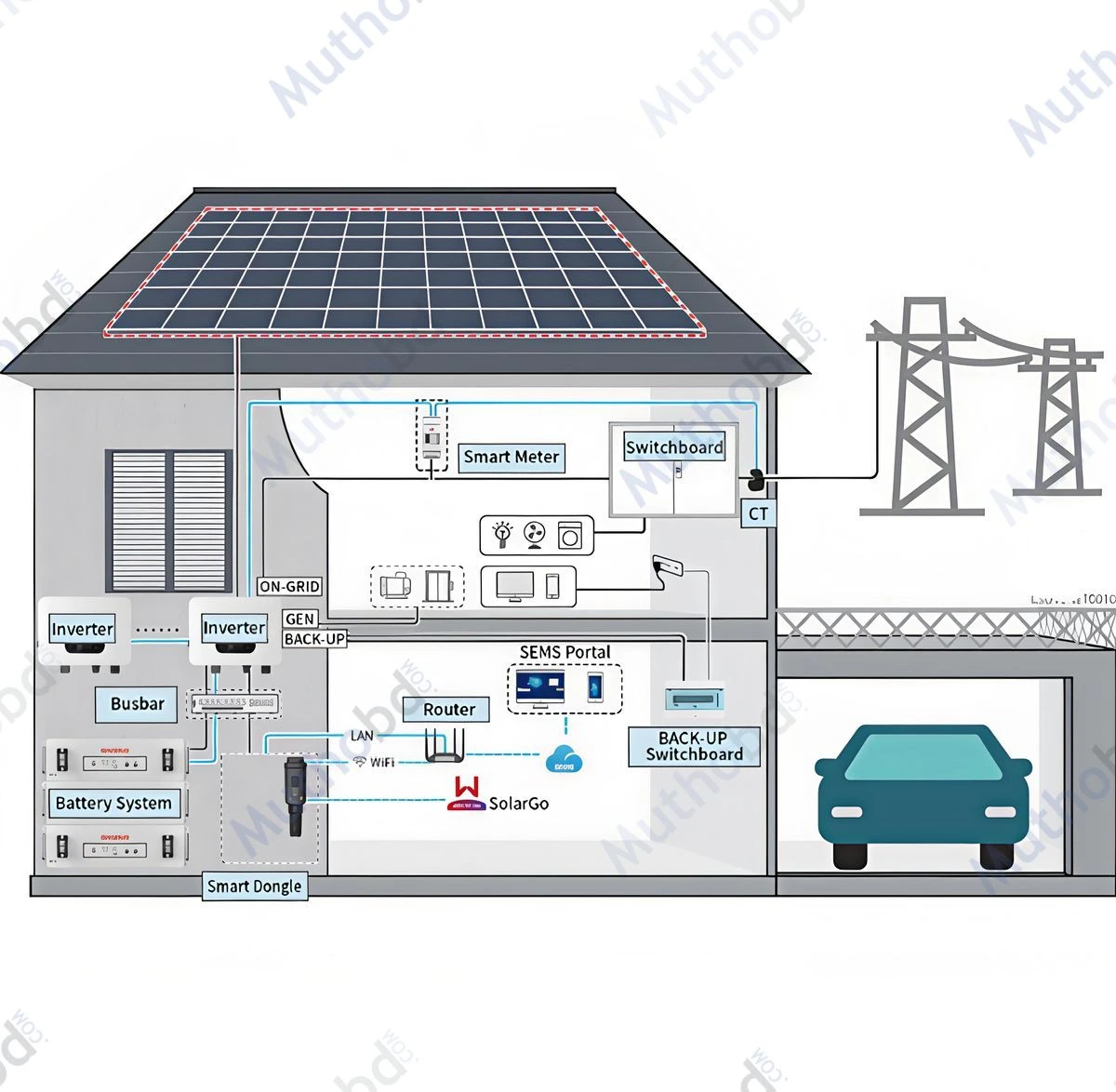

Three independent MPPT trackers optimize energy generation even when solar panels face different directions or experience partial shading. The inverter also provides seamless switching between solar generation, battery storage, and grid power to maximize self-consumption and backup capability.
Integrated safety protections include reverse polarity protection, residual current monitoring, anti-islanding protection, AC overcurrent protection, short circuit protection, and Type II surge protection for both AC and DC circuits.
Applications
The GoodWe GW15K-ET-L-G10 is ideal for:
Residential villas
Commercial buildings
Factories and warehouses
Office complexes
Agricultural solar projects
Educational institutions
Hotels and resorts
Industrial energy storage systems
Solar backup systems
Hybrid solar installations
Why Choose This Product
The GW15K-ET-L-G10 delivers an ideal combination of efficiency, flexibility, and intelligent energy management.
Its support for 48V battery systems simplifies battery integration while reducing installation costs. Three MPPTs maximize solar energy harvesting, and the high PV input capacity allows future system expansion. Built-in monitoring and multiple communication options make remote system management simple and efficient.
The IP66-rated enclosure and smart cooling system ensure reliable operation under Bangladesh's demanding weather conditions, making it a dependable choice for long-term renewable energy projects.
Why Buy from MuthoBD
Purchase the GoodWe GW15K-ET-L-G10 from MuthoBD and enjoy:
100% Original GoodWe Product
Official Manufacturer Warranty
Best Price in Bangladesh
Fast Nationwide Delivery
Professional Technical Support
Secure Online Ordering
Cash on Delivery (Where Available)
Reliable After-Sales Service
MuthoBD is a trusted online store for genuine solar inverters, batteries, solar panels, and renewable energy solutions in Bangladesh.
- The GoodWe GW15K-ET-L-G10 is a 15KW three-phase 48V hybrid solar inverter designed for residential, commercial, and industrial energy storage systems with battery backup and grid connectivity.
