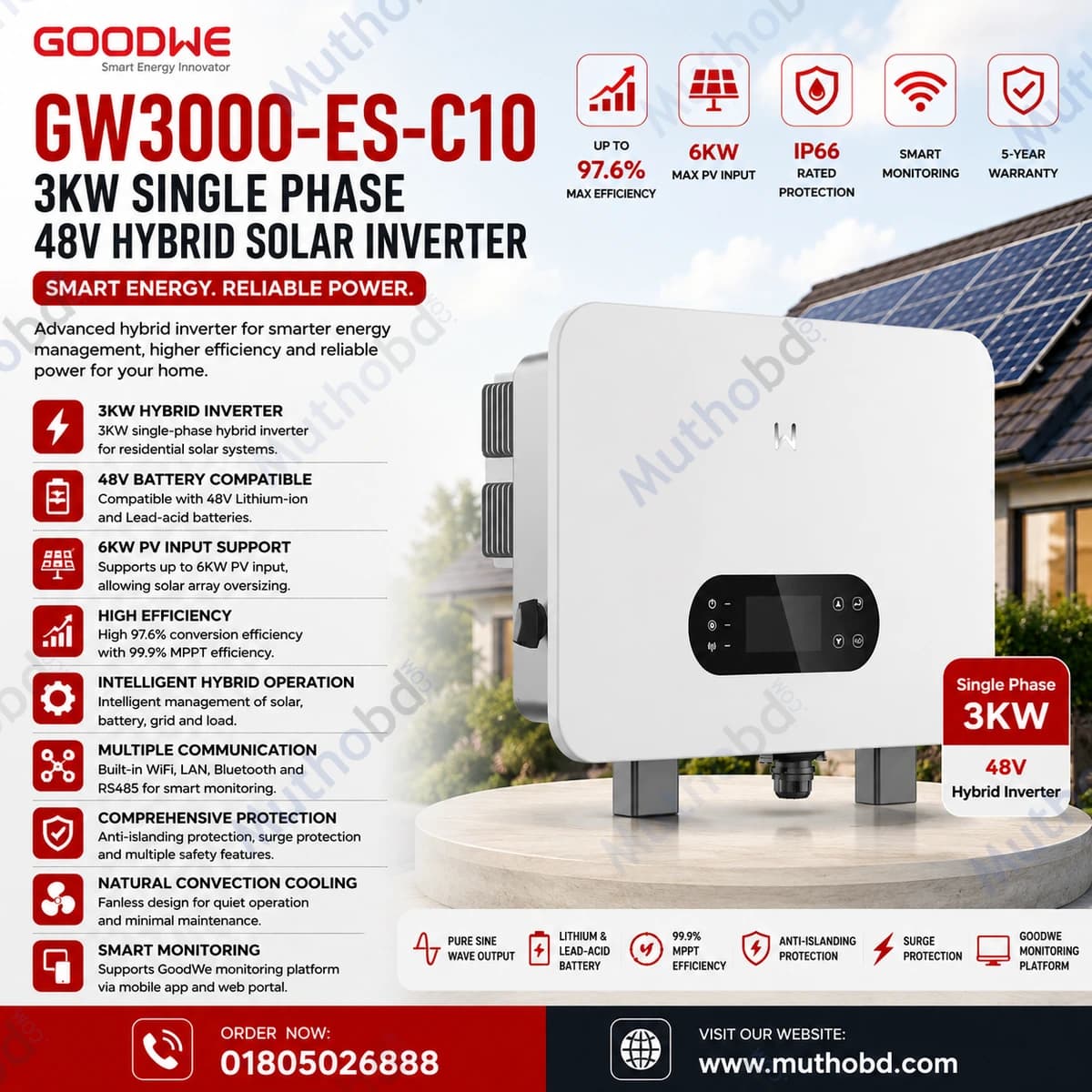

GoodWe GW3000-ES-C10 3KW Single Phase 48V Hybrid Solar Inverter
In Stock
Key Features
3KW single-phase hybrid inverter for residential solar systems.
Compatible with 48V Lithium-ion and Lead-acid batteries.
Supports up to 6KW PV input, allowing solar array oversizing.
High 97.6% conversion efficiency with 99.9% MPPT efficiency.
Intelligent hybrid operation for solar, battery, and grid management.
Built-in WiFi, LAN, Bluetooth, and RS485 for smart monitoring.
IP66-rated enclosure for reliable outdoor installation.
Comprehensive protection including anti-islanding and surge protection.
Natural convection cooling for quiet and maintenance-free operation.
Supports GoodWe monitoring platform via mobile app and web portal.
WhatsApp+880 1805 026888
Payment Option:
Payment options will be updated soon.
Product URL: https://www.muthobd.com/product/good-we-gw3000-es-c10-3-kw-single-phase-48-v-hybrid-solar-inverter
Specification
| Brand | GoodWe |
|---|---|
| Model | GW3000-ES-C10 |
| Product Type | Hybrid Solar Inverter |
| Inverter Type | Single Phase Hybrid (On-Grid + Battery Backup) |
| Application | Residential Solar Power System |
| Rated Output Power | 3000W (3KW) |
| Battery Voltage | 48V DC |
| Compatible Battery | Lithium-Ion / Lead-acid |
| Topology | Non-Isolated |
| Installation | Wall Mounted |
| Warranty | 5 Years* |
| Battery Type | Lithium-Ion / Lead-acid |
|---|---|
| Battery Voltage Range | 40V–60V |
| Number of Battery Inputs | 1 |
| Maximum Continuous Charging Current | 70A |
| Maximum Continuous Discharging Current | 70A |
| Maximum Charging Power | 3.0kW |
| Maximum Discharging Power | 3.3kW |
| Maximum PV Input Power | 6.0kW |
|---|---|
| Maximum PV Input Voltage | 600V |
| MPPT Operating Voltage Range | 60V–550V |
| Start-up Voltage | 58V |
| Nominal PV Voltage | 360V |
| Number of MPPT Trackers | 1 |
| Strings per MPPT | 1 |
| Maximum Input Current | 20A |
| Maximum Short Circuit Current | 26A |
| Rated Output Power | 3000W |
|---|---|
| Rated Apparent Power | 3.0kVA |
| Output Voltage | 220V / 230V / 240V |
| Grid Frequency | 50Hz / 60Hz |
| Maximum AC Output Current | 15A |
| Rated Backup Power | 3.0kVA |
|---|---|
| Output Voltage | 220V / 230V / 240V |
| Output Frequency | 50Hz / 60Hz |
| Maximum Efficiency | 97.6% |
|---|---|
| European Efficiency | 96.2% |
| MPPT Efficiency | 99.9% |
| Battery to AC Efficiency | 95.5% |
| PV String Current Monitoring | Integrated |
|---|---|
| PV Insulation Resistance Detection | Integrated |
| Residual Current Monitoring | Integrated |
| PV Reverse Polarity Protection | Integrated |
| Battery Reverse Polarity Protection | Integrated |
| Anti-Islanding Protection | Integrated |
| AC Overcurrent Protection | Integrated |
| AC Short Circuit Protection | Integrated |
| AC Overvoltage Protection | Integrated |
| DC Switch | Integrated |
| DC Surge Protection | Type III |
| AC Surge Protection | Type III |
| Remote Shutdown | Integrated |
| AFCI | Optional |
| Rapid Shutdown | Optional |
| Cooling Method | Natural Convection |
|---|---|
| Dimensions (W × H × D) | 560 × 415 × 204 mm |
| Weight | 14.5 kg |
| Operating Temperature | -35°C to +60°C |
|---|---|
| Relative Humidity | 0–95% |
| Maximum Operating Altitude | 3000 m |
| Protection Rating | IP66 |
| User Interface | LCD, WLAN + APP |
|---|---|
| Communication | RS485, WiFi, LAN, Bluetooth |
| BMS Communication | CAN |
| Communication Protocol | Modbus RTU / Modbus TCP |
Detailed description
GoodWe is recognized worldwide for developing reliable solar inverters and energy storage solutions. The GoodWe GW3000-ES-C10 3KW Single Phase 48V Hybrid Solar Inverter is engineered for homeowners who want dependable backup power, intelligent energy management, and maximum utilization of solar energy.
This hybrid inverter combines solar generation, battery storage, and utility power into one intelligent system. Supporting both 48V Lithium-ion and Lead-acid batteries, it offers excellent flexibility for new and existing solar installations. With support for up to 6KW of photovoltaic input, homeowners can install larger solar arrays to maximize daytime energy production.
The inverter features 97.6% maximum conversion efficiency and 99.9% MPPT efficiency, ensuring excellent energy harvesting while minimizing conversion losses. Built-in WiFi, LAN, Bluetooth, and RS485 communication enable real-time monitoring and remote system management through the GoodWe monitoring platform.
Its IP66-rated enclosure, natural convection cooling, and comprehensive safety protections make the GW3000-ES-C10 a dependable solution for Bangladesh's climate and residential power requirements.
Key Features
Intelligent Hybrid Energy Management
Automatically balances energy from solar panels, batteries, and the utility grid to maximize self-consumption while ensuring uninterrupted backup power during outages.
High Solar Utilization
Supports up to 6KW PV input, allowing larger solar arrays than the inverter's rated output to increase energy production throughout the day.
Flexible Battery Compatibility
Designed to work with 48V Lithium-ion and Lead-acid batteries, giving users flexibility when selecting an energy storage solution.
Smart Monitoring
Integrated WiFi, Bluetooth, LAN, and RS485 communication provide real-time monitoring, system diagnostics, firmware updates, and performance tracking via the GoodWe mobile app.
Reliable Protection
Multiple integrated protection functions safeguard both the inverter and connected equipment, ensuring safe long-term operation.
Quiet & Durable Design
Natural convection cooling eliminates cooling fan noise while reducing maintenance requirements. The IP66 enclosure provides excellent resistance against dust and water.
Technical Highlights
3KW hybrid solar inverter
Single-phase output
48V battery system
Supports Lithium-ion & Lead-acid batteries
6KW PV input capacity
600V maximum PV voltage
Single MPPT
97.6% maximum efficiency
99.9% MPPT efficiency
WiFi + LAN + Bluetooth
LCD display
CAN BMS communication
IP66 protection
Natural convection cooling
Wall-mounted installation
Applications
Ideal for:
Residential homes
Apartments
Villas
Small offices
Retail shops
Backup power systems
Hybrid solar installations
Battery storage systems
Areas with frequent load shedding
Why Choose This Product
The GoodWe GW3000-ES-C10 offers an excellent combination of intelligent energy management, reliable backup power, and high solar conversion efficiency. It enables homeowners to reduce electricity costs while maintaining uninterrupted power during outages.
Its advanced communication features, robust protection system, and durable IP66-rated construction make it a long-term investment for residential renewable energy systems.
Why Buy from MuthoBD
Purchase the GoodWe GW3000-ES-C10 from MuthoBD.com and enjoy:
100% Genuine GoodWe Products
Competitive Prices in Bangladesh
Fast Nationwide Delivery
Secure Online Ordering
Professional Technical Consultation
Genuine Manufacturer Warranty
Reliable After-Sales Service
Expert Solar System Support
- The GoodWe GW3000-ES-C10 is a 3KW single-phase hybrid solar inverter designed for residential energy storage systems. It manages solar panels, batteries, and grid power while providing backup electricity during outages.
