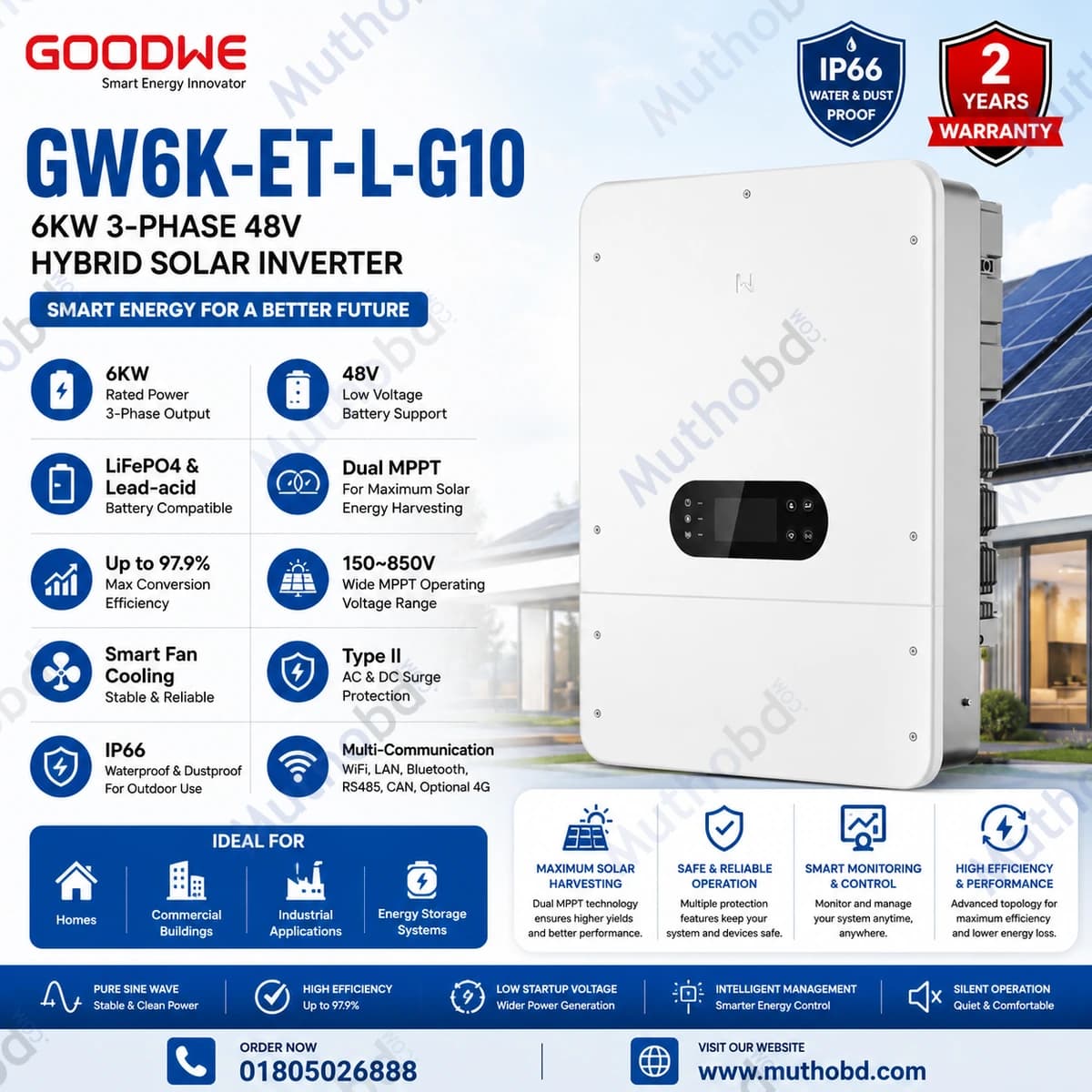

GoodWe GW6K-ET-L-G10 6KW 3-Phase 48V Hybrid Solar Inverter
In Stock
Key Features
6KW three-phase hybrid inverter with 48V low-voltage battery support
Compatible with LiFePO4 and lead-acid battery systems
Dual MPPT design for improved solar energy harvesting
Up to 97.9% maximum conversion efficiency
Wide 150–850V MPPT operating voltage range
Smart fan cooling for stable long-term operation
Built-in Type II AC & DC surge protection
IP66 waterproof and dustproof enclosure for outdoor installation
Supports WiFi, LAN, Bluetooth, RS485, CAN and optional 4G communication
Ideal for residential, commercial, and energy storage applications
WhatsApp+880 1805 026888
Payment Option:
Payment options will be updated soon.
Product URL: https://www.muthobd.com/product/good-we-gw6-k-et-l-g10-6-kw-3-phase-48-v-hybrid-solar-inverter
Specification
| Brand | GoodWe |
|---|---|
| Model | GW6K-ET-L-G10 |
| Product Type | Three Phase Hybrid Solar Inverter |
| Series | ET LV Series |
| Inverter Type | Low Voltage Energy Storage Inverter |
| Phase | Three Phase |
| Battery Voltage | 48V |
| Battery Type | LiFePO4 (LFP) / Lead-acid |
| Mounting Method | Wall Mounted |
| Country of Origin | Jiangsu, China |
| Specification | Value |
|---|---|
| Max. PV Input Power | 12kW |
| Max. Input Voltage | 1000V |
| MPPT Voltage Range | 150–850V |
| Start-up Voltage | 180V |
| Nominal Input Voltage | 620V |
| Number of MPPTs | 2 |
| Strings per MPPT | 1 / 1 |
| Max. MPPT Current | 20A / 20A |
| Max. MPPT Short Circuit Current | 26A / 26A |
| Specification | Value |
|---|---|
| Battery Voltage | 48V |
| Battery Voltage Range | 40–60V |
| Number of Battery Inputs | 1 |
| Max. Continuous Charging Current | 135A |
| Max. Continuous Discharging Current | 135A |
| Specification | Value |
|---|---|
| Rated Output Power | 6kW |
| Nominal Output Voltage | 400 / 380V, 3L / N / PE |
| Output Current | 8.7A |
| Nominal Frequency | 50 / 60Hz |
| Backup Output Power | 6kVA |
| Backup Voltage Range | 170–290V |
| Specification | Value |
|---|---|
| Maximum Efficiency | 97.9% |
| European Efficiency | 97.0% |
| MPPT Efficiency | 99.9% |
| Specification | Value |
|---|---|
| PV Reverse Polarity Protection | Integrated |
| PV Insulation Resistance Detection | Integrated |
| Residual Current Monitoring | Integrated |
| Anti-Islanding Protection | Integrated |
| AC Overcurrent Protection | Integrated |
| AC Short Circuit Protection | Integrated |
| AC Overvoltage Protection | Integrated |
| DC Surge Protection | Type II |
| AC Surge Protection | Type II |
| Specification | Value |
|---|---|
| Cooling Method | Smart Fan Cooling |
| Display | LCD |
| Communication | WiFi, LAN, Bluetooth, 4G, RS485, CAN |
| Communication Protocols | Modbus RTU, Modbus TCP/IP, SunSpec Modbus RTU |
| Operating Temperature | -35°C to +60°C |
| Relative Humidity | 0–95% |
| Maximum Altitude | 4000m |
| Noise Level | <45dB |
| Protection Rating | IP66 |
| Anti-Corrosion Class | C4 |
| Dimensions | 756 × 551 × 258 mm |
| Weight | 45.3 kg |
Detailed description
The GoodWe GW6K-ET-L-G10 6KW Three Phase 48V Hybrid Solar Inverter is part of the advanced ET LV Series, designed for modern residential and light commercial solar energy storage systems. Supporting both LiFePO4 and lead-acid batteries, this low-voltage hybrid inverter provides an efficient and reliable solution for maximizing solar energy utilization while ensuring uninterrupted backup power.
With a maximum efficiency of 97.9%, dual MPPT technology, and a wide MPPT voltage range of 150V to 850V, the inverter captures more solar energy throughout the day, even under changing weather conditions. Its three-phase output makes it ideal for homes, offices, farms, and commercial buildings requiring balanced power distribution.
Key Features
The GoodWe GW6K-ET-L-G10 combines intelligent energy management with robust hardware to deliver outstanding performance.
Key advantages include:
6KW three-phase hybrid inverter with integrated battery management
48V low-voltage battery compatibility
Supports LiFePO4 and lead-acid batteries
Dual MPPT with independent tracking
97.9% maximum conversion efficiency
Smart backup power functionality
WiFi, LAN, Bluetooth, RS485, CAN, and optional 4G communication
IP66-rated enclosure for indoor and outdoor installation
Smart LCD interface for easy monitoring
Technical Highlights
The inverter supports up to 12kW PV input power, allowing larger solar arrays while maintaining excellent conversion efficiency.
Its advanced protection system includes:
PV reverse polarity protection
Residual current monitoring
PV insulation monitoring
Anti-islanding protection
AC overcurrent protection
AC short circuit protection
AC overvoltage protection
Type II DC surge protection
Type II AC surge protection
The smart fan cooling system maintains optimal operating temperatures while ensuring quiet operation below 45dB.
Applications
The GoodWe GW6K-ET-L-G10 is suitable for a wide range of solar applications, including:
Residential solar energy storage
Smart homes
Villas
Commercial buildings
Offices
Small industries
Agricultural facilities
Backup power systems
Off-peak energy storage
Net metering compatible solar systems
Its three-phase output ensures stable power distribution for properties with higher electrical demand.
Why Choose This Product
The GW6K-ET-L-G10 offers an excellent balance of efficiency, safety, and intelligent energy management. Dual MPPT technology increases solar production, while support for both battery charging and backup operation makes it a complete hybrid solution.
The inverter's IP66-rated enclosure and C4 anti-corrosion protection allow installation in demanding outdoor environments. Advanced communication options also provide convenient remote monitoring and system management through compatible platforms.
Why Buy from MuthoBD
MuthoBD supplies genuine GoodWe hybrid solar inverters for customers across Bangladesh. When you purchase from MuthoBD, you receive:
Original GoodWe products
Competitive price in Bangladesh
Official warranty support
Professional customer service
Nationwide delivery
Fast shipping
Secure online ordering
Reliable after-sales assistance
Whether you are building a new solar power system or upgrading an existing installation, the GoodWe GW6K-ET-L-G10 is a dependable solution for long-term energy independence.
- It is a 6KW three-phase hybrid solar inverter designed for 48V battery energy storage systems using LiFePO4 or lead-acid batteries.
