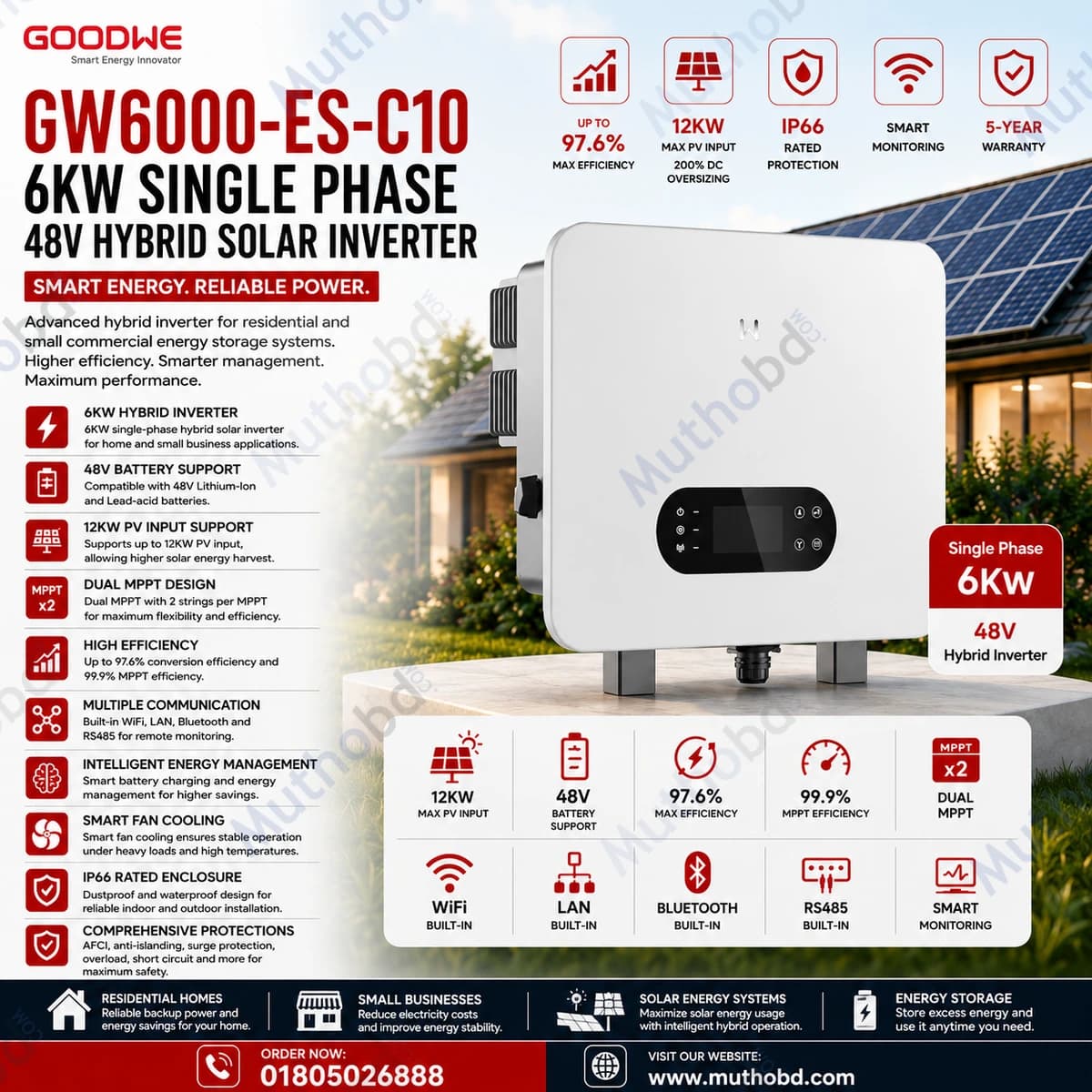

GoodWe GW6000-ES-C10 6KW Single Phase 48V Hybrid Solar Inverter
In Stock
Key Features
6KW single-phase hybrid solar inverter with 48V battery support.
Compatible with Lithium-Ion and Lead-acid batteries.
Supports up to 12KW PV input for higher solar energy production.
Dual MPPT design with 2 strings per MPPT for maximum flexibility.
High 97.6% conversion efficiency and 99.9% MPPT efficiency.
Built-in WiFi, LAN, Bluetooth, and RS485 for remote monitoring.
Intelligent battery charging and energy management system.
IP66-rated enclosure suitable for indoor and outdoor installation.
Smart fan cooling for stable operation under heavy loads.
Comprehensive safety protections including AFCI, surge protection, and anti-islanding.
WhatsApp+880 1805 026888
Payment Option:
Payment options will be updated soon.
Product URL: https://www.muthobd.com/product/good-we-gw6000-es-c10-6-kw-single-phase-48-v-hybrid-solar-inverter
Specification
| Brand | GoodWe |
|---|---|
| Model | GW6000-ES-C10 |
| Product Type | Hybrid Solar Inverter |
| Inverter Type | Single Phase Hybrid (On-Grid + Battery Backup) |
| Application | Residential Solar Power System |
| Rated Output Power | 6000W (6KW) |
| Maximum Output Power | 6600W |
| Battery Voltage | 48V DC |
| Compatible Battery | Lithium-Ion / Lead-acid |
| Topology | Non-Isolated |
| Installation | Wall Mounted |
| Warranty | 5 Years* |
| Battery Type | Lithium-Ion / Lead-acid |
|---|---|
| Battery Voltage Range | 40V–60V |
| Number of Battery Inputs | 1 |
| Maximum Continuous Charging Current | 140A |
| Maximum Continuous Discharging Current | 140A |
| Maximum Charging Power | 6.0kW |
| Maximum Discharging Power | 6.6kW |
| Maximum PV Input Power | 12.0kW |
|---|---|
| Maximum PV Input Voltage | 600V |
| MPPT Operating Voltage Range | 60V–550V |
| Start-up Voltage | 58V |
| Nominal PV Input Voltage | 360V |
| Number of MPPT Trackers | 2 |
| Number of Strings per MPPT | 2 |
| Maximum Input Current per MPPT | 32A |
| Maximum Short Circuit Current per MPPT | 48A |
| Rated Output Power | 6000W |
|---|---|
| Rated Apparent Power | 6.0kVA |
| Maximum Active Power | 6.6kW |
| Maximum Apparent Power | 6.6kVA |
| Output Voltage | 220V / 230V / 240V |
| Grid Frequency | 50Hz / 60Hz |
| Maximum AC Output Current | 30A |
| Rated Backup Power | 6.0kVA |
|---|---|
| Maximum Backup Power | 6.6kVA |
| Output Voltage | 220V / 230V / 240V |
| Output Frequency | 50Hz / 60Hz |
| Maximum Efficiency | 97.6% |
|---|---|
| European Efficiency | 96.2% |
| MPPT Efficiency | 99.9% |
| Battery to AC Efficiency | 95.5% |
| Feature | Description |
|---|---|
| PV String Current Monitoring | Integrated |
| PV Insulation Resistance Detection | Integrated |
| Residual Current Monitoring | Integrated |
| PV Reverse Polarity Protection | Integrated |
| Battery Reverse Polarity Protection | Integrated |
| Anti-Islanding Protection | Integrated |
| AC Overcurrent Protection | Integrated |
| AC Short Circuit Protection | Integrated |
| AC Overvoltage Protection | Integrated |
| DC Switch | Integrated |
| Remote Shutdown | Integrated |
| DC Surge Protection | Type III |
| AC Surge Protection | Type III |
| AFCI | Integrated |
| Rapid Shutdown | Optional |
| Cooling Method | Smart Fan Cooling |
|---|---|
| Dimensions (W × H × D) | 560 × 444.5 × 226 mm |
| Weight | 29 kg |
| Operating Temperature | -35°C to +60°C |
|---|---|
| Relative Humidity | 0–95% |
| Maximum Operating Altitude | 3000 m |
| Protection Rating | IP66 |
| User Interface | LCD, WLAN + APP |
|---|---|
| Communication | RS485, WiFi, LAN, Bluetooth |
| BMS Communication | CAN |
| Communication Protocol | Modbus RTU / Modbus TCP |
Detailed description
The GoodWe GW6000-ES-C10 6KW Single Phase 48V Hybrid Solar Inverter is a premium residential energy storage solution designed to maximize solar power generation, optimize battery performance, and provide uninterrupted backup power during grid failures. Built with GoodWe's advanced hybrid inverter technology, this model is ideal for homeowners seeking greater energy independence and reduced electricity costs.
Supporting both 48V Lithium-Ion and Lead-acid batteries, the GW6000-ES-C10 offers exceptional flexibility for new and existing solar installations. With a maximum PV input of 12KW, users can oversize their solar array to capture more energy throughout the day, improving system performance even during low sunlight conditions.
The inverter utilizes dual MPPT technology with two strings per MPPT, enabling independent tracking of multiple solar arrays. This design significantly increases energy harvest from roofs with different orientations or areas affected by partial shading. Combined with a maximum efficiency of 97.6% and an MPPT efficiency of 99.9%, the inverter delivers outstanding energy conversion while minimizing power losses.
Integrated WiFi, Bluetooth, LAN, and RS485 communication allow users to monitor solar production, battery status, energy consumption, and system performance through the GoodWe monitoring platform. The IP66-rated enclosure and smart fan cooling system ensure reliable operation in Bangladesh's demanding environmental conditions.
Key Features
Powerful 6KW Hybrid Performance
Delivering 6000W of rated output power with support for battery backup, the GW6000-ES-C10 is suitable for medium to large residential solar systems requiring dependable day and night power.
12KW Solar PV Capacity
The inverter supports up to 12KW of photovoltaic input, allowing significant DC oversizing for increased daily energy generation and improved return on investment.
Dual MPPT Technology
Two independent MPPT trackers with two strings per tracker maximize solar energy production by optimizing performance across multiple roof sections.
Intelligent Battery Management
Compatible with both 48V Lithium-Ion and Lead-acid batteries, the inverter provides advanced charging control and efficient battery utilization for longer battery life.
Smart Remote Monitoring
Built-in WiFi, LAN, Bluetooth, and RS485 communication enable real-time monitoring, firmware updates, remote diagnostics, and energy reporting through the GoodWe mobile application.
Advanced Safety Protection
Integrated anti-islanding, surge protection, AFCI, reverse polarity protection, remote shutdown, and comprehensive monitoring functions provide safe and reliable long-term operation.
Technical Highlights
6KW Single Phase Hybrid Solar Inverter
48V Battery System
Supports Lithium-Ion & Lead-acid Batteries
12KW Maximum PV Input
Dual MPPT with 2 Strings per MPPT
600V Maximum PV Voltage
97.6% Maximum Efficiency
99.9% MPPT Efficiency
Smart Fan Cooling
LCD Display
WiFi, LAN, Bluetooth & RS485
CAN BMS Communication
IP66 Weatherproof Design
Wall-Mounted Installation
Applications
Ideal for:
Residential Homes
Villas
Duplex Houses
Apartments
Home Energy Storage Systems
Hybrid Solar Installations
Backup Power Systems
Small Offices
Retail Shops
Areas with Frequent Load Shedding
Why Choose This Product
The GoodWe GW6000-ES-C10 offers an excellent balance of performance, efficiency, and intelligent energy management. Its high PV input capacity, dual MPPT technology, advanced battery compatibility, and comprehensive protection features make it an ideal solution for homeowners looking to maximize solar energy usage while ensuring uninterrupted power during utility outages.
With robust construction, smart monitoring capabilities, and industry-leading efficiency, this inverter delivers reliable long-term performance and excellent value for residential solar energy systems.
Why Buy from MuthoBD
100% Genuine GoodWe Products
Best Price in Bangladesh
Fast Nationwide Delivery
Professional Solar Consultation
Expert Installation Support
Genuine Manufacturer Warranty
Secure Online Shopping
Reliable After-Sales Service
- The GoodWe GW6000-ES-C10 is a 6KW single-phase 48V hybrid solar inverter designed for residential solar energy systems with battery storage and backup power capabilities.
