Luminous EVO D 700 600VA 504W 12V IPS Inverter for Home Backup

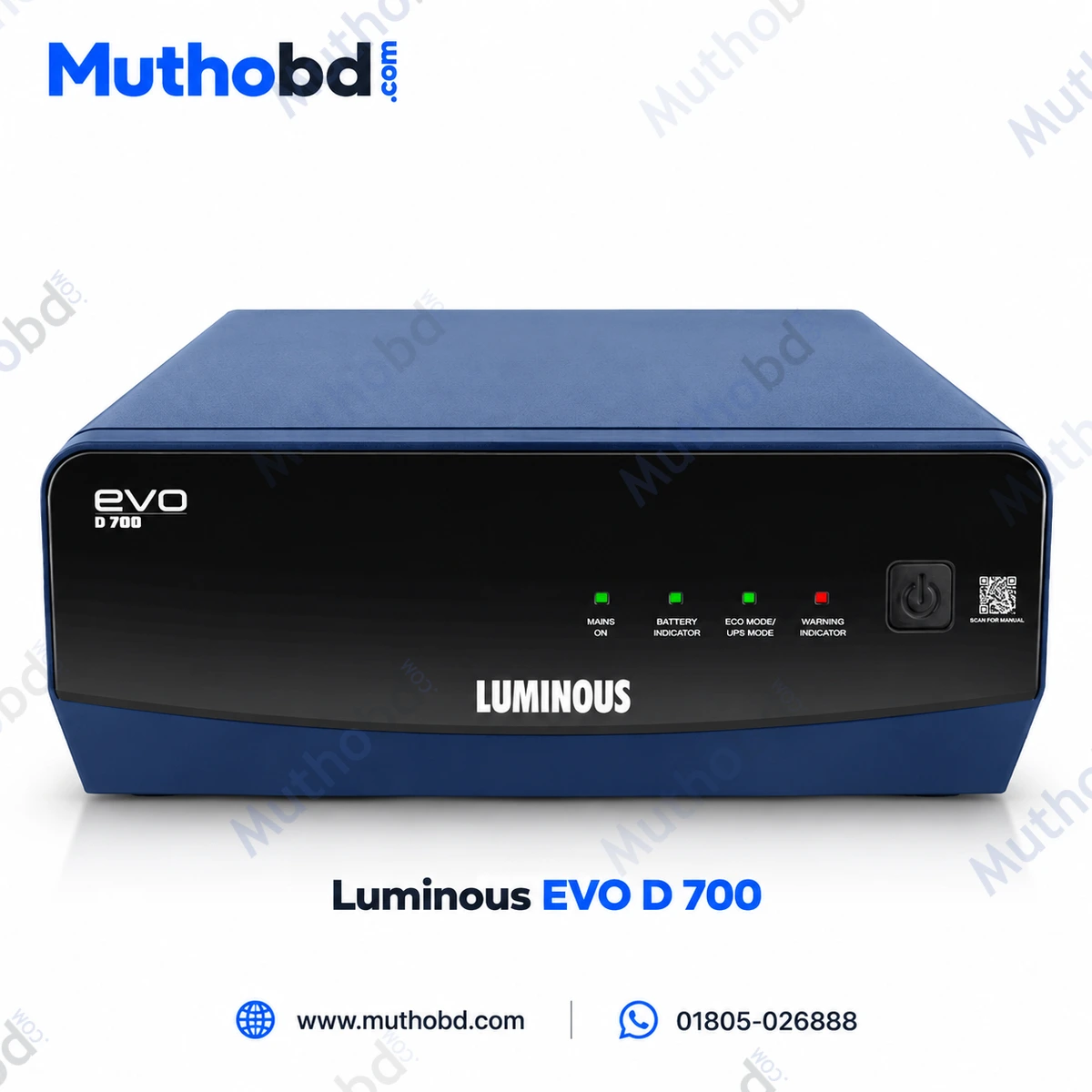

Luminous EVO D 700 600VA IPS Inverter

The Luminous EVO D 700 is a home backup inverter designed to provide power to compatible essential appliances during electricity interruptions. With a rated capacity of 600VA, an output power of 504W, and a 12V battery system, it can be considered for smaller home, office, and shop backup applications.

600VA Capacity with 504W Output

The EVO D 700 offers a stated 600VA capacity and 504W output. It is suitable for selected low-power appliances when their combined running load remains within the inverter's rated output.

Before connecting appliances, calculate their total wattage and consider starting currents. High-power appliances such as air conditioners, water heaters, and large pumps are not suitable unless the manufacturer's specifications explicitly support them.

12V Single-Battery System

This inverter is designed for a 12V battery system and supports one battery. Choose a compatible battery according to the manufacturer's charging requirements and your desired backup duration.

Backup time depends on battery capacity, battery condition, connected load, and inverter efficiency. A higher-capacity compatible battery may provide longer backup, but it does not increase the inverter's rated output power.

Modified Square Wave Technology

The Luminous EVO D 700 uses modified square wave technology according to the available manufacturer information. It can power suitable compatible appliances, but it is not a pure sine wave inverter.

Check appliance compatibility before connecting sensitive electronics or equipment with motors, transformers, or specialized power supplies.

Low-Voltage Fast Charging

The EVO D series includes low-voltage fast charging technology designed to help charge the battery when the AC input voltage is low. This can be useful in locations where mains voltage fluctuates.

Actual charging performance depends on the incoming voltage and the inverter's operating conditions.

Tri-Color LED Indicators

The inverter features tri-color LED indicators that help users understand the battery charging and operating status. This offers a simple way to check basic operating information without requiring a digital display.

Built-In Protection Features

Available EVO D series specifications list protections for conditions such as overload, short circuit, overcharge, deep discharge, low battery, and overheating. These features help protect the inverter and connected system during common fault conditions.

Always follow the manufacturer's installation instructions and use suitable wiring, fuses, and battery connections.

Suitable Applications

Depending on the connected load, the Luminous EVO D 700 may be considered for:

• LED lights

• Compatible ceiling fans

• Television

• Wi-Fi router

• Other low-power household electronics

• Small-office and shop backup

The combined load should remain within the 504W output rating, with additional consideration for starting current.
