What is the Solis S5-GR3P10K inverter?

The Solis S5-GR3P10K is a 10kW three-phase on-grid solar inverter designed to convert solar panel electricity into AC power for a compatible grid-connected system.

What is the maximum PV input power?

The supplied product specifications state a maximum PV input power of 15kW.

What is the maximum efficiency of this inverter?

Its stated maximum efficiency is 98.5%.

How many MPPT trackers does the Solis S5-GR3P10K have?

It features two MPPT trackers, according to the supplied specifications.

Is the Solis S5-GR3P10K approved for net metering in Bangladesh?

The supplied information states that it is SREDA-approved for net metering. Confirm current approval and utility requirements before installation.

Does this inverter support zero-export operation?

Yes, the supplied specifications include export power control for zero-export operation. Compatible metering or additional equipment may be required.

What is AFCI protection?

AFCI stands for Arc-Fault Circuit Interrupter. It helps detect certain electrical arc faults that may pose a fire risk.

Is the Solis S5-GR3P10K suitable for outdoor installation?

Its IP66 protection rating supports appropriate outdoor installation when the manufacturer's mounting and environmental requirements are followed.

Can this inverter provide battery backup during a power outage?

It is an on-grid inverter and should not be treated as a battery-backup system. A suitable hybrid or backup inverter is needed when backup power is required.

What is the warranty period?

The supplied product information states a 5-year official warranty, subject to the applicable warranty terms.

Is this inverter suitable for commercial solar installations?

It can be considered for suitable commercial installations with a compatible three-phase grid connection and appropriately designed solar array.

Where can I buy the Solis S5-GR3P10K in Bangladesh?

You can check product availability and pricing at MuthoBD.com.

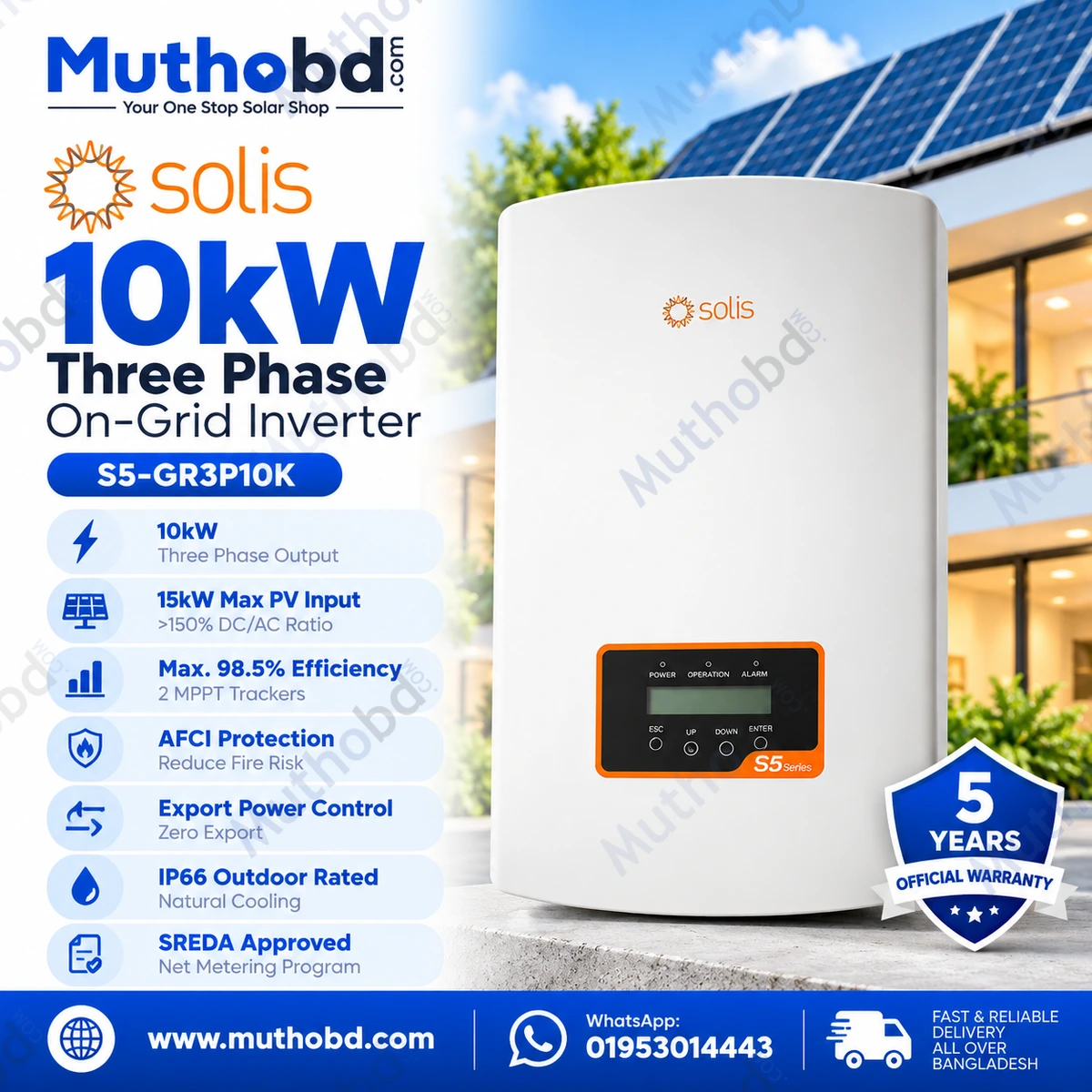

Solis S5-GR3P10K 10kW Three Phase On-Grid Solar Inverter with Dual MPPT

Name: Solis S5-GR3P10K 10kW Three Phase On-Grid Solar Inverter with Dual MPPT
Brand: solis
Price: 220000 BDT
Availability: InStock

In Stock

৳ 220,000৳ 229,500

Key Features

10kW Three-Phase Output: Designed for compatible residential, commercial and business solar installations.
15kW Maximum PV Input: Supports a suitably designed solar panel array with a higher DC capacity than the inverter's rated AC output.
98.5% Maximum Efficiency: Designed for efficient conversion of solar energy into usable AC electricity.
Dual MPPT Technology: Two MPPT trackers help optimize solar energy generation from compatible PV strings.
SREDA Approval for Net Metering: Suitable for consideration in eligible net metering projects in Bangladesh, subject to current approval and utility requirements.
AFCI Safety Protection: Helps detect certain arc faults and reduce associated electrical fire risks.
Zero-Export Power Control: Helps control electricity exported to the utility grid when configured with compatible equipment.
IP66 Protection Rating: Provides dust-tight protection and resistance to powerful water jets under specified test conditions.
Natural Cooling System: Supports heat dissipation without conventional cooling fans.
Three-Phase Grid Compatibility: Designed for suitable three-phase electrical installations.
5-Year Official Warranty: Warranty coverage is subject to the manufacturer's official terms.

WhatsApp Phone Call

+880 1805 026888

Payment Option:

Payment options will be updated soon.

Quantity :

Specification

Specification	Details
Brand	Solis
Model	S5-GR3P10K
Product Type	On-Grid Solar Inverter
Rated Output Power	10kW
Phase	Three-Phase
Maximum PV Input Power	15kW
DC/AC Ratio	Greater than 150%
Maximum Efficiency	98.5%
MPPT Trackers	2
Grid Connection	On-Grid
Net Metering Approval	SREDA Approved (as provided)
AFCI Protection	Supported
Export Power Control	Zero-Export Function
Protection Rating	IP66
Cooling System	Natural Cooling
Installation	Suitable for compatible outdoor installations
Warranty	5-Year Official Warranty

Product Description

Solis S5-GR3P10K 10kW Three-Phase On-Grid Solar Inverter

The Solis S5-GR3P10K 10kW Three-Phase On-Grid Inverter is designed to convert electricity generated by solar panels into AC power for compatible grid-connected electrical systems. It is suitable for solar projects requiring three-phase power conversion, solar energy optimization and utility-grid integration.

High-Efficiency 10kW Solar Power Conversion

With a rated output of 10kW and a stated maximum efficiency of 98.5%, the Solis S5-GR3P10K is designed to convert solar energy efficiently. Actual performance depends on sunlight availability, solar panel orientation, temperature and system configuration.

15kW Maximum Solar PV Input

The inverter supports a stated maximum PV input power of 15kW. This allows a suitably designed solar array to have a DC capacity greater than the inverter's rated AC output. The final solar panel configuration must remain within the manufacturer's specified voltage, current and power limits.

Dual MPPT Technology

Equipped with two Maximum Power Point Tracking (MPPT) trackers, the inverter helps optimize energy harvesting from compatible solar PV strings. Correct string design and panel arrangement are important for maximizing system performance.

SREDA Approval for Net Metering

The supplied product information identifies the Solis S5-GR3P10K as SREDA-approved for Bangladesh's net metering program. Net metering may allow eligible solar system owners to export surplus electricity to the utility grid under applicable rules. Confirm the model's current approval status and utility requirements before installation.

AFCI Protection for Improved Electrical Safety

Arc-Fault Circuit Interrupter (AFCI) protection helps detect certain electrical arc faults that may create a fire risk. This feature complements correct wiring, suitable circuit protection, proper earthing and professional installation.

Zero-Export Power Control

The export power control function can help limit electricity fed back into the utility grid. A compatible meter or additional control equipment may be required, depending on the installation. Check the manufacturer's requirements for the exact model before purchasing accessories.

IP66 Protection and Natural Cooling

The IP66-rated enclosure is designed to provide dust-tight protection and resistance to powerful water jets under specified test conditions. Its natural cooling design supports heat dissipation without conventional cooling fans. Proper mounting, environmental conditions and installation clearances remain important for long-term performance.

Applications of the Solis S5-GR3P10K

This 10kW three-phase on-grid inverter may be suitable for:

Commercial rooftop solar power systems
Office buildings and business premises
Shops and other commercial facilities
Compatible three-phase residential installations
Eligible net metering projects in Bangladesh
Grid-connected solar systems requiring export power control

Important: The Solis S5-GR3P10K is an on-grid inverter, not a battery-backup hybrid inverter. Standard on-grid operation generally stops during a utility grid outage for safety. Verify the official datasheet, SREDA approval status and installation requirements before purchasing or installing the product.

Explore solar inverters and related solar equipment at MuthoBD.com for your solar power project in Bangladesh.
