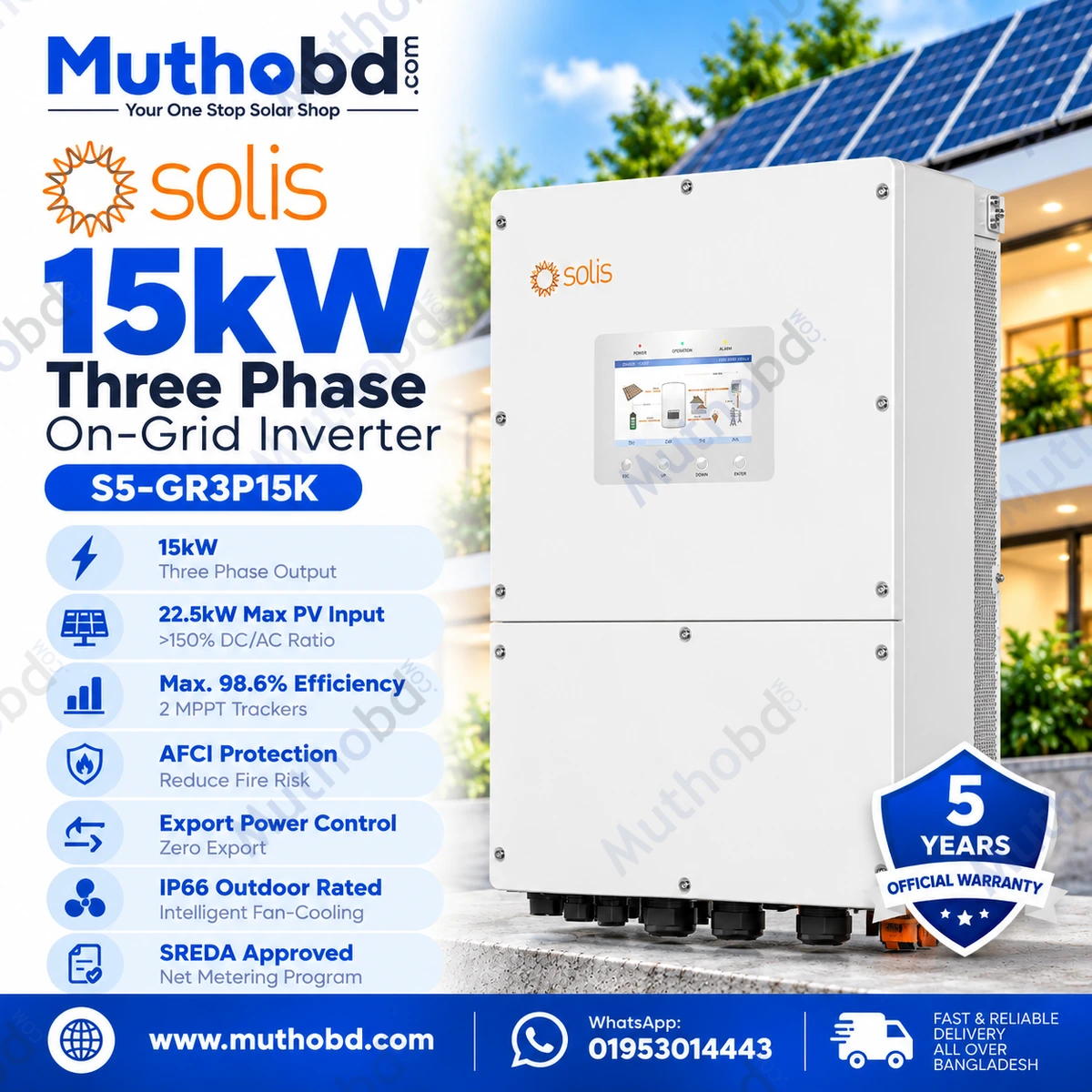

Solis S5-GR3P15K 15kW Three Phase On-Grid Solar Inverter with Dual MPPT

Solis S5-GR3P15K 15kW Three-Phase On-Grid Solar Inverter

The Solis S5-GR3P15K 15kW Three-Phase On-Grid Inverter is designed to convert solar panel-generated DC electricity into AC power for compatible grid-connected electrical systems. With its 15kW rated output, it is suitable for appropriately designed commercial solar projects and other installations requiring three-phase power conversion.

High-Efficiency 15kW Solar Power Conversion

The Solis S5-GR3P15K offers a rated output power of 15kW and a stated maximum efficiency of 98.6%. Efficient conversion helps make solar-generated electricity available for compatible electrical loads. Actual performance depends on sunlight, panel orientation, temperature and system configuration.

22.5kW Maximum Solar PV Input

With a stated maximum PV input of 22.5kW, this inverter can accommodate a suitably designed solar panel array with a DC capacity greater than its rated AC output. The final PV configuration must comply with the manufacturer's voltage, current and input-power limits.

Dual MPPT Technology

The inverter features two Maximum Power Point Tracking (MPPT) trackers to help optimize energy harvesting from compatible solar PV strings. Proper panel arrangement and string configuration are essential for reliable operation and efficient solar generation.

Net Metering for Eligible Solar Projects

The supplied product information identifies the Solis S5-GR3P15K as SREDA-approved for Bangladesh's net metering program. Net metering can allow eligible solar installations to export surplus electricity to the utility grid under applicable rules. Verify the current approval list and utility requirements before purchasing or installing the inverter.

AFCI Protection for Electrical Safety

Arc-Fault Circuit Interrupter (AFCI) protection helps detect certain electrical arc faults that may create fire risks. This feature complements correct wiring, suitable circuit breakers, proper earthing and professional installation.

Zero-Export Power Control

The export power control function helps manage electricity fed back into the utility grid. A compatible meter or additional control equipment may be required, depending on the installation. Check the manufacturer's requirements for the exact model before configuring a zero-export system.

IP66 Protection and Intelligent Fan Cooling

The IP66-rated enclosure is designed to provide dust-tight protection and resistance to powerful water jets under specified test conditions. Intelligent fan cooling helps regulate the inverter's operating temperature. Correct installation, appropriate ventilation clearance and compliance with the manufacturer's environmental limits are important for long-term performance.

Applications of the Solis S5-GR3P15K

This 15kW three-phase on-grid inverter may be suitable for:

• Commercial rooftop solar power systems

• Office buildings and business premises

• Factories and compatible industrial facilities

• Large shops and commercial properties

• Eligible net metering projects in Bangladesh

• Three-phase grid-connected solar installations

• Solar systems requiring export power control

Important: The Solis S5-GR3P15K is an on-grid inverter, not a battery-backup hybrid inverter. Standard on-grid operation generally stops during a utility grid outage for safety. Confirm the official datasheet, approval status and installation requirements before purchase.

Explore solar inverters and related solar equipment at MuthoBD.com for your solar power project in Bangladesh.
