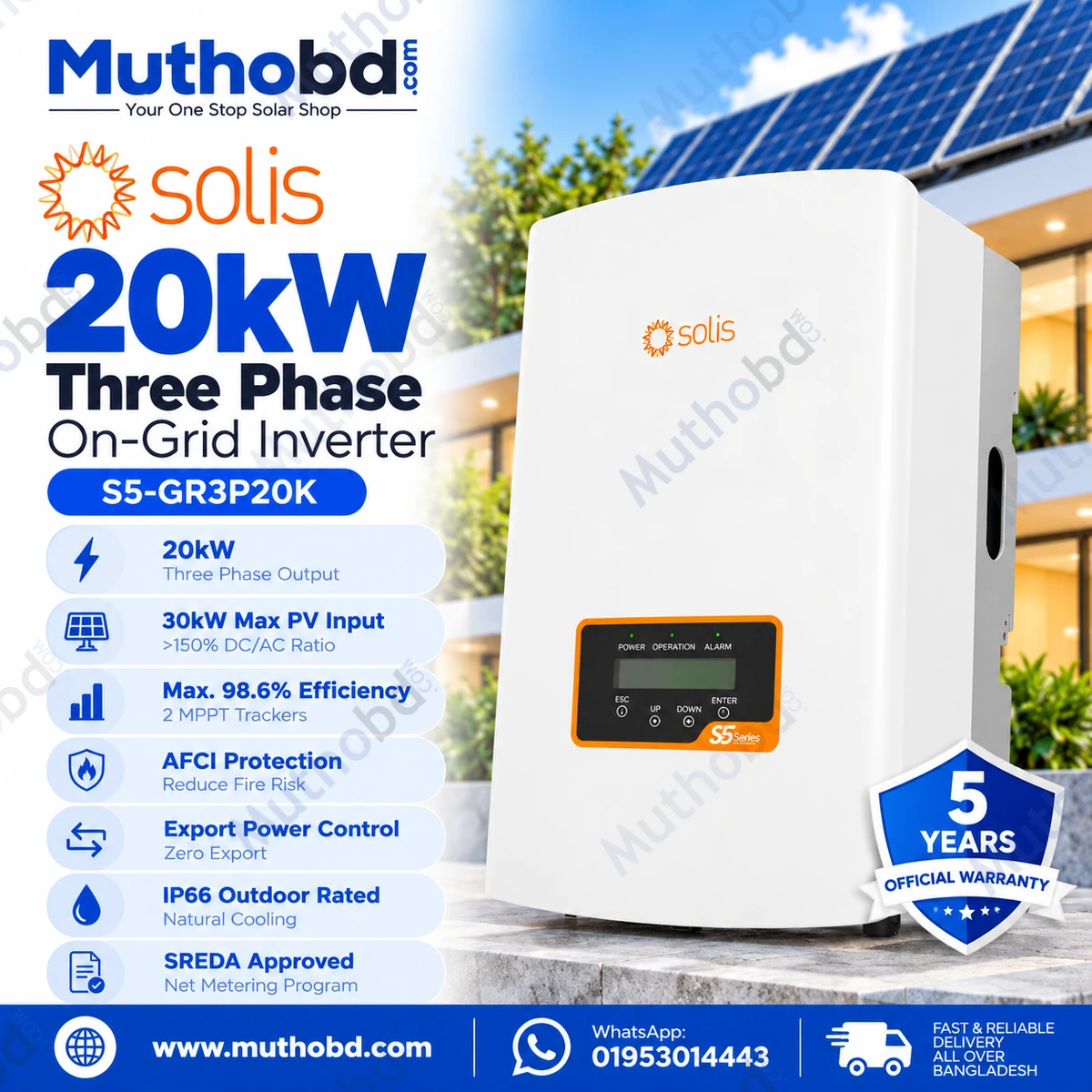

Solis S5-GR3P20K 20kW Three Phase On-Grid Solar Inverter with Dual MPPT

Solis S5-GR3P20K 20kW Three-Phase On-Grid Solar Inverter

The Solis S5-GR3P20K 20kW Three-Phase On-Grid Inverter is designed to convert solar panel-generated DC electricity into AC power for compatible grid-connected electrical systems. With its 20kW rated output, it is a solution to consider for commercial buildings, industrial facilities and other projects with suitable three-phase electrical infrastructure.

High-Efficiency 20kW Solar Power Conversion

The Solis S5-GR3P20K has a rated output power of 20kW and a stated maximum efficiency of 98.7%. Efficient power conversion helps make solar-generated electricity available for compatible electrical loads. Actual performance depends on sunlight, panel orientation, temperature and system configuration.

30kW Maximum Solar PV Input

With a stated maximum PV input of 30kW, this inverter can accommodate a suitably designed solar panel array with a DC capacity greater than its rated AC output. The final PV configuration must comply with the manufacturer's specified voltage, current and input-power limits.

Dual MPPT Technology

The inverter features two Maximum Power Point Tracking (MPPT) trackers to help optimize energy harvesting from compatible solar PV strings. Correct panel arrangement and string design are essential for reliable operation and effective solar generation.

Net Metering for Eligible Solar Projects

The supplied product information identifies the Solis S5-GR3P20K as SREDA-approved for Bangladesh's net metering program. Net metering may allow eligible solar installations to export surplus electricity to the utility grid under applicable rules. Confirm the model's current approval status and utility requirements before installation.

AFCI Protection for Electrical Safety

Arc-Fault Circuit Interrupter (AFCI) protection helps detect certain electrical arc faults that may create a fire risk. This feature complements proper wiring, suitable circuit breakers, correct earthing and professional installation.

Zero-Export Power Control

The export power control function helps manage electricity fed back into the utility grid. Depending on the installation, a compatible meter or additional control equipment may be required. Check the manufacturer's requirements for the exact model before configuring a zero-export system.

IP66 Protection and Intelligent Fan Cooling

The IP66-rated enclosure is designed to provide dust-tight protection and resistance to powerful water jets under specified test conditions. Intelligent fan cooling helps manage the inverter's operating temperature. Proper mounting, ventilation clearance and compliance with the manufacturer's environmental requirements are important for long-term performance.

Applications of the Solis S5-GR3P20K

This 20kW three-phase on-grid inverter may be suitable for:

• Commercial rooftop solar power systems

• Factories and industrial facilities

• Office buildings and business premises

• Large commercial properties

• Eligible net metering projects in Bangladesh

• Three-phase grid-connected solar installations

• Solar systems requiring export power control

Important: The Solis S5-GR3P20K is an on-grid inverter, not a battery-backup hybrid inverter. Standard on-grid operation generally stops during a utility grid outage for safety. Verify the official datasheet, SREDA approval status and installation requirements before purchasing or installing the product.
