What is the Solis S5-GR3P3K inverter?

The Solis S5-GR3P3K is a 3kW three-phase on-grid solar inverter designed to convert solar panel electricity into AC power for a compatible grid-connected system.

What is the maximum PV input power?

The supplied specification lists a maximum PV input power of 4.5kW.

What is the maximum efficiency of this inverter?

Its stated maximum efficiency is 98.3%.

Is the Solis S5-GR3P3K suitable for net metering in Bangladesh?

The supplied product information states that it is SREDA-approved for net metering. Confirm current approval and utility requirements before installation.

Does this inverter support zero-export operation?

Yes, the supplied specifications include export power control for zero-export operation. Additional compatible equipment may be required.

What is AFCI protection?

AFCI stands for Arc-Fault Circuit Interrupter. It helps detect certain electrical arc faults that may pose a fire risk.

Is the Solis S5-GR3P3K suitable for outdoor installation?

Its IP66 protection rating supports appropriate outdoor installation when the manufacturer's mounting and environmental requirements are followed.

Does this inverter support battery backup?

It is an on-grid inverter and should not be treated as a battery-backup system. A compatible hybrid or backup solution is needed when power during grid outages is required.

What is the warranty period?

The supplied product information states a 5-year official warranty, subject to the applicable warranty terms.

Can this inverter be used for a commercial solar system?

Yes, it can be considered for suitable small commercial applications with a compatible three-phase grid connection.

Where can I buy the Solis S5-GR3P3K in Bangladesh?

You can check product availability and pricing at MuthoBD.com.

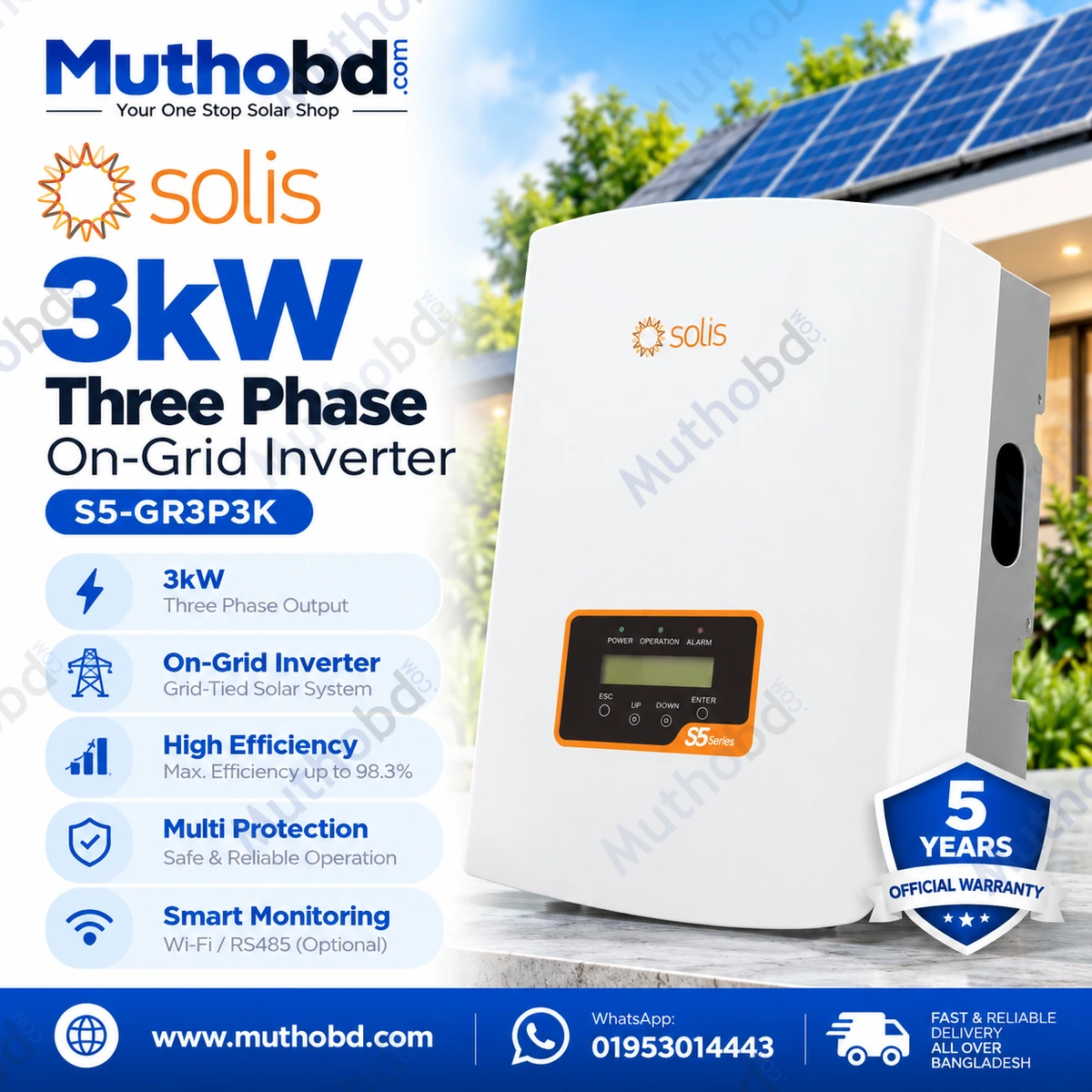

Solis S5-GR3P3K 3kW Three Phase On-Grid Solar Inverter with Dual MPPT

Name: Solis S5-GR3P3K 3kW Three Phase On-Grid Solar Inverter with Dual MPPT
Brand: solis
Price: 86250 BDT
Availability: InStock

In Stock

৳ 86,250৳ 94,500

Key Features

3kW Three-Phase Solar Inverter for compatible residential and commercial grid-connected solar systems.
4.5kW Maximum PV Input to support a suitably designed solar panel array.
98.3% Maximum Efficiency for efficient solar energy conversion.
Dual MPPT Technology to optimize solar power generation from compatible PV strings.
SREDA Approval for Net Metering for eligible solar installations in Bangladesh.
AFCI Protection to detect certain arc faults and help reduce electrical fire risks.
Zero-Export Function to help control excess electricity fed into the utility grid.
IP66 Protection Rating for dust-tight protection and resistance to powerful water jets.
Natural Cooling System for heat dissipation without conventional cooling fans.
Three-Phase Grid Compatibility for suitable commercial and residential electrical systems.
5-Year Official Warranty for added purchase confidence, subject to official warranty terms.

WhatsApp Phone Call

+880 1805 026888

Payment Option:

Payment options will be updated soon.

Quantity :

Specification

Specification	Details
Brand	Solis
Model	S5-GR3P3K
Product Type	On-Grid Solar Inverter
Rated Output Power	3kW
Phase	Three-Phase
Maximum PV Input Power	4.5kW
DC/AC Ratio	Greater than 150% (as provided)
Maximum Efficiency	98.3%
MPPT Trackers	2
Grid Connection	On-Grid
Net Metering Approval	SREDA approved, as provided
AFCI Protection	Supported
Export Power Control	Zero-export function
Protection Rating	IP66
Cooling System	Natural Cooling
Installation	Suitable for compatible outdoor installations
Warranty	5-Year Official Warranty

Product Description

Solis S5-GR3P3K 3kW Three-Phase On-Grid Solar Inverter

Looking for a reliable three-phase solar inverter for your home, office or commercial property? The Solis S5-GR3P3K 3kW Three-Phase On-Grid Solar Inverter is designed to convert solar panel-generated DC electricity into AC power for use in a compatible grid-connected electrical system.

With a stated maximum PV input of 4.5kW, dual MPPT technology and a maximum efficiency of 98.3%, this Solis inverter is a suitable option to consider for appropriately designed three-phase solar installations.

High-Efficiency Solar Power Conversion

The Solis S5-GR3P3K offers a rated output of 3kW and a stated maximum efficiency of 98.3%. Efficient conversion helps make the solar electricity generated by your panels available for compatible electrical loads. Actual energy production depends on sunlight, panel orientation, temperature and system design.

4.5kW Maximum Solar Panel Input

With a maximum PV input of 4.5kW, this inverter can accommodate a solar panel array with a DC capacity higher than its rated AC output, within the manufacturer's specified limits. Correct solar panel string design is essential for safe and efficient operation.

Dual MPPT Technology

The inverter features two Maximum Power Point Tracking (MPPT) trackers. MPPT technology helps optimize the energy harvested from solar panels as sunlight and operating conditions change.

SREDA Approval for Net Metering

The Solis S5-GR3P3K is specified as SREDA-approved for Bangladesh's net metering program. Net metering may allow eligible solar system owners to export surplus electricity to the utility grid under the applicable rules. Final approval depends on the installation, utility requirements and current program guidelines.

Advanced AFCI Safety Protection

Arc-Fault Circuit Interrupter (AFCI) protection helps detect certain electrical arc faults that may create a fire risk. This feature adds a layer of protection alongside correctly selected wiring, circuit breakers, earthing and other required electrical safety measures.

Zero-Export Power Control

The zero-export function can help manage how much electricity a solar system feeds into the utility grid. Where required, compatible metering or control equipment may be necessary. Check the installation requirements for the exact model before purchasing accessories.

IP66 Protection and Natural Cooling

The IP66-rated enclosure is designed to provide dust-tight protection and resistance to powerful water jets under specified test conditions. Its natural cooling design helps dissipate heat without conventional cooling fans. The inverter should still be installed according to the manufacturer's environmental and clearance requirements.

Applications of the Solis 3kW On-Grid Inverter

The Solis S5-GR3P3K may be suitable for:

Small commercial solar power systems
Offices and business premises
Three-phase rooftop solar installations
Eligible net metering projects
Grid-connected solar systems requiring zero-export control
Residential properties with compatible three-phase electrical supplies

Important: This is an on-grid inverter, not a battery-backup hybrid inverter. Standard on-grid operation generally stops during a grid outage for safety. Confirm all electrical specifications and installation requirements against the official datasheet before installation.

Choose MuthoBD.com to explore solar inverters and other solar power equipment for your project in Bangladesh.

Frequently Asked Questions

The Solis S5-GR3P3K is a 3kW three-phase on-grid solar inverter designed to convert solar panel electricity into AC power for a compatible grid-connected system.
