Sorotec REVO VM IV 8KW Hybrid Solar Inverter 48V

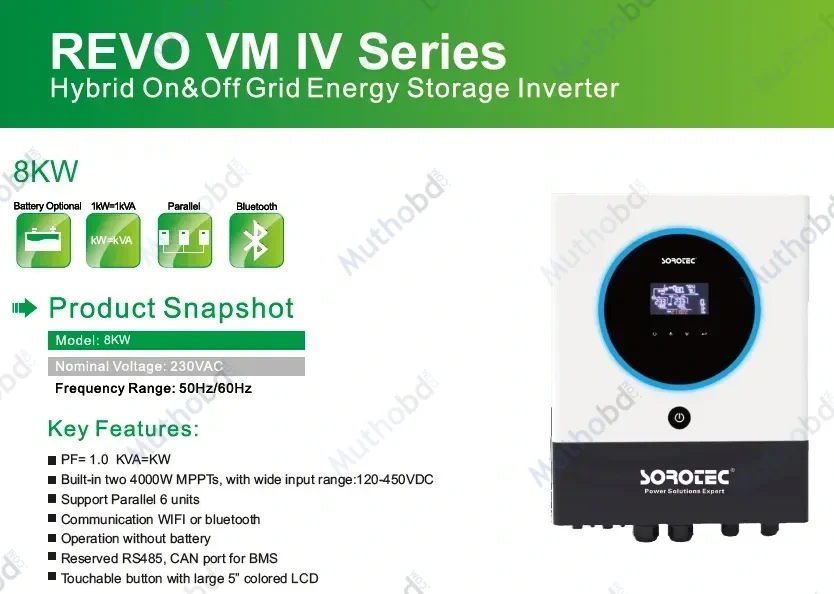

Sorotec REVO VM IV 8KW Hybrid Solar Inverter

The Sorotec REVO VM IV 8KW Hybrid Solar Inverter is designed for solar power systems requiring high output capacity and a 48V DC battery bank. With a rated output of 8000W/8000VA, pure sine wave output and a built-in MPPT solar controller, this inverter can be considered for compatible residential and commercial solar installations.

Available through Muthobd.com, the Sorotec REVO VM IV series is intended to combine solar charging and AC power conversion in one integrated unit.

8KW Rated Output and Pure Sine Wave

This model provides a rated output of 8000W/8000VA, with a listed surge capacity of 16,000VA. Its pure sine wave output is suitable for many compatible household and commercial electrical loads.

Before selecting an inverter, calculate the combined running power and starting surge of the appliances you plan to operate. Motors, pumps, refrigerators and other equipment with high starting currents may require additional capacity. Actual performance depends on the connected loads, battery capability and installation conditions.

Built-in MPPT Solar Charging

The supplied REVO VM IV specification lists an MPPT operating voltage range of 120–450V DC and a maximum PV array open-circuit voltage of 450V DC. It also lists a solar array configuration of 4000W × 2.

The product details separately advertise a maximum solar capacity of 10,000W. Because these figures differ, confirm the exact permitted PV array power and input configuration with the seller or official datasheet before purchasing or installing the inverter.

Solar panel string voltage, current and open-circuit voltage must remain within the manufacturer's limits. Correct panel configuration helps protect the inverter and supports reliable system operation.

48V Battery-Based Solar System

The inverter uses a nominal 48V DC battery system. The supplied specification lists a floating charge voltage of 54V DC and an overcharge protection voltage of 60V DC.

Confirm the compatible battery chemistry, charging profile, BMS communication requirements and recommended battery capacity before installation. Battery selection should account for the intended load, daily energy consumption and required backup duration.

AC Input, Output and Protection Considerations

The supplied specification lists a nominal AC input voltage of 230V and a selectable input range of 170–280V for personal computers or 90–280V for home appliances. The stated AC output regulation in battery mode is 230V AC ±5%.

Transfer time is listed as 10ms for personal computers and 20ms for home appliances. These values should not be treated as a guarantee of uninterrupted operation for every device; sensitive equipment may have specific power requirements.

Installation for Bangladesh

For installations in Bangladesh, a qualified solar technician should assess the site's electrical load, battery bank, solar panel layout, cable sizing, earthing and required DC/AC protection devices. The PV array must be designed to remain within the inverter's confirmed input limits.

Buy Sorotec REVO VM IV 8KW from Muthobd.com

Explore the Sorotec REVO VM IV 8KW Hybrid Solar Inverter at Muthobd.com. Before ordering, confirm current price, stock availability, warranty terms, battery compatibility and the exact solar input rating for the supplied model. Choosing a correctly sized inverter and compatible battery and solar array is essential for safe and reliable operation.
