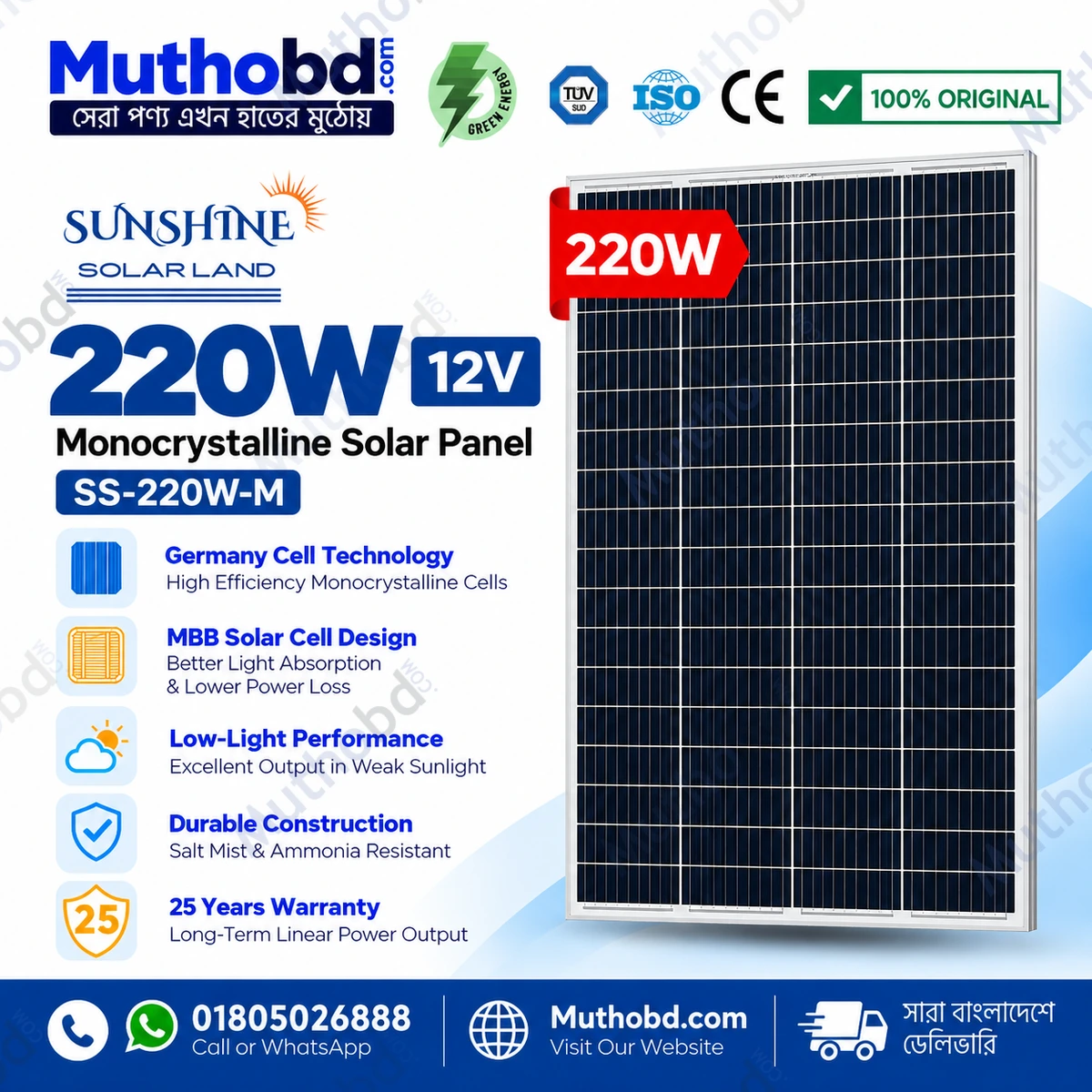

SUNSHINE 220W 12V Monocrystalline Solar Panel SS-220W-M
In Stock
Key Features
220W Solar Power Output: Suitable for off-grid solar applications and compatible 12V battery systems.
Monocrystalline Germany Cell Technology: Designed for efficient solar energy conversion.
MBB Solar Cell Design: Supports light absorption and helps reduce internal power losses.
Low-Light Performance: Designed to generate electricity under weak sunlight and cloudy conditions.
Durable Construction: Salt mist and ammonia resistance for demanding environments.
25-Year Linear Power Warranty: Long-term power output coverage, subject to applicable warranty terms.
WhatsApp+880 1805 026888
Payment Option:
Payment options will be updated soon.
Product URL: https://www.muthobd.com/product/sunshine-220-w-12-v-monocrystalline-solar-panel-ss-220-w-m
Specification
| Specification | Value |
|---|---|
| Brand | SUNSHINE |
| Model | SS-220W-M |
| Product Type | Monocrystalline Solar Panel |
| Rated Power Output | 220W |
| Cell Technology | Monocrystalline Germany Cell Technology |
| Panel Design | MBB (Multi-Busbar) |
| System Type | 12V Nominal Battery System |
| Application Class | Class A |
| Power Tolerance | 0 to +5W |
| Linear Power Warranty | 25 Years |
| Specification | Value |
|---|---|
| Maximum Power (Pmax) | 220W |
| Voltage at Maximum Power (Vmp) | 18.9V |
| Current at Maximum Power (Imp) | 11.64A |
| Open Circuit Voltage (Voc) | 22.11V |
| Short Circuit Current (Isc) | 13.52A |
| Maximum System Voltage | 1000V |
| Maximum Series Fuse Rating | 20A |
| Specification | Value |
|---|---|
| Dimensions | 1570 × 710 × 35 mm |
| Cell Type | Monocrystalline |
| Busbar Design | MBB |
| Weight | Not Specified |
| Specification | Value |
|---|---|
| Low-Light Performance | Excellent low-light performance (manufacturer-stated) |
| Salt Mist Resistance | Yes, as stated in supplied specifications |
| Ammonia Resistance | Yes, as stated in supplied specifications |
| PID Protection | PID-free technology (manufacturer-stated) |
| Warranty Type | Linear Power Output Warranty |
| Warranty Period | 25 Years |

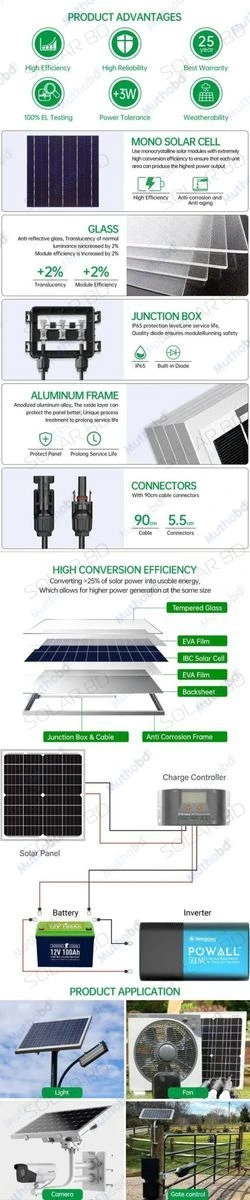

Detailed description
SUNSHINE 220W 12V Monocrystalline Solar Panel
The SUNSHINE 220W Germany Cell 12V Mono Solar Panel SS-220W-M is designed for off-grid solar applications that require dependable renewable electricity. Featuring monocrystalline Germany cell technology and an MBB (Multi-Busbar) design, this solar module is suitable for compatible 12V battery charging systems and other small-scale solar power setups.
With a rated power output of 220W, the SUNSHINE solar panel can be considered for solar lighting, battery charging, low-power equipment and remote installations. Actual energy production depends on sunlight availability, panel orientation, shading, temperature and the specifications of the connected charge controller and battery.
Monocrystalline Germany Cell Technology
The SUNSHINE SS-220W-M uses monocrystalline solar cell technology designed to convert sunlight into DC electricity. Its MBB design is intended to improve light absorption and reduce internal power losses, supporting energy generation within the panel's rated output.
The manufacturer also describes this model as offering excellent low-light performance. This feature may be useful during cloudy conditions or periods of weaker sunlight, although actual electricity production varies with available solar irradiance.
Electrical Performance for 12V Solar Systems
The panel has a maximum-power voltage (Vmp) of 18.9V and a maximum-power current (Imp) of 11.64A. Its open-circuit voltage (Voc) is 22.11V, while its short-circuit current (Isc) is 13.52A.
These electrical ratings are important when selecting a compatible solar charge controller. Although the panel is intended for 12V nominal battery systems, the controller must match the battery chemistry, charging voltage and panel specifications. A suitable charge controller regulates charging and helps protect the battery.
The specified maximum system voltage is 1000V, with a maximum series fuse rating of 20A. These are system-design ratings and should not be interpreted as a recommendation to connect the panel directly to a battery without appropriate charge regulation.
Designed for Challenging Environments
According to the supplied product information, the SUNSHINE SS-220W-M features salt mist and ammonia resistance. These properties may be relevant for installations exposed to demanding environmental conditions.
The manufacturer also identifies PID-free technology as a feature intended to support long-term power stability. For dependable operation, install the panel securely using a suitable mounting structure, compatible wiring and appropriate electrical protection.
With dimensions of 1570 × 710 × 35 mm, the panel can be considered for installations where mounting space and panel size are important factors. Its suitability for a particular project depends on the available installation area and daily energy requirements.
Suitable Applications
The SUNSHINE 220W solar panel may be suitable for:
Off-grid solar power systems
Compatible 12V battery charging setups
Solar lighting applications
Low-power devices and remote equipment
Small renewable energy projects
Before selecting the panel, estimate daily electricity consumption and consider sunlight availability, battery capacity and charge controller requirements.
25-Year Linear Power Warranty
SUNSHINE specifies a 25-year linear power output warranty for the SS-220W-M. Buyers should review the applicable warranty documentation to confirm coverage, performance guarantees and claim requirements.
For customers in Bangladesh looking for a monocrystalline solar panel for off-grid applications, the SUNSHINE SS-220W-M offers 220W rated output, MBB design and stated environmental resistance features. Explore the SUNSHINE 220W Solar Panel at Muthobd.com for your solar power requirements.
- The SUNSHINE SS-220W-M has a rated maximum power output of 220W.
