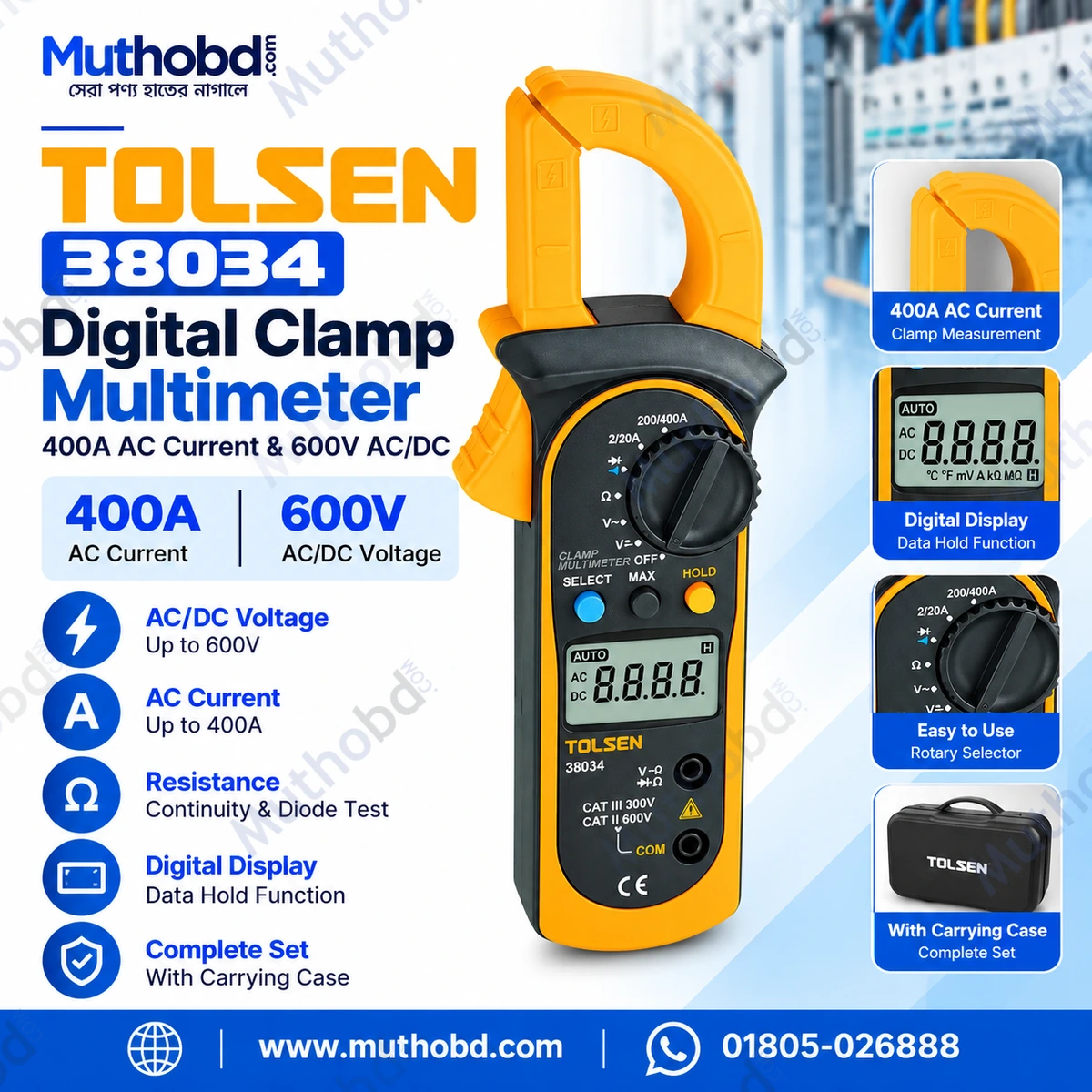

TOLSEN 38034 Digital Clamp Multimeter 400A AC, 600V AC/DC, Data Hold, Carrying Case & Included Batteries

TOLSEN 38034 Digital Clamp Multimeter – 400A AC and 600V AC/DC

The TOLSEN 38034 Digital Clamp Multimeter is an electrical testing instrument designed for measuring AC current, AC voltage, DC voltage, and resistance. With AC current measurement up to 400A, voltage ranges up to 600V AC/DC, and a maximum clamp opening of 28mm, it is an option for electricians, technicians, and electrical maintenance professionals who need a versatile testing tool.

AC Current Measurement up to 400A

The TOLSEN 38034 supports AC current measurement across four ranges: 2A, 20A, 200A, and 400A. The specified AC current accuracy is ±(1.5% + 9).

The clamp-style design allows current measurement around a compatible conductor without requiring the conductor to be disconnected for the measurement. Follow the instrument's instructions for correct clamp positioning and measurement procedures.

AC Voltage Measurement up to 600V

This digital clamp multimeter supports AC voltage measurements at 2V, 20V, 200V, and 600V ranges. Its specified AC voltage accuracy is ±(1.2% + 5).

These multiple ranges help users select a suitable measurement range for compatible electrical testing tasks. Always confirm the expected voltage and use the instrument within its specified limits.

DC Voltage Measurement up to 600V

The TOLSEN 38034 also supports DC voltage measurement across the following ranges:

• 200mV

• 2V

• 20V

• 200V

• 600V

The supplied DC voltage accuracy is ±(0.8% + 1). These specifications may be useful when testing compatible DC electrical systems. Confirm the correct input connections and measurement procedure in the manufacturer's instructions before use.

Multiple Resistance Measurement Ranges

The instrument supports resistance measurements at 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, and 20MΩ ranges. Its specified resistance accuracy is ±(1.0% + 2).

These ranges allow users to test resistance across a variety of compatible components and circuits. Resistance measurements should only be performed on de-energized circuits, with stored electrical energy safely discharged.

28mm Maximum Clamp Opening

The TOLSEN 38034 features a maximum clamp opening of 28mm. This measurement helps buyers determine whether the clamp can physically accommodate the conductor they intend to test.

The clamp should be used according to the manufacturer's instructions. Do not assume that the opening size guarantees compatibility with every cable or conductor type.

Digital Display and Data Hold Function

The digital display presents measurement readings, while the data hold function helps retain a displayed value for easier viewing. This can be convenient when readings need to be checked while working in a position where the display is not immediately easy to observe.

IEC 61010 Safety Category Ratings

The supplied specifications list the instrument as IEC 61010 CAT II 600V / CAT III 300V. These ratings are important when assessing whether the instrument is suitable for a particular electrical measurement environment.

Users should match the meter's category and voltage rating to the measurement location. The maximum 600V measurement range does not mean the instrument is rated CAT III at 600V.

Carrying Case and Included Batteries

The TOLSEN 38034 is supplied with a carrying case and two AAA 1.5V batteries. These accessories support storage, transportation, and initial setup.

Suitable Applications

Depending on the measurement requirements and safety category of the electrical system, the TOLSEN 38034 may be considered for:

• AC current measurement.

• AC and DC voltage testing.

• Resistance measurement on de-energized circuits.

• Electrical troubleshooting and maintenance.

• Workshop and electrical inspection tasks.

Always follow the manufacturer's operating instructions and electrical safety procedures. Inspect test leads and the meter before use, and never exceed the instrument's specified measurement or safety category ratings.

Why Choose the TOLSEN 38034?

The TOLSEN 38034 combines AC current measurement up to 400A, AC/DC voltage ranges up to 600V, resistance measurement up to 20MΩ, a 28mm clamp opening, and a data hold function. The included carrying case and batteries make it a practical option for users who need a digital clamp multimeter for compatible electrical testing applications.

TOLSEN Electrical Testing Tools at MuthoBD

When selecting a digital clamp multimeter, compare the current and voltage ranges, resistance capability, clamp opening, accuracy specifications, safety category ratings, and included accessories. The TOLSEN 38034 offers a combination of electrical measurement functions for suitable professional and maintenance applications.

Product Summary: TOLSEN 38034 | AC Current: Up to 400A | AC/DC Voltage: Up to 600V | Resistance: Up to 20MΩ | Clamp Opening: 28mm | Data Hold | Carrying Case | 2 × AAA Batteries Included | Warranty: 6 Months Service Warranty.
