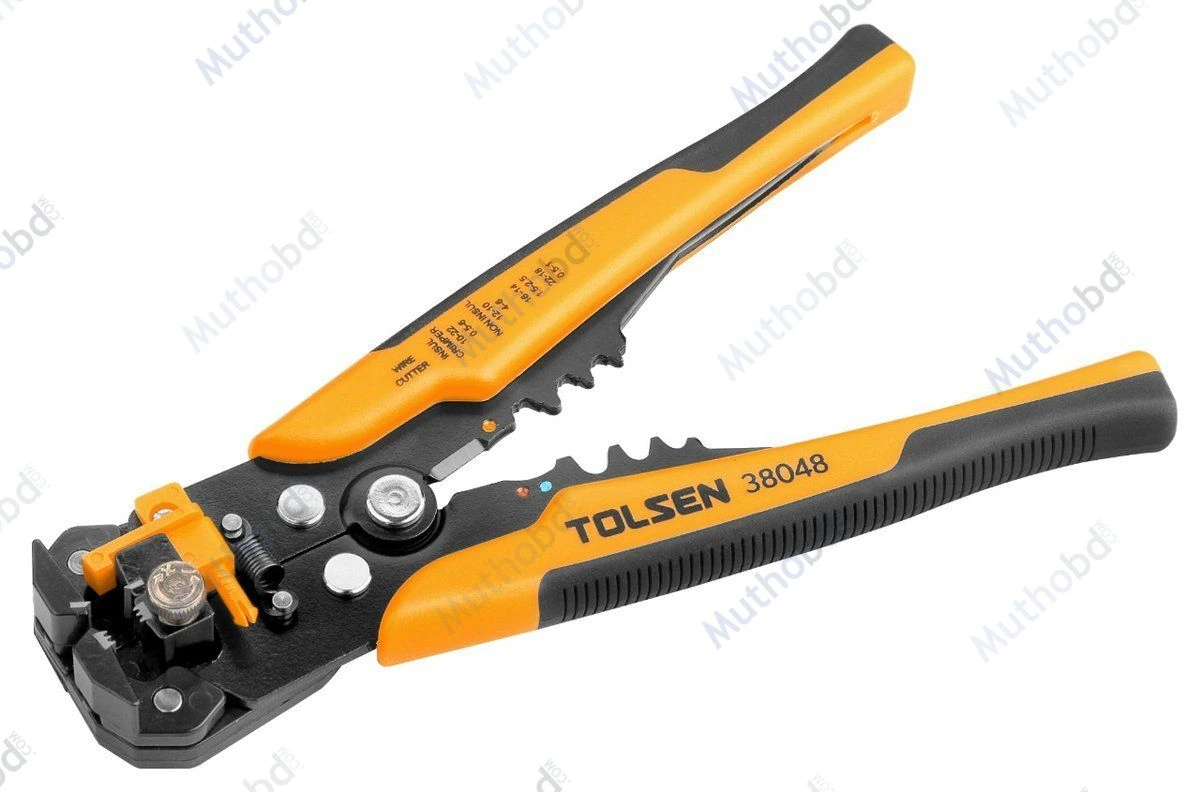

TOLSEN 38048 Industrial Automatic Wire Stripper 8 Inch (200mm), 24–10 AWG, Cutting, Stripping & Crimping Tool

TOLSEN 38048 Industrial Automatic Wire Stripper – 8 Inch (200mm)

The TOLSEN 38048 Industrial Automatic Wire Stripper is a multifunctional electrical hand tool designed to support wire stripping, wire cutting, and terminal crimping tasks. Measuring 8 inches (200mm), it combines several wire-handling functions in one tool, making it an option for electricians, technicians, electrical installers, and workshop professionals.

With its specified Cr12MoV steel construction, HRC 52–60 hardness, and multiple wire-processing ranges, the TOLSEN 38048 is designed for users who need a versatile tool for compatible wiring applications.

Detailed Specifications of TOLSEN 38048

This industrial automatic wire stripper offers multiple operating ranges for different wire preparation tasks. Its stripping gauge range is specified as 24–10 AWG (0.2–6mm²). The cutting and crimping range is 22–10 AWG (0.5–6mm²), while non-insulated terminal crimping is specified for 22–18 AWG (0.5–1mm²).

The tool also lists applicable wire diameters of 1.0mm, 1.6mm, 2.0mm, 2.6mm, and 3.2mm. Checking the relevant range for each operation is important because the supported wire sizes differ between stripping, cutting/crimping, and non-insulated terminal crimping.

Cr12MoV Steel Blade Material

The TOLSEN 38048 is specified with Cr12MoV steel and a hardness rating of HRC 52–60. These material specifications help buyers identify the tool's construction when comparing automatic wire strippers for electrical and workshop applications.

The specified hardness is a product detail rather than a guarantee of a particular service life. Actual performance depends on use, maintenance, wire material, and operating conditions.

Automatic Wire Stripping Function

The automatic wire-stripping function is designed to remove insulation from compatible electrical wires. Its stated stripping range is 24–10 AWG, corresponding to 0.2–6mm².

Using the correct stripping range helps users select the appropriate setting or position for the wire being handled. Always follow the manufacturer's operating instructions to avoid damaging the conductor or using the tool outside its supported range.

Wire Cutting Function

The TOLSEN 38048 also supports wire cutting as specified in its product details. Its listed cutting and crimping range is 22–10 AWG (0.5–6mm²).

This cutting capability makes the tool an option for suitable wire preparation tasks during electrical installation, maintenance, and repair. Confirm that the wire type and size are compatible with the tool before cutting.

Terminal Crimping Function

In addition to stripping and cutting, the TOLSEN 38048 supports crimping within its specified ranges.

- Cutting and crimping range: 22–10 AWG / 0.5–6mm².

- Non-insulated terminal crimping range: 22–18 AWG / 0.5–1mm².

These ranges help users assess whether the tool is suitable for the wire and terminal combination they intend to use. For reliable electrical connections, select compatible terminals and verify that the finished crimp meets the requirements of the application.

Multiple Applicable Wire Diameters

The product information lists applicable wire diameters of 1.0mm, 1.6mm, 2.0mm, 2.6mm, and 3.2mm, alongside an indicated gauge range of 18–8 AWG for this diameter list.

Because these details are presented separately from the main stripping and crimping ranges, buyers should use the relevant operation-specific specifications when selecting a wire size. The listed diameter range should not be assumed to replace the stated stripping or terminal-crimping limits.

8-Inch (200mm) Tool Size

The TOLSEN 38048 measures 200mm, or approximately 8 inches. This size identifies the tool's overall length and helps buyers compare it with other wire strippers and electrical hand tools.

Its multifunctional design can be useful for professionals who want stripping, cutting, and crimping capabilities combined in one tool instead of carrying separate tools for every task.

Suitable Applications

The TOLSEN 38048 may be considered for compatible tasks such as:

- Electrical wire preparation.

- Wire insulation stripping.

- Cutting suitable electrical wires.

- Crimping compatible terminals.

- Electrical installation and maintenance.

- Workshop wiring and repair tasks.

Always check the wire size, terminal type, and operation-specific range before using the tool. Isolate the electrical supply and verify that the circuit is de-energized before working on wiring. Do not assume that the tool is insulated or approved for live electrical work unless its specifications explicitly confirm this.

Double Blister Packaging

The TOLSEN 38048 is supplied in double blister packaging, as specified in the product information. This packaging detail helps buyers identify the supplied product presentation.

Why Choose the TOLSEN 38048 Industrial Automatic Wire Stripper?

The TOLSEN 38048 combines a 200mm tool size, Cr12MoV steel construction, specified HRC 52–60 hardness, and multiple wire-processing functions. Its defined stripping, cutting, and crimping ranges help users evaluate its suitability for their intended work.

For electricians, technicians, and workshop users looking for a multifunctional automatic wire stripper, the TOLSEN 38048 is an option to consider when its specifications match the required wire sizes and terminal types.

TOLSEN Electrical Tools at MuthoBD

When selecting an automatic wire stripper, compare the stripping range, cutting and crimping capacities, terminal compatibility, tool size, and material specifications. The TOLSEN 38048 offers a combination of wire stripping, cutting, and crimping functions for compatible electrical work.

Product Summary: TOLSEN 38048 | 8 Inch / 200mm | Cr12MoV Steel | HRC 52–60 | Stripping: 24–10 AWG / 0.2–6mm² | Cutting & Crimping: 22–10 AWG / 0.5–6mm² | Non-Insulated Terminal Crimping: 22–18 AWG / 0.5–1mm² | Warranty: No Warranty.
