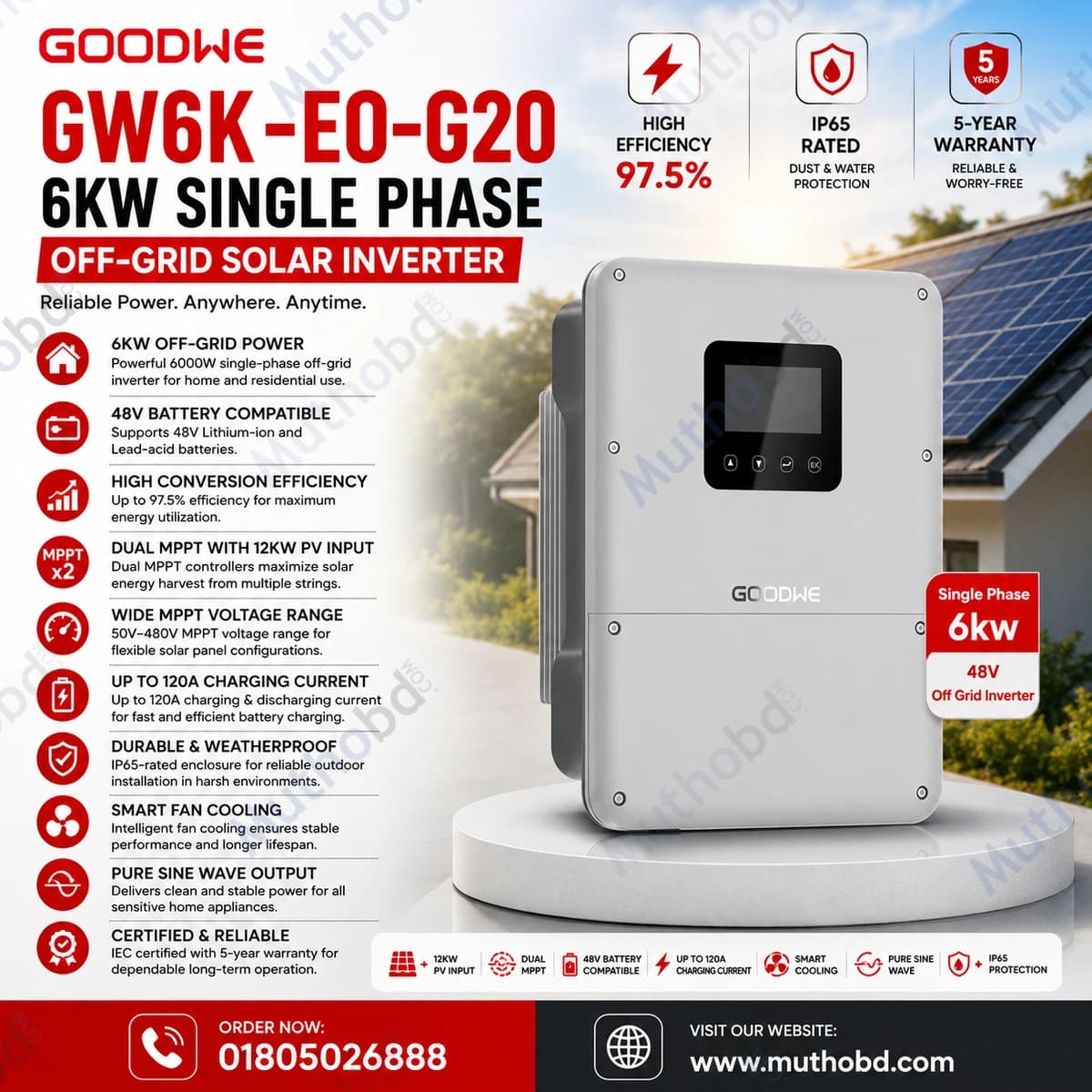

GoodWe GW6K-EO-G20 6KW Single Phase 48V Off-Grid Solar Inverter for Home
In Stock
Key Features
Powerful 6000W (6KW) single-phase off-grid solar inverter for residential solar systems.
Supports 48V Lithium-ion and Lead-acid batteries for flexible energy storage.
High 97.5% conversion efficiency for maximum energy utilization.
Dual MPPT design with 12KW PV input capacity for increased solar harvesting.
Wide MPPT voltage range of 50V–480V supports flexible solar panel configurations.
Up to 120A charging and discharging current for fast battery charging.
IP65-rated enclosure provides reliable outdoor protection against dust and water.
Smart fan cooling ensures stable performance and longer inverter lifespan.
Pure sine wave output delivers stable power for sensitive household appliances.
5-Year warranty with IEC certification for dependable long-term operation.
WhatsApp+880 1805 026888
Payment Option:
Payment options will be updated soon.
Product URL: https://www.muthobd.com/product/good-we-gw6-k-eo-g20-6-kw-single-phase-48-v-off-grid-solar-inverter-for-home
Specification
| Brand | GoodWe |
|---|---|
| Model | GW6K-EO-G20 |
| Product Type | Off-Grid Solar Inverter |
| Inverter Type | Single Phase DC/AC Off-Grid Inverter |
| Application | Home Solar Power System |
| Rated Power | 6000VA / 6000W |
| Inverter Efficiency | 97.5% |
| Battery Voltage | 48V DC |
| Compatible Battery | Lithium-ion / Lead-acid |
| Output Phase | Single Phase |
| Warranty | 5 Years |
| Certification | IEC |
| Protection Rating | IP65 |
| Battery Type | Lithium-ion / Lead-acid |
|---|---|
| Nominal Battery Voltage | 48V |
| Battery Voltage Range | 40V–60V |
| Start-up Voltage | 44.2V |
| Maximum Continuous Charging Current | 120A |
| Maximum Continuous Discharging Current | 120A |
| Maximum Charging Power | 6.0kW |
| Maximum Discharging Power | 6.6kW |
| Maximum PV Input Power | 12.0kW |
|---|---|
| Maximum PV Input Voltage | 530V |
| MPPT Operating Voltage Range | 50V–480V |
| Number of MPPTs | 2 |
| Maximum MPPT Current | 21A / 21A |
| Maximum MPPT Short Circuit Current | 26A / 26A |
| Nominal Output Power | 6.0kW |
|---|---|
| Maximum Output Power | 6.6kW |
| Rated Apparent Power from Grid | 6.0kVA |
| Output Voltage | 220V / 230V / 240V |
| Output Current | 26.1A |
| Output Frequency | 50Hz / 60Hz |
| Rated Apparent Power | 6.0kVA |
|---|---|
| Maximum Apparent Power Off-grid | 6.6kVA (12s) / On-grid: 8kVA |
| Maximum Output Current Off-grid | 30A / On-grid: 35A |
| Cooling Method | Smart Fan Cooling |
|---|---|
| Dimensions | 337 × 456 × 201 mm |
| Protection Rating | IP65 |
|---|---|
| Installation | Indoor / Outdoor (Protected Location) |
| Selling Unit | Single Item |
|---|---|
| Package Size | 55 × 50 × 20 cm |
| Gross Weight | 25 kg |
Detailed description
GoodWe is a globally recognized manufacturer of advanced solar energy solutions, offering high-performance inverters for residential, commercial, and industrial applications. The GoodWe GW6K-EO-G20 6KW Single Phase 48V Off-Grid Solar Inverter is designed to provide reliable, efficient, and uninterrupted power for modern homes and small businesses.
Built around a 48V battery platform, this inverter supports both Lithium-ion and Lead-acid batteries, giving users flexibility to choose the most suitable energy storage solution. With a 6KW rated output, 97.5% inverter efficiency, and 12KW maximum PV input, it efficiently converts solar energy into usable electricity while ensuring dependable backup during power outages.
The inverter features dual MPPT technology, allowing two independent solar arrays to operate at their maximum power point. This improves energy generation even when panels are installed on different roof orientations or experience partial shading. Combined with its IP65-rated enclosure, smart fan cooling, and intelligent battery management, the GW6K-EO-G20 is an excellent choice for Bangladesh's residential solar market.
Key Features
High-Efficiency Power Conversion
With an efficiency of 97.5%, the GoodWe GW6K-EO-G20 minimizes conversion losses, helping homeowners maximize solar energy production and reduce electricity costs.
48V Battery Compatibility
The inverter supports both 48V Lithium-ion and Lead-acid batteries, making it easy to integrate with new or existing battery storage systems.
Dual MPPT Technology
Two independent MPPT trackers optimize solar energy harvesting from separate PV strings, improving overall system efficiency under varying sunlight conditions.
Powerful Solar Charging
Supporting up to 12KW of PV input, the inverter can efficiently utilize larger solar arrays while delivering fast battery charging with a maximum charging current of 120A.
Reliable Backup Power
During utility outages, the inverter automatically supplies stable power to connected loads, ensuring continuous operation of essential household appliances such as lighting, refrigerators, routers, televisions, and security systems.
Smart Cooling & Durable Design
Smart fan cooling maintains optimal operating temperatures while extending component life. The IP65-rated enclosure protects against dust and water, making the inverter suitable for indoor and protected outdoor installations.
Technical Highlights
6KW single-phase off-grid inverter
6000VA rated output
97.5% conversion efficiency
48V battery system
Supports Lithium-ion and Lead-acid batteries
Dual MPPT design
12KW maximum PV input
530V maximum PV input voltage
50V–480V MPPT operating range
Up to 120A battery charging current
Pure sine wave AC output
Smart fan cooling
IP65 protection rating
IEC certified
5-year manufacturer warranty
Applications
The GoodWe GW6K-EO-G20 is ideal for:
Residential homes
Villas
Apartments
Small offices
Retail shops
Rural electrification
Farmhouses
Backup power systems
Solar battery storage systems
Off-grid and hybrid-ready residential installations
Its efficient battery charging and stable AC output make it suitable for powering essential household and business equipment.
Why Choose This Product
The GoodWe GW6K-EO-G20 combines high efficiency, flexible battery compatibility, and intelligent solar energy management in a compact design. Its dual MPPT architecture increases solar production, while fast battery charging and reliable backup power ensure continuous electricity during grid failures.
With IP65 protection, smart cooling, and a robust feature set, this inverter delivers dependable performance and long-term value for homeowners investing in renewable energy.
Why Buy from MuthoBD
MuthoBD.com is a trusted supplier of genuine solar inverters, batteries, solar panels, and renewable energy solutions in Bangladesh.
When you purchase the GoodWe GW6K-EO-G20 from MuthoBD, you receive:
100% Original GoodWe Products
Competitive Prices
Fast Nationwide Delivery
Secure Online Shopping
Professional Technical Consultation
Genuine Manufacturer Warranty
Reliable After-Sales Support
Assistance in Selecting Compatible Solar Panels and Batteries
Choose MuthoBD for authentic solar products backed by expert service and dependable customer support.
- The GoodWe GW6K-EO-G20 is a 6KW single-phase 48V off-grid solar inverter designed for residential solar systems. It converts solar energy into usable electricity while charging batteries and providing backup power during grid outages.
