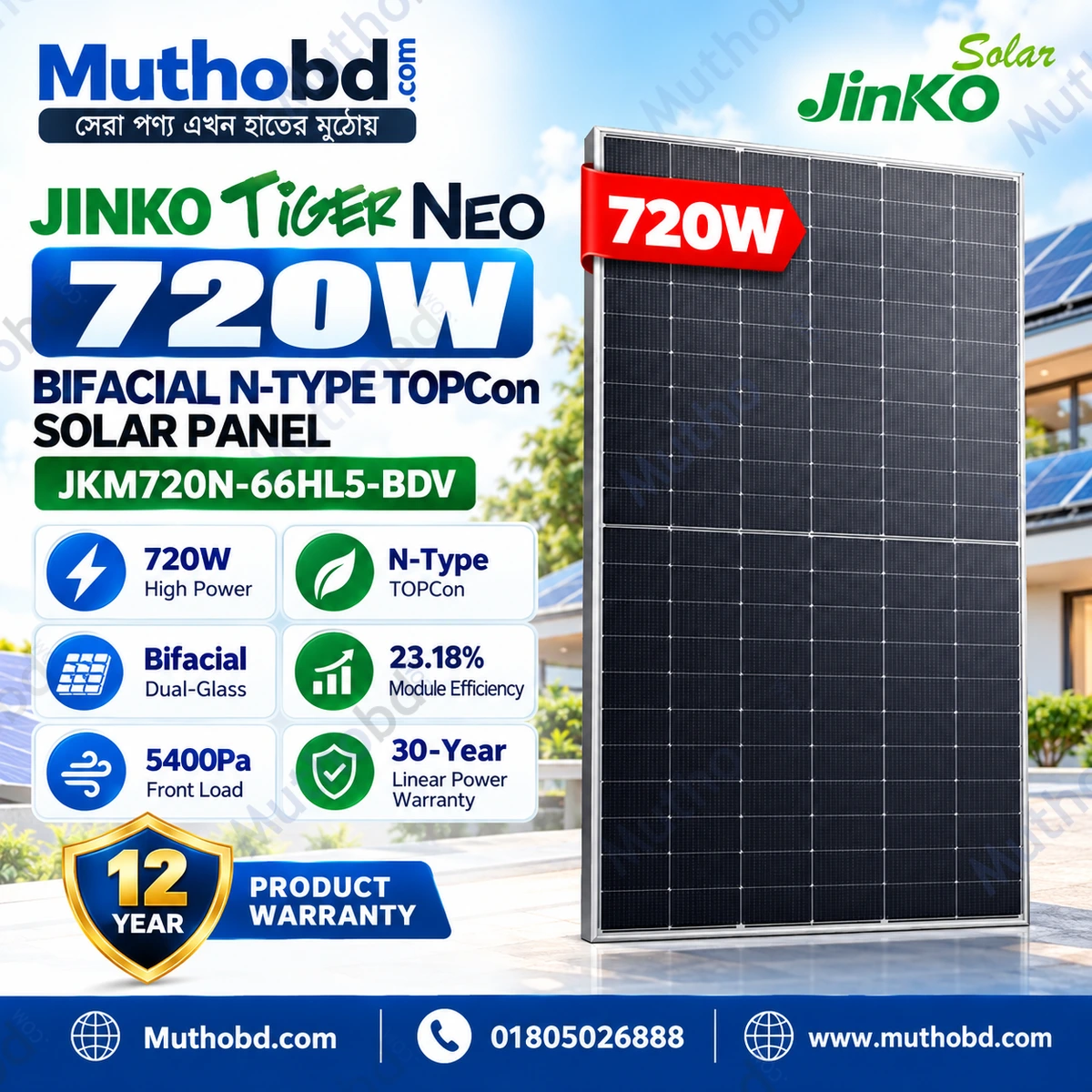

Jinko 720W Tiger Neo Bifacial N-Type TOPCon Solar Panel JKM720N-66HL5-BDV
In Stock
Key Features
720W High Power Output: Delivers 720W rated output under standard test conditions, with 23.18% module efficiency.
N-Type TOPCon Technology: Designed for efficient energy generation and reduced light-induced degradation compared with conventional P-type modules.
Bifacial Dual-Glass Design: Generates power from front-side sunlight and can capture additional reflected light from the rear.
SMBB and HOT 3.0 Technology: Advanced cell and module technologies designed to improve energy collection and reliability.
High Mechanical Load Ratings: Supports specified front-side loading of 5400Pa and rear-side loading of 2400Pa.
Long-Term Warranty: Includes a 12-year product warranty and 30-year linear power warranty, as supplied.
WhatsApp+880 1805 026888
Payment Option:
Payment options will be updated soon.
Product URL: https://www.muthobd.com/product/jinko-720-w-tiger-neo-bifacial-n-type-top-con-solar-panel-jkm720-n-66-hl5-bdv
Specification
| Specification | Details |
|---|---|
| Brand | Jinko Solar |
| Product Series | Tiger Neo |
| Model | JKM720N-66HL5-BDV |
| Product Type | Bifacial Solar Panel |
| Cell Technology | N-Type TOPCon |
| Cell Type | N-Type Monocrystalline |
| Number of Cells | 132 (66 × 2) |
| Rated Power (STC) | 720W |
| Module Efficiency | 23.18% |
| SREDA Approval | Listed as approved for the Net Metering Program; verify current approval status |
| Origin | Not Specified |
| Warranty | 12-Year Product Warranty / 30-Year Linear Power Warranty |
| Specification | Value |
|---|---|
| Maximum Power (Pmax) | 720W |
| Maximum Power Voltage (Vmp) | 40.89V |
| Maximum Power Current (Imp) | 17.61A |
| Open-Circuit Voltage (Voc) | 49.04V |
| Short-Circuit Current (Isc) | 18.67A |
| Power Tolerance | 0 to +3% |
| Temperature Coefficient of Pmax | -0.29%/°C |
| Temperature Coefficient of Voc | -0.25%/°C |
| Temperature Coefficient of Isc | +0.045%/°C |
| Specification | Value |
|---|---|
| Maximum Power (Pmax) | 795W |
| Maximum Power Voltage (Vmp) | 40.92V |
| Maximum Power Current (Imp) | 19.43A |
| Open-Circuit Voltage (Voc) | 48.99V |
| Short-Circuit Current (Isc) | 20.63A |
| Voc Bifaciality Coefficient | 98 ± 5% |
| Isc Bifaciality Coefficient | 80 ± 5% |
| Pmax Bifaciality Coefficient | 80 ± 5% |
| STC | Front irradiance 1000W/m², cell temperature 25°C and AM 1.5. BNPI: Front irradiance 1000W/m², rear irradiance 135W/m², cell temperature 25°C and AM 1.5. |
| Specification | Details |
|---|---|
| Dimensions (L × W × H) | 2384 × 1303 × 33mm |
| Weight | 37.5kg |
| Front Glass | 2.0mm, anti-reflection coating |
| Rear Glass | 2.0mm, heat-strengthened glass |
| Frame | Anodized aluminium alloy |
| Junction Box | IP68 rated |
| Protection Class | Class III |
| IEC Fire Type | Class C |
| Connector Type | JK03M / JK03M2; MC4 and MC4-EVO2 available upon request |
| Output Cable | 4.0mm² |
| Positive Cable Length | 400mm |
| Negative Cable Length | 200mm |
| Cable Customization | Available, as specified |
| Specification | Details |
|---|---|
| Operating Temperature | -40°C to +70°C |
| Maximum System Voltage | 1500V DC (IEC) |
| Maximum Series Fuse Rating | 35A |
| Front-Side Maximum Static Load | 5400Pa |
| Rear-Side Maximum Static Load | 2400Pa |
| Anti-PID Protection | Guaranteed, as specified |
| Snow Load | 5400Pa, as supplied |
| Wind Load | 2400Pa, as supplied |
| Specification | Details |
|---|---|
| Pallet Dimensions | 1325 × 1121 × 2496mm |
| Modules per Pallet | 33 pieces |
| Modules per 40-foot HQ Container | 594 pieces |
| Specification | Details |
|---|---|
| Product Warranty | 12 Years |
| Linear Power Warranty | 30 Years |
| First-Year Power Degradation | ≤1% |
| Annual Degradation (Years 2–30) | ≤0.40% per year |
| Guaranteed Power at Year 30 | 87.4% of nominal power |
| Certifications Listed IEC 61215 | 2021, IEC 61730:2023, IEC 61701, IEC 62716, IEC 60068, IEC 62804 |
| Management System Standards ISO 9001 | 2015, ISO 14001:2015, ISO 45001:2018 |
| Other Certifications Listed | TÜV SÜD, CE, PV CYCLE |
Detailed description
Jinko 720W Tiger Neo Solar Panel Price in Bangladesh
The Jinko 720W Tiger Neo JKM720N-66HL5-BDV Bifacial Solar Panel is a high-power photovoltaic module designed for commercial, industrial and large-scale solar installations. It combines N-Type TOPCon cell technology, a bifacial dual-glass structure and advanced module engineering to support efficient solar electricity generation.
With a rated power output of 720W and a stated module efficiency of 23.18%, this panel is suitable for project developers, EPC contractors, commercial property owners and solar installers seeking high-capacity modules. The supplied product information also identifies it as SREDA-approved for the Net Metering Program; buyers should verify the current approval status and applicable documentation before installation.
N-Type TOPCon Technology for Efficient Solar Generation
The Jinko Tiger Neo module uses N-Type monocrystalline TOPCon solar cells arranged in a 132-cell configuration (66 × 2). N-Type TOPCon technology is designed to improve solar energy conversion and reduce light-induced degradation compared with conventional P-type cell technologies.
The panel incorporates SMBB and HOT 3.0 technologies, which are intended to improve light collection, electrical current collection and module performance. Its stated STC efficiency of 23.18% helps project designers evaluate the panel's power output relative to its surface area.
Bifacial Dual-Glass Solar Panel
The JKM720N-66HL5-BDV uses a bifacial design that can collect sunlight from both the front and rear surfaces. Its dual-glass construction includes 2.0mm anti-reflective front glass and 2.0mm heat-strengthened rear glass.
The supplied BNPI specifications list a maximum power output of 795W under test conditions that include additional rear-side irradiance. This is not the panel's standard STC rating; its rated STC output remains 720W. Actual rear-side contribution depends on ground reflectivity, mounting height, row spacing, shading and installation design.
Bifacial modules can be useful for suitable ground-mounted solar projects where reflected light can reach the rear surface.
Electrical Performance and System Compatibility
Under standard test conditions, the panel has a maximum power voltage of 40.89V, maximum power current of 17.61A, open-circuit voltage of 49.04V and short-circuit current of 18.67A.
The maximum system voltage is specified as 1500V DC under IEC conditions, with a maximum series fuse rating of 35A. These ratings help system designers plan string configurations and protection arrangements. The inverter's MPPT voltage range, maximum input current, maximum short-circuit current and system voltage limits must all be checked before installation.
Durable Construction for Solar Projects
The module measures 2384 × 1303 × 33mm and weighs 37.5kg. It features an anodized aluminium alloy frame and an IP68-rated junction box. The supplied mechanical load ratings are 5400Pa on the front side and 2400Pa on the rear side.
The stated operating temperature range is -40°C to +70°C. Correct mounting, suitable clamps, structural calculations and compliance with installation instructions remain essential for long-term performance.
Warranty and Long-Term Performance
The supplied warranty information includes a 12-year product warranty and a 30-year linear power warranty. The stated first-year degradation is no more than 1%, followed by annual degradation of no more than 0.40% from years 2 through 30. The supplied information states a guaranteed power level of 87.4% of nominal power at year 30.
Customers should review the manufacturer's official warranty documents and confirm the terms applicable to their purchase.
Applications of the Jinko 720W Solar Panel
This panel may be considered for:
Commercial rooftop solar installations
Industrial solar power systems
Utility-scale solar projects
Ground-mounted bifacial solar arrays
Suitable net-metering installations
Large solar projects where high-wattage modules can reduce the number of panels required
Buy Jinko 720W Tiger Neo Solar Panels from MuthoBD.com
The Jinko 720W Tiger Neo JKM720N-66HL5-BDV offers high rated output, bifacial energy-generation capability and long-term warranty coverage according to the supplied specifications. Before purchasing, confirm the current price, stock availability, SREDA approval documentation, connector configuration and compatibility with your inverter and mounting structure.
- The rated maximum power is 720W under standard test conditions (STC). The supplied BNPI test specifications list 795W under additional rear-side irradiance conditions.
