Sorotec REVO VM II PRO 3.2KW Solar Inverter
In Stock
Key Features
3200W rated output power with 6400VA surge capacity.
24VDC battery system.
Pure sine wave AC output.
MPPT charge controller rated at 80A, as provided.
230VAC output with 50Hz/60Hz auto-sensing input frequency.
Two-year warranty as specified in the product details.
WhatsApp+880 1805 026888
Payment Option:
Payment options will be updated soon.
Product URL: https://www.muthobd.com/product/sorotec-revo-vm-ii-pro-3-2-kw-solar-inverter
Specification
| Specification | Details |
|---|---|
| Brand | Sorotec |
| Model | REVO VM II PRO 3.2KW |
| Product Type | Solar Inverter |
| Rated Capacity | 3200W / 3200VA |
| System Voltage | 24VDC |
| Maximum Solar Input Power | 3500W (as provided) |
| Waveform | Pure Sine Wave |
| Charge Controller | MPPT 80A (as provided) |
| Display | Not specified |
| Country of Origin | China |
| Warranty | 2 Years |
| Specification | Details |
|---|---|
| Rated AC Voltage | 230VAC (220VAC / 240VAC) |
| Selectable Voltage Range | 170–280VAC (Personal Computers); 90–280VAC (Home Appliances) |
| Frequency Range | 50Hz / 60Hz, auto-sensing |
| Specification | Details |
|---|---|
| Rated Output Power | 3200W |
| Surge Power | 6400VA |
| AC Voltage Regulation (Battery Mode) | 230VAC ± 5% |
| Peak Efficiency | 93% |
| Transfer Time | 10ms (Personal Computers); 20ms (Home Appliances) |
| Waveform | Pure Sine Wave |
| Specification | Details |
|---|---|
| Rated Battery Voltage | 24VDC |
| Floating Charge Voltage | 27VDC |
| Overcharge Protection Voltage | 33VDC |
| Specification | Details |
|---|---|
| Color | As shown in product picture |
| Product Series | REVO VM II PRO |
| Product Category | Solar Inverter |
Detailed description

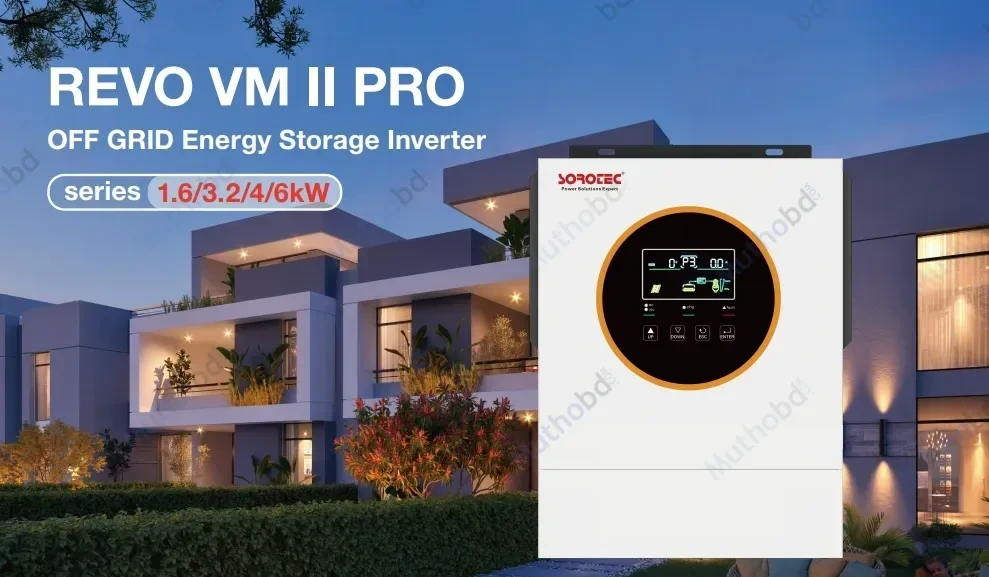

Sorotec REVO VM II PRO 3.2KW Solar Inverter
The Sorotec REVO VM II PRO 3.2KW Solar Inverter is designed for solar power and battery backup applications that require stable AC output. It has a rated capacity of 3200W/3200VA and operates with a 24VDC battery system. The supplied product details specify a maximum solar input of 3500W and an 80A MPPT charge controller.
With pure sine wave output and automatic 50Hz/60Hz input frequency sensing, this inverter is an option for compatible home and small-office power systems. Before purchasing, check the inverter's specifications against your solar panels, battery bank and connected appliances.
3200W Output with Pure Sine Wave
The REVO VM II PRO 3.2KW is rated at 3200W and has a listed surge capacity of 6400VA. Its pure sine wave output is designed for compatible electrical equipment that requires an AC waveform similar to utility power.
The supplied datasheet specifies battery-mode voltage regulation of 230VAC ±5%. The rated AC voltage is 230VAC, with 220VAC and 240VAC options also listed. Check appliance power consumption and starting current to ensure the inverter can handle the intended load.
Solar Charging and MPPT Controller
The product information lists a maximum solar input power of 3500W and an MPPT charge controller rated at 80A. Select solar panels and configure the PV array according to the inverter's official electrical limits.
The provided REVO VM II PRO series datasheet does not show the exact model's maximum PV voltage or MPPT operating voltage range. Confirm these details with the supplier before designing the solar array.
24V Battery System
This inverter uses a 24VDC battery system. The supplied series datasheet lists a floating charge voltage of 27VDC and an overcharge protection voltage of 33VDC for the 24V model group.
Battery compatibility, charging settings and battery capacity should be verified before installation. For lithium battery systems, confirm that the battery chemistry and charging profile are supported by the exact inverter model.
AC Input and Transfer Time
The datasheet lists an AC input voltage of 230VAC, with 220VAC and 240VAC options. Its selectable voltage range is 170–280VAC for personal computers and 90–280VAC for home appliances. The input frequency range is 50Hz/60Hz with automatic sensing.
The stated transfer time is 10ms for personal computers and 20ms for home appliances. Actual results depend on operating conditions and system configuration.
Buy Sorotec REVO VM II PRO 3.2KW from Muthobd.com
Muthobd.com offers solar products and power solutions for customers in Bangladesh. The Sorotec REVO VM II PRO 3.2KW is an option for customers planning a compatible 24V solar inverter system for home or small-office applications.
The product details specify a two-year warranty. Before ordering, confirm the exact model, PV input limits, battery compatibility and warranty terms with the supplier. Professional installation is recommended for safe and reliable operation.
- The model is REVO VM II PRO 3.2KW.
