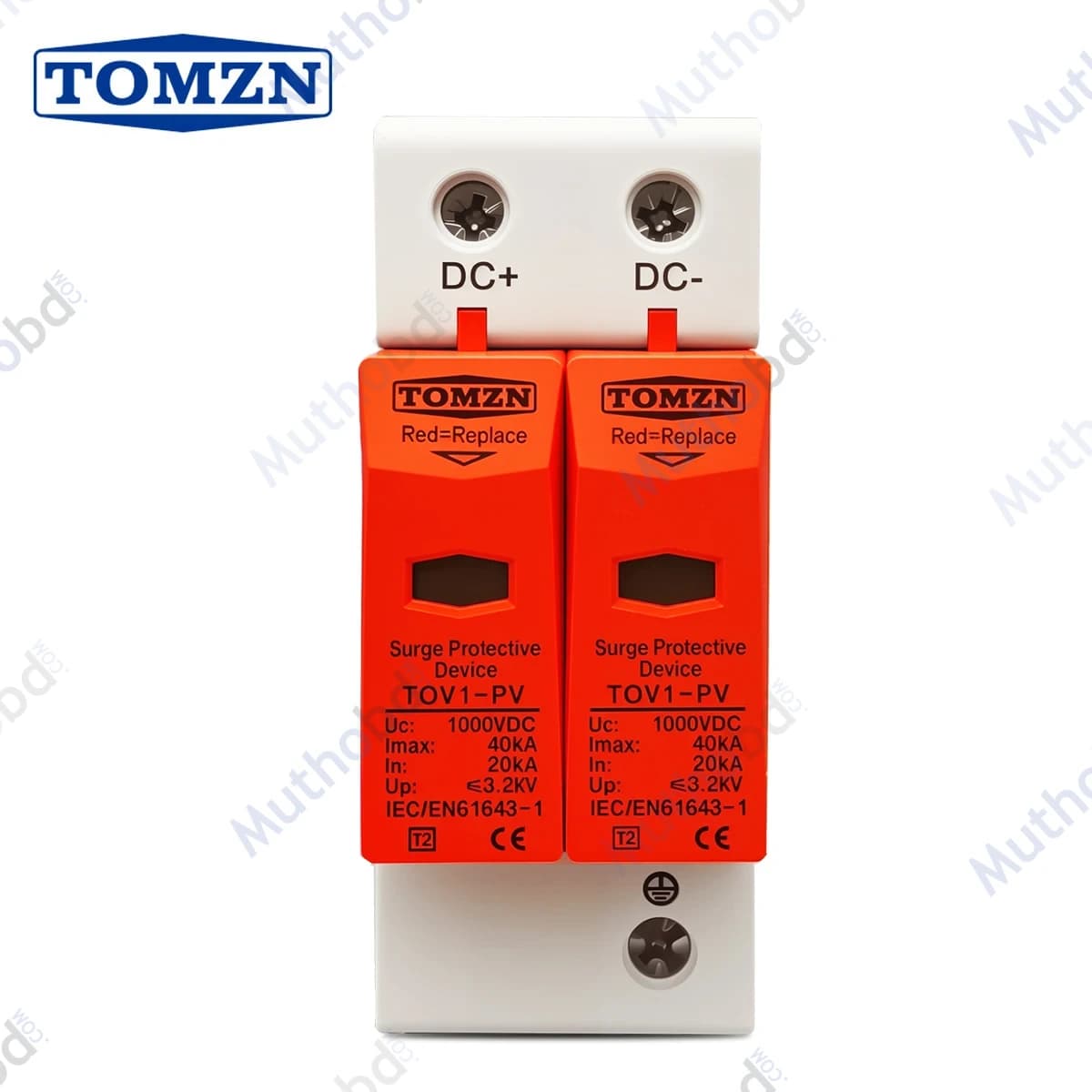

tomzn SPD for Solar PV System 2P 1000V DC Surge Protection Device – TOMZN TOV1-PV

SPD for Solar PV System 2P 1000V DC Surge Protection Device – TOMZN TOV1-PV

In Stock

৳ 1,850৳ 2,500

Key Features

  • ⚡ 1000V DC rated surge protection for solar PV systems

  • 🔌 2P design protects both positive & negative DC lines

  • 🛡 40kA surge discharge capacity for lightning protection

  • ⚡ Ultra-fast response time (≤25ns) for instant safety

  • 🔧 DIN rail plug-in design for easy installation & maintenance

  WhatsAppPhone Call

+880 1805 026888

Payment Option:

Payment options will be updated soon.

Quantity :

Product URL: https://www.muthobd.com/product/spd-for-solar-pv-system-2-p-1000-v-dc-surge-protection-device-tomzn-tov1-pv

Specification

⚡ General Information
BrandTOMZN
ModelTOV1-PV
Product TypeSurge Protection Device (SPD)
ApplicationSolar PV System / DC Protection
🔌 Electrical Rating
Nominal Voltage1000V DC
Poles2P (Positive + Negative Protection)
Discharge Current (Imax)40kA
Protection Level≤ 3.2kV
🛡 Protection Features
Surge Protection TypeLightning & Switching Surge Protection
Response Time≤ 25ns
Thermal ProtectionBuilt-in disconnection system
Status IndicatorGreen / Red LED
🧩 Installation
Mounting TypeDIN Rail (35mm)
Module TypePlug-in Replaceable
Wiring TypePV DC System Compatible
🌡 Environmental
Operating Temperature-40°C to +85°C
UsageIndoor / Electrical Enclosure / Solar Box
Protection ClassIP20
Product Description

Detailed description

TOMZN TOV1-PV 2P 1000V DC SPD is a surge protection device designed for solar PV systems. It protects inverters, batteries, and panels from lightning and voltage surges, ensuring safe and stable system operation.
