SUNSHINE 100W 12V Monocrystalline Solar Panel SS-100W-M

SUNSHINE 100W 12V Monocrystalline Solar Panel

The SUNSHINE 100W Germany Cell 12V Mono Solar Panel SS-100W-M is designed for small off-grid solar systems that require a dependable source of renewable electricity. Featuring monocrystalline Germany cell technology and a modern MBB (Multi-Busbar) design, this solar module is suitable for compatible 12V battery charging applications and other small-scale solar power setups.

With a rated output of 100W, the SUNSHINE solar panel can be considered for solar lighting, compact battery charging systems, low-power equipment and remote installations. Actual power generation depends on sunlight availability, panel orientation, shading, temperature and the specifications of the connected charge controller and battery.

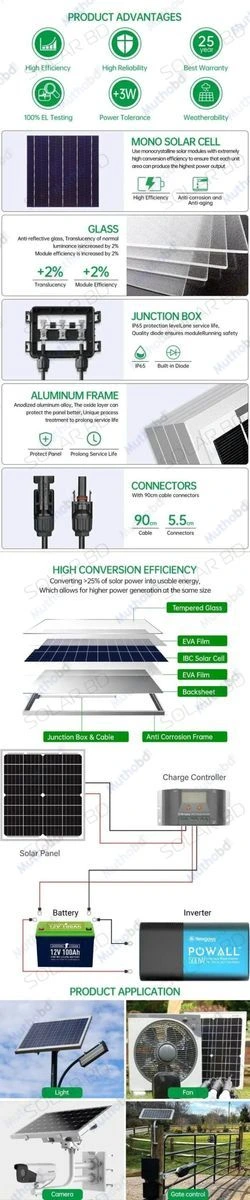

Monocrystalline Germany Cell Technology

The SUNSHINE SS-100W-M uses monocrystalline solar cell technology designed to convert sunlight into DC electricity. Its MBB design is intended to improve light absorption and reduce internal power losses, supporting efficient energy generation within the panel's rated output.

The manufacturer also states that this panel offers excellent low-light performance. This feature may be useful during cloudy conditions or periods of weaker sunlight. However, actual energy production will decrease when available solar irradiance is reduced.

Electrical Performance for 12V Solar Systems

The panel has a maximum-power voltage (Vmp) of 18V and a maximum-power current (Imp) of 5.55A. Its open-circuit voltage (Voc) is 21.06V, while its short-circuit current (Isc) is 6.49A.

These ratings are important when selecting a compatible solar charge controller. Although the panel is intended for 12V nominal battery systems, the controller must match the battery chemistry, charging requirements and panel electrical characteristics. A suitable controller regulates charging and helps protect the battery.

The specified maximum system voltage is 1500V, with a maximum series fuse rating of 25A. These are component ratings for system design and should not be interpreted as a recommendation to connect the panel directly to a battery without charge regulation.

Designed for Challenging Environments

According to the supplied product information, the SUNSHINE SS-100W-M features salt mist and ammonia resistance. These characteristics may be relevant when considering installations exposed to demanding environmental conditions.

The product information also identifies PID-free technology, which is intended to support long-term performance stability. For reliable operation, the panel should be mounted securely and installed using suitable cables, connectors and electrical protection.

With dimensions of 1000 × 600 × 30 mm, this panel can be considered for installations where a compact solar module is preferred. Its suitability for a particular project will depend on available mounting space and daily energy requirements.

Suitable Applications

The SUNSHINE 100W solar panel may be suitable for:

• Small off-grid solar power systems

• Compatible 12V battery charging setups

• Solar lighting applications

• Low-power devices and remote equipment

• Small renewable energy projects

Before selecting the panel, estimate the connected equipment's daily energy consumption and consider the available sunlight, battery capacity and charge controller rating.

25-Year Linear Power Warranty

SUNSHINE specifies a 25-year linear power output warranty for the SS-100W-M. Buyers should review the applicable warranty documentation to confirm coverage, performance guarantees and claim requirements.

For customers in Bangladesh looking for a compact solar panel for small off-grid applications, the SUNSHINE SS-100W-M offers 100W rated output, monocrystalline cell technology, MBB design and stated environmental resistance features. Explore the SUNSHINE 100W Solar Panel at Muthobd.com for your solar power requirements.
