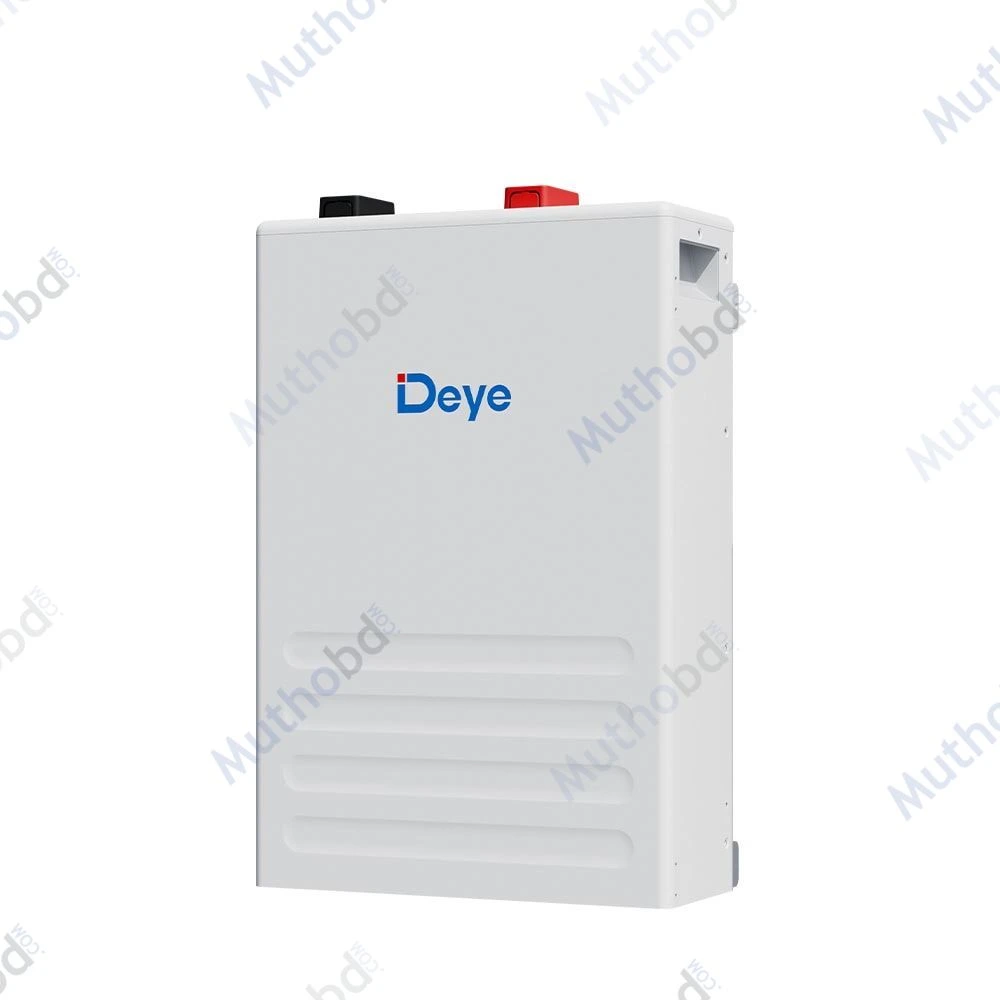

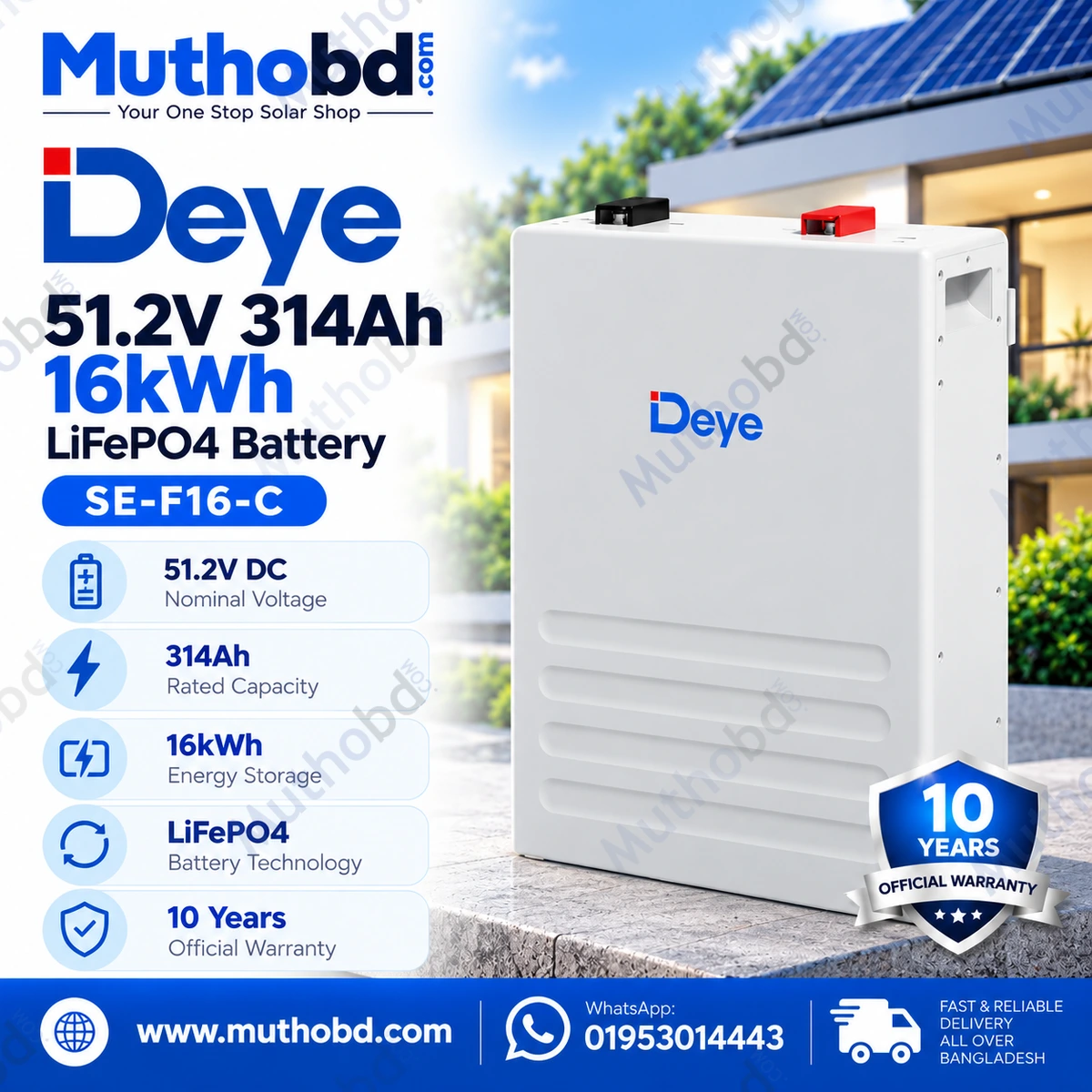

Deye SE-F16-C 51.2V 314Ah 16kWh LiFePO4 Lithium Battery

Deye SE-F16-C 51.2V 314Ah 16kWh LiFePO4 Battery

The Deye SE-F16-C 51.2V 314Ah 16kWh LiFePO4 Battery is an energy storage solution designed for compatible solar power systems, hybrid inverters and battery-based backup installations. With a nominal voltage of 51.2V DC, a rated capacity of 314Ah and nominal energy of 16kWh, it offers substantial storage capacity for residential and commercial applications.

16kWh Nominal Energy Storage

The Deye SE-F16-C provides 16kWh of nominal energy storage. Its 51.2V DC nominal voltage and 314Ah rated capacity make it suitable for compatible battery-based energy storage systems.

Actual usable energy and backup duration depend on the permitted depth of discharge, inverter efficiency, connected load and operating conditions. Confirm compatibility with your inverter before installation.

LiFePO4 Battery with 6,000-Cycle Life

The supplied specifications state a cycle life of 6,000 cycles at 90% depth of discharge (DOD). This indicates the stated cycle-life performance under specified testing conditions.

Actual battery lifespan depends on charging and discharging practices, operating temperature, current levels and installation conditions. Following the manufacturer's instructions helps support reliable long-term performance.

High Discharge Current

The supplied product information lists two maximum discharge current values: 160A and 230A. Because these values differ, the correct continuous or maximum discharge rating should be confirmed from the official datasheet before purchasing or designing the system.

The available output power depends on battery voltage, the supported discharge current, inverter compatibility and operating conditions. Correct cable sizing and protective devices are essential for safe operation.

LCD Display and Bluetooth App Monitoring

The SE-F16-C features an LCD display that provides state-of-charge (SOC) information and fault codes. This helps users check the battery's charge status and review displayed fault information.

Bluetooth app monitoring provides access to supported battery information through a compatible mobile application. Confirm application compatibility and available monitoring features with the manufacturer.

CAN 2.0 and RS485 Communication

The battery supports CAN 2.0 and RS485 communication interfaces for use with compatible inverters and energy management systems. These communication connections can help the battery and inverter exchange operating information and coordinate battery management.

Before installation, verify that the selected inverter supports the SE-F16-C model and the required communication protocol.

Expandable Energy Storage up to 32 Units

The supplied specifications state that up to 32 units can be connected in parallel. Parallel expansion can increase nominal energy storage when the manufacturer's requirements are followed.

For reference, 32 batteries rated at 16kWh each represent a theoretical combined nominal energy capacity of 512kWh. Actual usable energy and supported system configuration depend on manufacturer limits and installation design.

A qualified installer should verify the approved number of batteries, inverter capacity, communication configuration, cabling and protection requirements before expanding the system.

Flexible Wall, Floor and Stack Mounting

The supplied product information lists three mounting options:

• Wall-mounted

• Floor-mounted

• Stack-mounted

These options provide flexibility for different installation spaces. Follow the official mounting instructions, load-bearing requirements, clearance recommendations and electrical safety guidelines.

Applications for Solar and Backup Power Systems

Depending on inverter compatibility and project requirements, the Deye SE-F16-C may be considered for:

• Residential solar energy storage

• Compatible hybrid inverter systems

• Home backup power installations

• Commercial energy storage

• Large or expandable battery storage systems

Backup runtime depends on usable battery capacity, connected load and system efficiency. Proper battery sizing should account for energy consumption, required backup duration and permitted discharge limits.

10-Year Official Warranty

The supplied product information states a 10-year official warranty. Confirm warranty terms, eligibility requirements, installation conditions and service arrangements with the authorized seller before purchase.

With its 16kWh nominal capacity, LiFePO4 chemistry, LCD display, Bluetooth monitoring and parallel expansion capability, the Deye SE-F16-C is an option for users seeking substantial battery storage for a compatible solar or backup power system.
