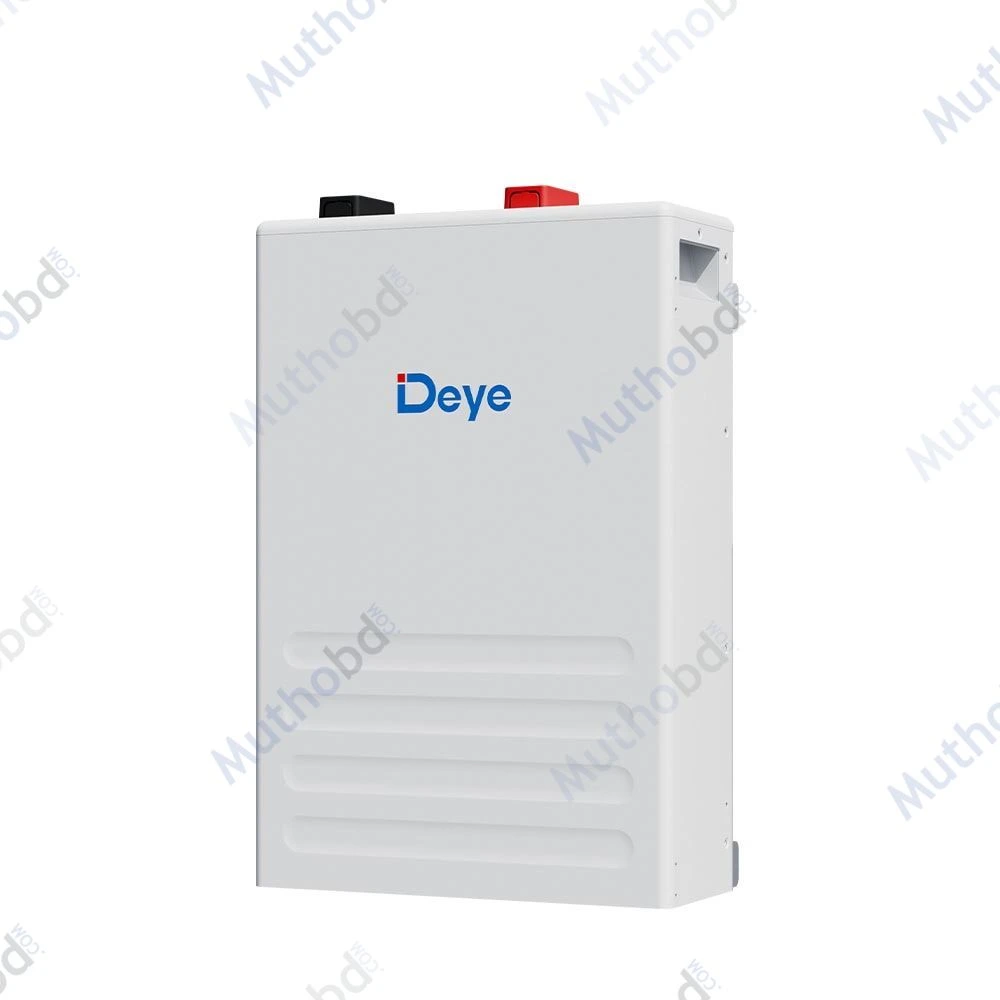

Deye SE-F16 MAX-C 51.2V 314Ah 16kWh LiFePO4 Lithium Battery

Deye SE-F16 MAX-C 51.2V 314Ah 16kWh LiFePO4 Battery

The Deye SE-F16 MAX-C 51.2V 314Ah 16kWh LiFePO4 Battery is a high-capacity energy storage solution designed for compatible solar power systems, hybrid inverters and battery-based backup installations. With a nominal voltage of 51.2V DC, a rated capacity of 314Ah and 16kWh of nominal energy, it supports energy storage applications for residential and commercial projects.

16kWh Nominal Energy Storage

The Deye SE-F16 MAX-C provides 16kWh of nominal energy storage. Its 51.2V nominal voltage and 314Ah rated capacity make it suitable for compatible battery-based energy storage systems.

Actual usable energy and backup duration depend on the permitted depth of discharge, inverter efficiency, connected load and operating conditions. Verify compatibility with the selected inverter before installation.

LiFePO4 Battery with 8,000-Cycle Life

This model is specified for 8,000 cycles at 90% depth of discharge (DOD). Lithium iron phosphate (LiFePO4) technology is commonly used in energy storage applications that require repeated charging and discharging.

Actual battery lifespan depends on operating temperature, charging and discharging practices, current levels and other conditions. The stated cycle life should be understood according to the manufacturer's test conditions.

High Charging and Discharging Current

The supplied specifications list:

• Maximum charge current: 160A

• Maximum discharge current: 230A

These current ratings define the stated charging and discharging limits. Actual power availability depends on battery voltage, inverter compatibility, system configuration and operating conditions.

Use correctly rated cables, protective devices and compatible inverter settings. A qualified installer should verify the battery's current limits before commissioning.

IP65 Enclosure Protection

The Deye SE-F16 MAX-C features a stated IP65 enclosure rating. This indicates protection against dust ingress and water jets under defined test conditions. It does not mean the battery can be submerged in water.

Follow the manufacturer's installation instructions and environmental requirements to maintain the enclosure's intended protection.

LCD Display and Bluetooth App Monitoring

The battery includes an LCD display showing state-of-charge (SOC) information and fault codes. This helps users check the battery's status and review displayed fault information.

Bluetooth app monitoring provides access to supported battery information through a compatible application. Confirm the available monitoring features and application compatibility with the manufacturer.

CAN 2.0 and RS485 Communication

The SE-F16 MAX-C supports CAN 2.0 and RS485 communication interfaces for use with compatible inverters and energy management systems. These interfaces can help coordinate battery operation and exchange relevant status information.

Before purchasing, confirm that the chosen inverter supports the SE-F16 MAX-C model and its required communication protocol.

Expandable Energy Storage up to 32 Units

The supplied specifications state that up to 32 units can be connected in parallel. Parallel expansion can increase nominal energy storage when the manufacturer's requirements are followed.

For reference, 32 batteries rated at 16kWh each represent a theoretical combined nominal capacity of 512kWh. Actual usable energy and supported system capacity depend on manufacturer limits and installation design.

A qualified installer should verify the approved battery quantity, inverter compatibility, wiring, protective devices and communication setup before expanding the system.

Suitable Applications

Depending on system design and inverter compatibility, the Deye SE-F16 MAX-C may be considered for:

• Residential solar energy storage

• Hybrid inverter battery systems

• Home backup power installations

• Commercial energy storage projects

• Large-scale or expandable battery storage systems

Backup runtime depends on usable battery energy, connected load and conversion losses. Proper system sizing should account for actual electricity consumption and the required backup duration.

10-Year Official Warranty

The supplied product information includes a 10-year official warranty. Confirm warranty coverage, eligibility requirements, installation conditions and service arrangements with the authorized seller before purchase.

With 16kWh of nominal energy, an 8,000-cycle rating at 90% DOD, IP65 protection and multiple communication options, the Deye SE-F16 MAX-C is an option for customers seeking expandable energy storage for compatible solar and backup power systems.
