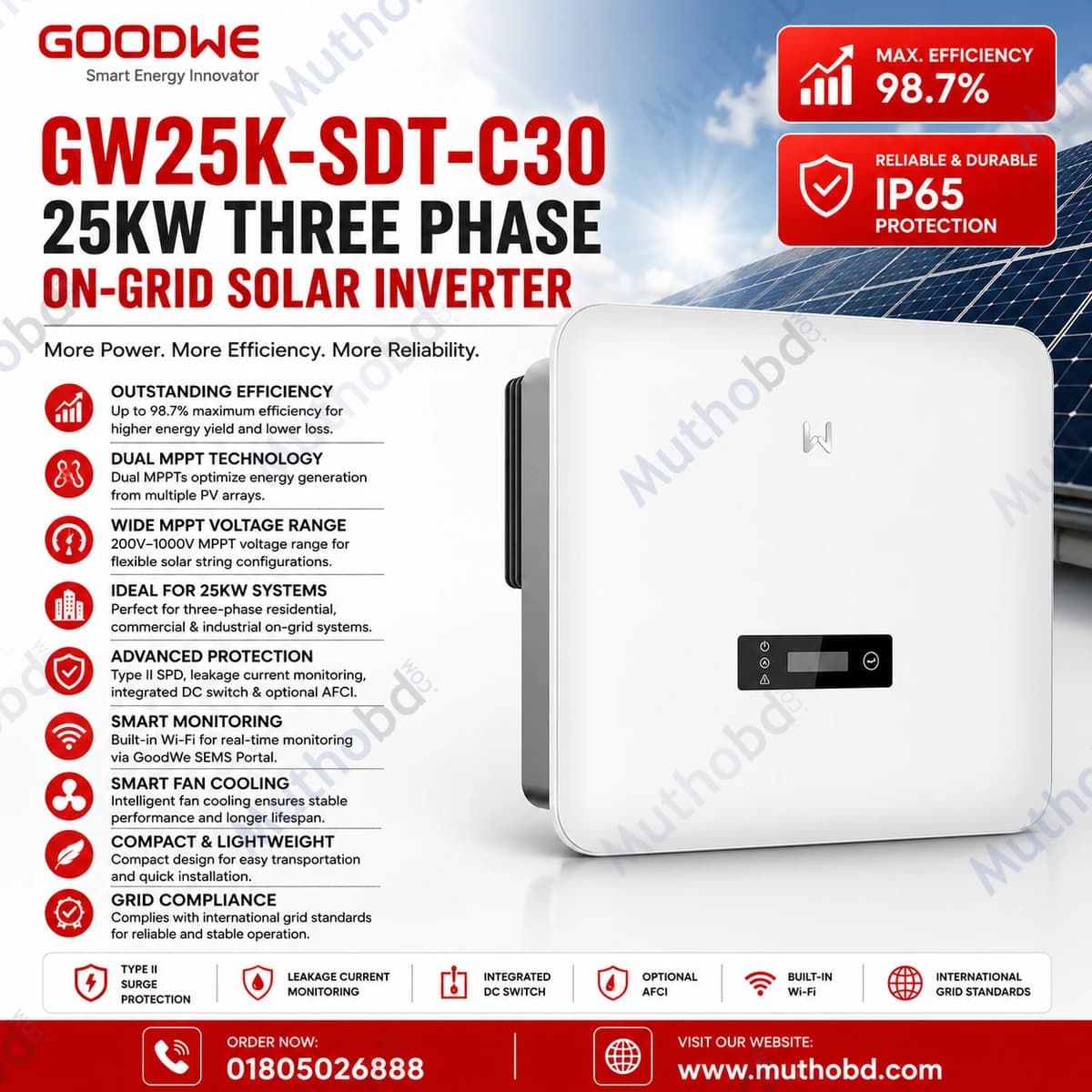

GoodWe GW25K-SDT-C30 25KW Three Phase On-Grid Solar Inverter
In Stock
Key Features
Outstanding 98.7% maximum efficiency for higher solar energy conversion and reduced power loss.
Dual MPPT technology optimizes energy generation from multiple PV arrays with different orientations.
Wide 200V–1000V MPPT voltage range supports flexible solar string configurations.
Designed for 25KW three-phase residential, commercial, and industrial grid-connected solar systems.
IP65-rated enclosure provides excellent protection against dust, rain, and harsh outdoor environments.
Smart fan cooling ensures stable performance and extends inverter lifespan.
Advanced protection including Type II surge protection, leakage current monitoring, integrated DC switch, and optional AFCI.
Built-in Wi-Fi enables real-time monitoring through the GoodWe SEMS Portal.
Compact and lightweight design simplifies transportation and installation.
Complies with international grid standards for reliable and stable grid operation.
WhatsApp+880 1805 026888
Payment Option:
Payment options will be updated soon.
Product URL: https://www.muthobd.com/product/good-we-gw25-k-sdt-c30-25-kw-three-phase-on-grid-solar-inverter
Specification
| Brand | GoodWe |
|---|---|
| Model | GW25K-SDT-C30 |
| Product Type | Three Phase On-Grid Solar Inverter |
| Inverter Type | Grid-Tied Solar Inverter |
| Application | Residential, Commercial & Industrial Solar Systems |
| Grid Connection | 3-Phase |
| Topology | Transformerless |
| Warranty | 5 Years Standard (Extendable) |
| Maximum DC Input Power | 32500W |
|---|---|
| Maximum DC Input Voltage | 1100V |
| MPPT Voltage Range | 200V–1000V |
| Start-up Voltage | 180V |
| Nominal Input Voltage | 600V |
| Number of MPPTs | 2 |
| DC Input Strings per MPPT | 2 / 2 |
| Maximum Input Current per MPPT | 26A (13A per String) |
| Maximum Short Circuit Current per MPPT | 32.5A |
| Nominal AC Output Power | 25000W |
|---|---|
| Maximum AC Apparent Power | 27500VA |
| Maximum AC Output Current | 41.7A |
| Nominal AC Voltage | 3/N/PE, 230V/400V |
| AC Grid Frequency | 50Hz / 60Hz |
| Power Factor | Adjustable from 0.8 Leading to 0.8 Lagging |
| THDi | <3% |
| Maximum Efficiency | 98.7% |
|---|---|
| European Efficiency | 98.3% |
| DC Reverse Polarity Protection | Yes |
|---|---|
| AC Short Circuit Protection | Yes |
| Output Over Current Protection | Yes |
| Output Over Voltage Protection | Yes |
| Insulation Resistance Monitoring | Yes |
| Integrated DC Switch | Yes |
| Leakage Current Protection | Yes |
| Surge Protection | DC Type II / AC Type II |
| AFCI Protection | Optional |
| Dimensions (W × H × D) | 516 × 490 × 200 mm |
|---|---|
| Weight | 24 kg |
| Cooling | Smart Fan Cooling |
| Display | LED Indicators, Integrated LCD (Optional) |
| Operating Temperature | -30°C to +60°C |
|---|---|
| Relative Humidity | 0–95% (Non-condensing) |
| Ingress Protection | IP65 |
| Wi-Fi | Standard |
|---|---|
| LAN | Optional |
| 4G | Optional |
| RS485 | Standard |
Detailed description
GoodWe is one of the world's leading manufacturers of photovoltaic inverters, trusted for its innovative technology, high efficiency, and dependable performance. The GoodWe GW25K-SDT-C30 25KW Three Phase On-Grid Solar Inverter is engineered for commercial and industrial solar installations that demand reliable power conversion, intelligent monitoring, and superior energy efficiency.
Featuring a maximum efficiency of 98.7%, this inverter converts more solar energy into usable electricity, helping reduce electricity costs while maximizing return on investment. The dual MPPT architecture and wide 200V–1000V MPPT voltage range provide greater design flexibility, allowing multiple PV arrays to operate at their optimum performance even under varying sunlight conditions.
Designed for Bangladesh's climate, the GW25K-SDT-C30 features an IP65-rated enclosure, smart fan cooling, integrated safety protections, and built-in Wi-Fi monitoring. Whether installed on factories, office buildings, shopping centers, educational institutions, or large commercial facilities, it delivers stable and efficient grid-connected solar power generation.
Key Features
High Conversion Efficiency
The GoodWe GW25K-SDT-C30 achieves a maximum conversion efficiency of 98.7% with a European efficiency of 98.3%, minimizing energy losses and increasing overall solar system performance.
Dual MPPT Technology
Equipped with two independent Maximum Power Point Trackers, the inverter continuously optimizes the performance of multiple solar panel strings, maximizing energy production throughout the day.
Flexible PV System Design
The wide MPPT operating voltage range from 200V to 1000V allows installers to design longer PV strings and supports a variety of panel configurations, making installation more flexible and efficient.
Intelligent Remote Monitoring
Standard Wi-Fi connectivity enables seamless integration with the GoodWe SEMS Portal, allowing users to monitor power generation, inverter performance, energy statistics, and fault notifications from anywhere using a smartphone or computer.
Advanced Safety Protection
The inverter incorporates multiple protection mechanisms to ensure safe and reliable operation, including:
DC reverse polarity protection
AC short circuit protection
Output overcurrent protection
Output overvoltage protection
Integrated DC switch
Leakage current protection
Type II DC & AC surge protection
Insulation resistance monitoring
Optional AFCI protection
These features enhance system safety while protecting connected equipment from electrical faults.
Durable Outdoor Performance
Its IP65-rated enclosure protects against dust and water, while the smart fan cooling system maintains optimal operating temperatures for improved efficiency and long-term reliability in demanding environments.
Technical Highlights
25KW three-phase on-grid inverter
32.5KW maximum PV input power
98.7% maximum efficiency
Dual MPPT with two strings per tracker
Maximum DC input voltage of 1100V
Wide MPPT voltage range (200V–1000V)
Smart fan cooling system
Built-in Wi-Fi monitoring
Optional LAN and 4G communication
RS485 communication interface
IP65-rated weatherproof enclosure
Type II surge protection
Optional AFCI protection
Transformerless design
Applications
The GoodWe GW25K-SDT-C30 is suitable for a wide range of grid-connected solar projects, including:
Commercial buildings
Office complexes
Industrial factories
Manufacturing plants
Shopping malls
Educational institutions
Hospitals and healthcare facilities
Hotels and resorts
Agricultural solar projects
Large residential three-phase solar systems
Its advanced monitoring, high efficiency, and robust protection make it a dependable choice for demanding photovoltaic installations.
Why Choose This Product
The GoodWe GW25K-SDT-C30 combines industry-leading efficiency, intelligent energy management, and comprehensive safety features in a compact and durable design. Dual MPPT technology maximizes energy harvest, while built-in Wi-Fi simplifies system monitoring and maintenance.
Its high-quality components, weather-resistant construction, and advanced protection systems ensure long-term reliability, reduced maintenance costs, and stable power generation, making it an excellent investment for commercial and industrial solar projects.
Why Buy from MuthoBD
MuthoBD.com is a trusted supplier of original solar inverters, batteries, solar panels, and renewable energy products in Bangladesh.
When you purchase the GoodWe GW25K-SDT-C30 from MuthoBD, you receive:
100% Genuine GoodWe Products
Competitive Prices
Fast Nationwide Delivery
Secure Online Shopping
Professional Technical Consultation
Genuine Manufacturer Warranty
Reliable After-Sales Service
Expert Support for Solar System Planning
Choose MuthoBD for authentic solar products backed by dependable customer support and nationwide delivery.
- The GoodWe GW25K-SDT-C30 is a 25KW three-phase on-grid solar inverter designed to efficiently convert DC electricity from solar panels into AC power for commercial, industrial, and large residential grid-connected solar systems.
