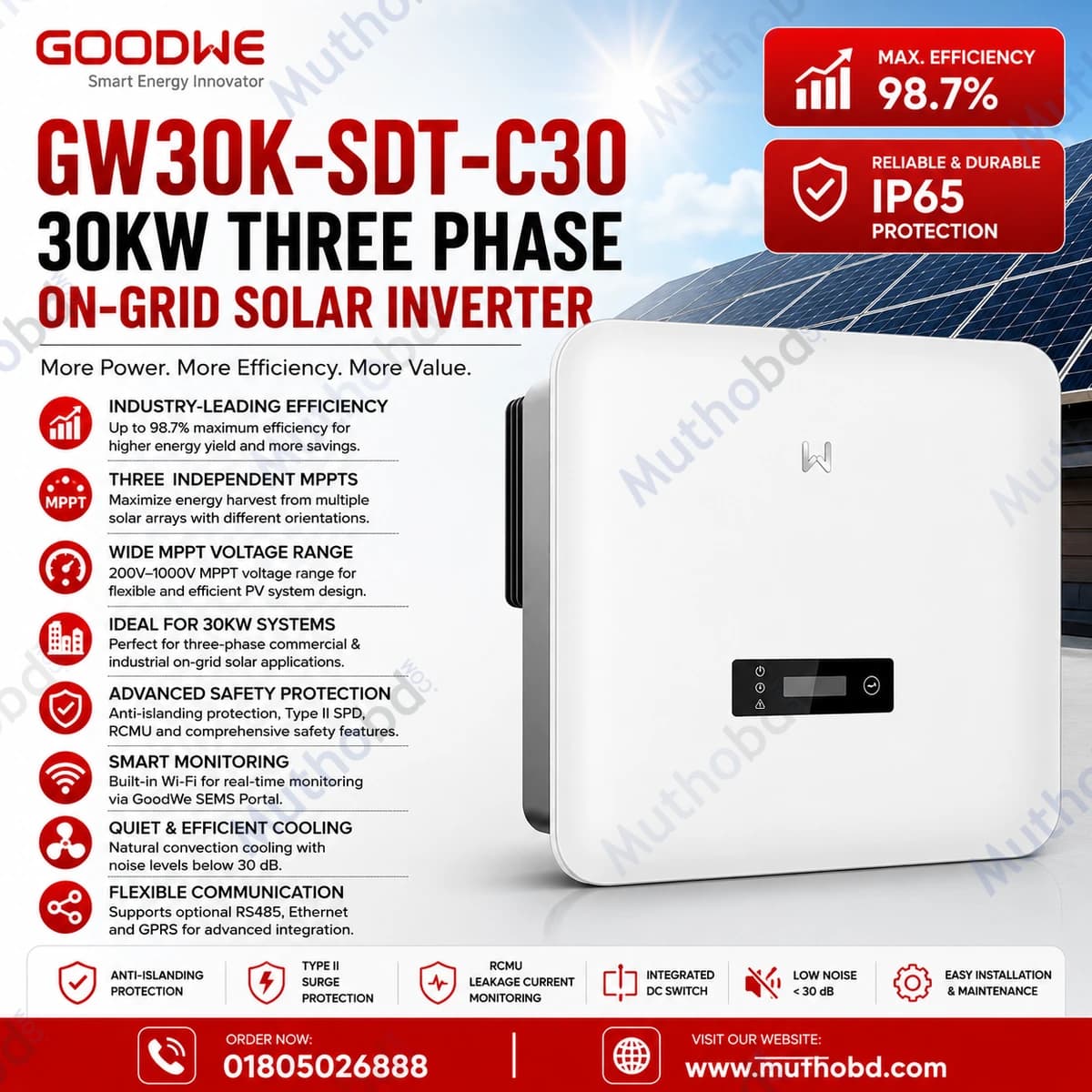

GoodWe GW30K-SDT-C30 30KW Three Phase On-Grid Solar Inverter

GoodWe is a globally trusted manufacturer of high-performance photovoltaic inverters, known for delivering innovative technology, outstanding efficiency, and dependable reliability. The GoodWe GW30K-SDT-C30 30KW Three Phase On-Grid Solar Inverter is specifically designed for medium to large-scale commercial and industrial solar power projects where maximum energy production and long-term operational stability are essential.

With a remarkable 98.7% maximum efficiency and 98.3% European efficiency, this inverter converts more solar energy into usable electricity while minimizing conversion losses. Its three independent MPPTs and wide 200V–1000V MPPT voltage range provide exceptional flexibility for solar array design, ensuring optimal performance even when panel orientations or sunlight conditions vary.

Built for Bangladesh's demanding climate, the GW30K-SDT-C30 features an IP65-rated enclosure, natural convection cooling, advanced safety protections, and integrated Wi-Fi monitoring. Whether installed on factories, office complexes, shopping malls, educational institutions, or industrial facilities, it provides reliable and efficient grid-connected solar energy generation.

Key Features

Outstanding Conversion Efficiency

The GoodWe GW30K-SDT-C30 achieves a maximum efficiency of 98.7%, allowing more solar energy to be converted into usable AC electricity. This helps reduce electricity costs while improving the return on investment for commercial solar projects.

Three Independent MPPTs

The inverter is equipped with three Maximum Power Point Trackers, each supporting two PV strings. This design maximizes power generation from multiple solar arrays, especially when panels have different orientations or experience partial shading.

Flexible Solar System Design

The wide MPPT voltage range of 200V to 1000V enables flexible string configurations and supports various photovoltaic system layouts, making it suitable for complex commercial and industrial installations.

Intelligent Remote Monitoring

Standard Wi-Fi connectivity allows users to monitor real-time power generation, inverter performance, fault notifications, and energy statistics through the GoodWe SEMS Portal. Optional Ethernet, GPRS, and RS485 interfaces provide additional communication flexibility.

Advanced Protection System

The GW30K-SDT-C30 integrates multiple protection mechanisms, including:

• DC reverse polarity protection

• AC short circuit protection

• Output overcurrent protection

• Output overvoltage protection

• Insulation resistance detection

• Anti-islanding protection

• Type II DC & AC surge protection

• Residual Current Monitoring Unit (RCMU)

These features ensure safe operation while protecting the inverter and connected solar equipment.

Quiet & Durable Performance

Natural convection cooling eliminates the need for high-speed cooling fans, resulting in low operating noise of less than 30 dB and reduced maintenance requirements. The IP65-rated enclosure protects against dust, moisture, and harsh outdoor environments.

Technical Highlights

• 30KW three-phase on-grid solar inverter

• 45KW maximum PV input power

• 98.7% maximum efficiency

• Three independent MPPTs

• Six PV string inputs

• 1100V maximum DC input voltage

• Wide MPPT voltage range (200V–1000V)

• Transformerless topology

• Built-in Wi-Fi monitoring

• Optional RS485, Ethernet, and GPRS communication

• LCD display

• Natural convection cooling

• IP65 weatherproof enclosure

• Type II surge protection

• Anti-islanding protection

• Ultra-low night self-consumption (<1W)

Applications

The GoodWe GW30K-SDT-C30 is suitable for a wide range of commercial and industrial solar installations, including:

• Manufacturing factories

• Industrial plants

• Commercial buildings

• Shopping malls

• Office complexes

• Educational institutions

• Hospitals

• Hotels and resorts

• Agricultural solar projects

• Large rooftop solar systems

• Warehouse facilities

Its high efficiency, intelligent monitoring, and robust protection make it an excellent solution for large grid-connected photovoltaic systems.

Why Choose This Product

The GoodWe GW30K-SDT-C30 combines industry-leading efficiency, intelligent monitoring, and advanced protection technologies to deliver reliable long-term solar energy production. Its three MPPT architecture maximizes power generation, while built-in Wi-Fi allows convenient remote monitoring and system management.

With an IP65-rated enclosure, natural convection cooling, and comprehensive protection features, this inverter is engineered for dependable operation in demanding environments. It offers outstanding performance, lower maintenance requirements, and excellent value for commercial and industrial solar projects.
