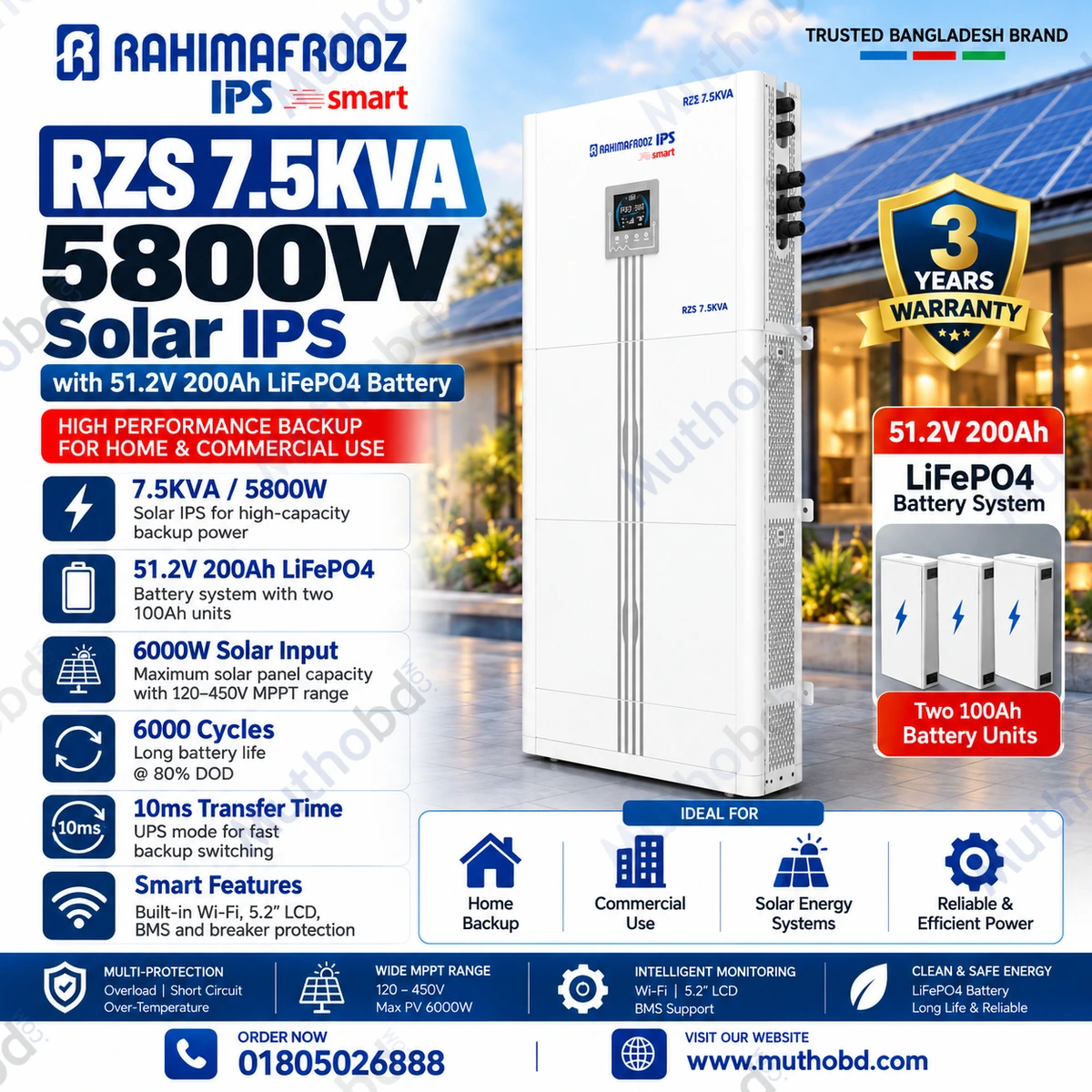

Rahimafrooz RZS 7.5KVA 5800W Solar IPS with 51.2V 200Ah LiFePO4 Battery

Product Overview

The RZS 7.5KVA 5800W Solar IPS is a high-capacity solar backup power solution designed for homes, offices, businesses and other applications requiring dependable backup electricity. The system combines a 5800W output, dual 51.2V 100Ah LiFePO4 battery units, solar charging capability and UPS functionality into a complete energy-storage solution.

With a maximum solar panel capacity of 6000W, the RZS 7.5KVA can utilize solar energy to recharge its battery system. Its MPPT tracking range of 120–450V and maximum PV input voltage of 500V provide a broad operating range for suitable solar panel configurations.

51.2V 200Ah LiFePO4 Battery System

The RZS 7.5KVA uses two 51.2V 100Ah LiFePO4 battery units, providing a combined nominal battery capacity of approximately 10.24kWh based on the supplied voltage and capacity specifications.

The battery system is specified for up to 6000 cycles at 80% depth of discharge (DOD). A software-protection BMS with a specified 100A BMS current is included for battery management and protection.

This configuration makes the system suitable for users looking for a higher-capacity lithium battery backup solution for regular power backup and solar energy storage.

5800W Output Power

The RZS 7.5KVA provides a rated 5800W output power with a specified no-load output voltage of 220V and full-load output voltage of 220V ±5%.

Its high output capacity makes it suitable for supporting multiple electrical loads, subject to the total load requirements and system operating conditions.

6000W Solar Input with MPPT

A major advantage of this model is its 6000W maximum solar panel capacity. The system supports a maximum PV input voltage of 500V and an MPPT tracking range of 120–450V.

The supplied specification lists a solar charging time of approximately 3 hours 30 minutes and a maximum charging current of 100A. Actual charging performance will depend on solar irradiation, panel configuration, battery state of charge and connected loads.

Fast UPS Transfer

The RZS 7.5KVA supports a transfer time of 20ms, with a faster 10ms transfer time in UPS mode according to the supplied specifications.

This fast transfer capability can help reduce interruptions to connected equipment when mains electricity becomes unavailable.

Built-in Wi-Fi and LCD Display

For convenient system monitoring, the RZS 7.5KVA includes a large 5.2-inch LCD display and built-in Wi-Fi. These features provide users with easier access to system information and monitoring functions supported by the product.

Protection Features

The system includes BMS and breaker protection. The supplied specifications also define overload capability of:

• 1 minute at 102%–110% load

• 10 seconds at 110%–130% load

These specifications help define how the inverter is designed to respond to temporary overload conditions.

Compact Inverter with Separate Battery Units

The inverter measures approximately 170 × 675 × 310 mm and weighs around 16 kg. Each battery unit measures approximately 170 × 675 × 420 mm and weighs around 53.76 kg.

The specified operating temperature range is 0°C to 45°C, while inverter noise emission is rated at ≤50 dB. The listed protection rating is IP20, so installation should be performed in a suitable protected environment.

Applications

The RZS 7.5KVA Solar IPS can be considered for:

• Home backup power

• Large residential electrical loads

• Office backup

• Shop and business applications

• Solar energy storage

• Load-shedding backup

• Essential electrical equipment

• Solar-assisted backup power systems

• High-capacity residential backup systems

The actual number of appliances that can be operated simultaneously depends on their combined power consumption and the 5800W output limit.

Why Choose RZS 7.5KVA Solar IPS?

The RZS 7.5KVA brings together 5800W output power, a 10.24kWh nominal LiFePO4 battery configuration, 6000W solar input, MPPT charging, UPS functionality, built-in Wi-Fi and LCD monitoring.

For customers in Bangladesh searching for a 7.5KVA Solar IPS with LiFePO4 battery, this model offers a high-capacity solution for solar backup and energy-storage applications.
