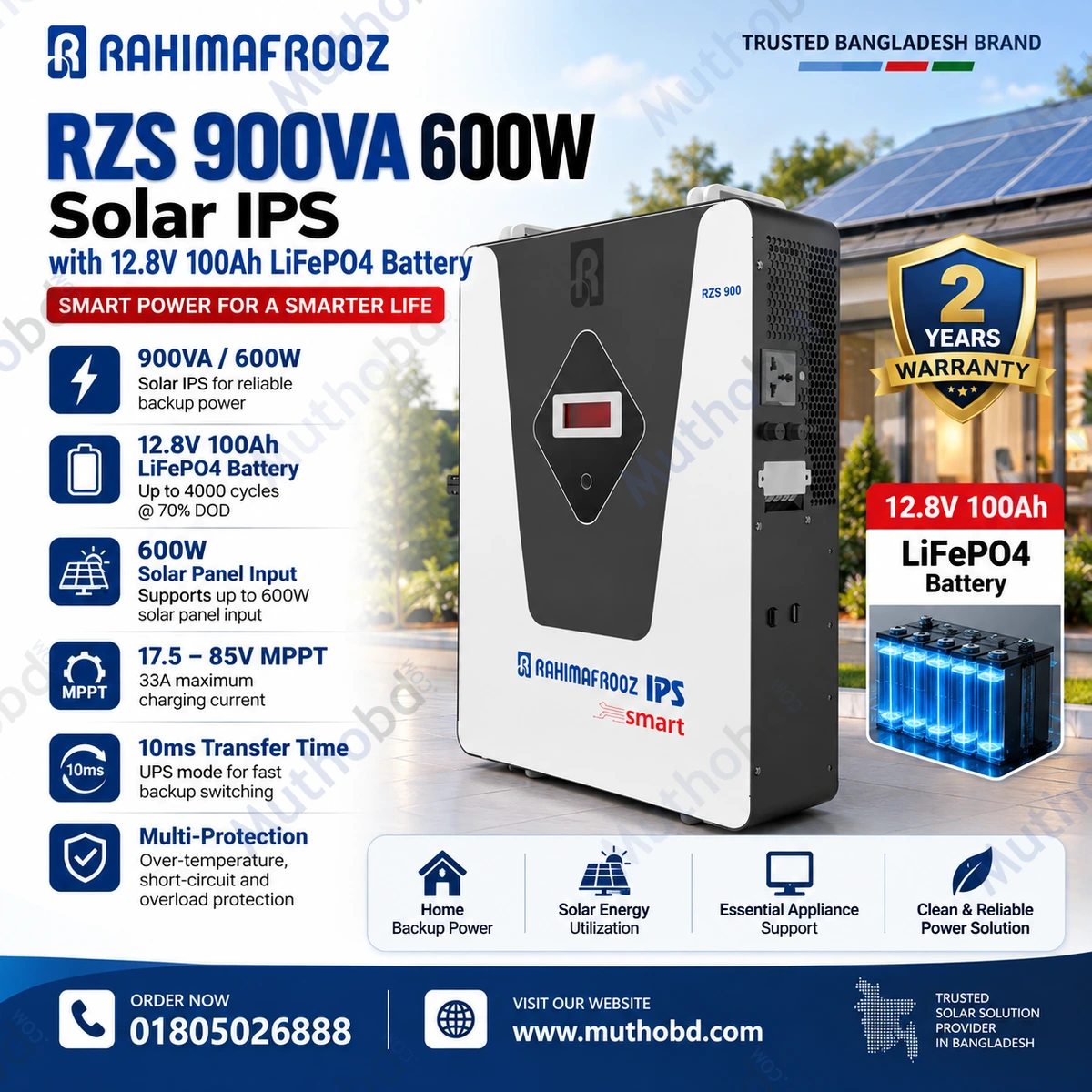

Rahimafrooz RZS 900VA 600W Solar IPS with 12.8V 100Ah LiFePO4 Battery

Product Overview

The RZS 900VA 600W Solar IPS is a compact solar backup power solution designed for homes, offices, small businesses and other applications requiring reliable electricity backup. It combines a 600W output capacity, built-in 12.8V 100Ah LiFePO4 battery, solar charging capability and UPS functionality in a single system.

With a maximum solar panel capacity of 600W, the system can utilize solar energy for battery charging while also supporting mains charging. Its integrated MPPT charging system provides a tracking range of 17.5–85V and supports a maximum charging current of 33A.

12.8V 100Ah LiFePO4 Battery

The RZS 900VA uses a 12.8V 100Ah LiFePO4 battery, providing a durable energy-storage solution for regular backup applications. The specified battery life is up to 4000 cycles at 70% depth of discharge (DOD).

A built-in 120A hardware-protection BMS helps manage and protect the battery system. LiFePO4 battery technology also makes the system suitable for users looking for a long-cycle-life backup solution.

600W Solar Charging Capacity

One of the key advantages of this solar IPS is its ability to accept up to 600W of solar panel capacity. The maximum solar input voltage is specified as 105V Voc, while the MPPT tracking range is 17.5–85V.

The specified solar charging time is approximately 5 hours, depending on solar conditions, panel configuration and system operation.

For Bangladesh's solar environment, proper panel sizing and installation are important to achieve the expected charging performance.

Fast UPS Transfer Time

The system provides a transfer time of 20ms, reducing to 10ms in UPS mode according to the supplied specification. This fast switching capability can help connected equipment continue operating when mains power fails.

It can therefore be considered for applications where uninterrupted or quick-transition backup power is important.

600W Output Power

The RZS 900VA provides a 600W output power with a specified output voltage of 220V. At full load, the output voltage is specified as 220V ±5%.

The system also provides defined overload capability, supporting 102%–110% load for up to 10 minutes and 110%–130% load for up to 1 minute, according to the supplied specifications.

Multiple Protection Features

Safety is an important part of any backup power system. The RZS 900VA includes over-temperature protection, short-circuit protection and overload protection.

The built-in BMS also provides hardware-based battery protection. These features help protect the system and connected equipment during specified abnormal operating conditions.

LCD Display and Compact Design

The system features a 1.5-inch LCD display for viewing relevant system information. With dimensions of approximately 480 × 340 × 120 mm and a net weight of 16.15 kg, the unit is designed for practical installation where space is limited.

The specified operating temperature range is 0–40°C, while inverter noise emission is rated at ≤45 dB.

Applications

The RZS 900VA 600W Solar IPS can be considered for:

• Home backup power

• Small office backup

• Wi-Fi router and networking equipment

• Lighting systems

• Small electronic devices

• Solar backup systems

• Load-shedding backup

• Small business applications

• Essential electrical loads

The actual backup time will depend on the connected load, battery condition, operating mode and other system factors.

Why Choose RZS 900VA Solar IPS?

The RZS 900VA combines a 600W inverter output, 100Ah LiFePO4 battery, 600W solar input, MPPT charging and UPS functionality in one compact system. Its long-cycle-life battery, fast UPS transfer time and multiple protection features make it a practical choice for users looking for solar-assisted backup power.

For customers in Bangladesh looking for a 600W Solar IPS with LiFePO4 battery, this model can be considered for residential, office and small-load backup applications.
