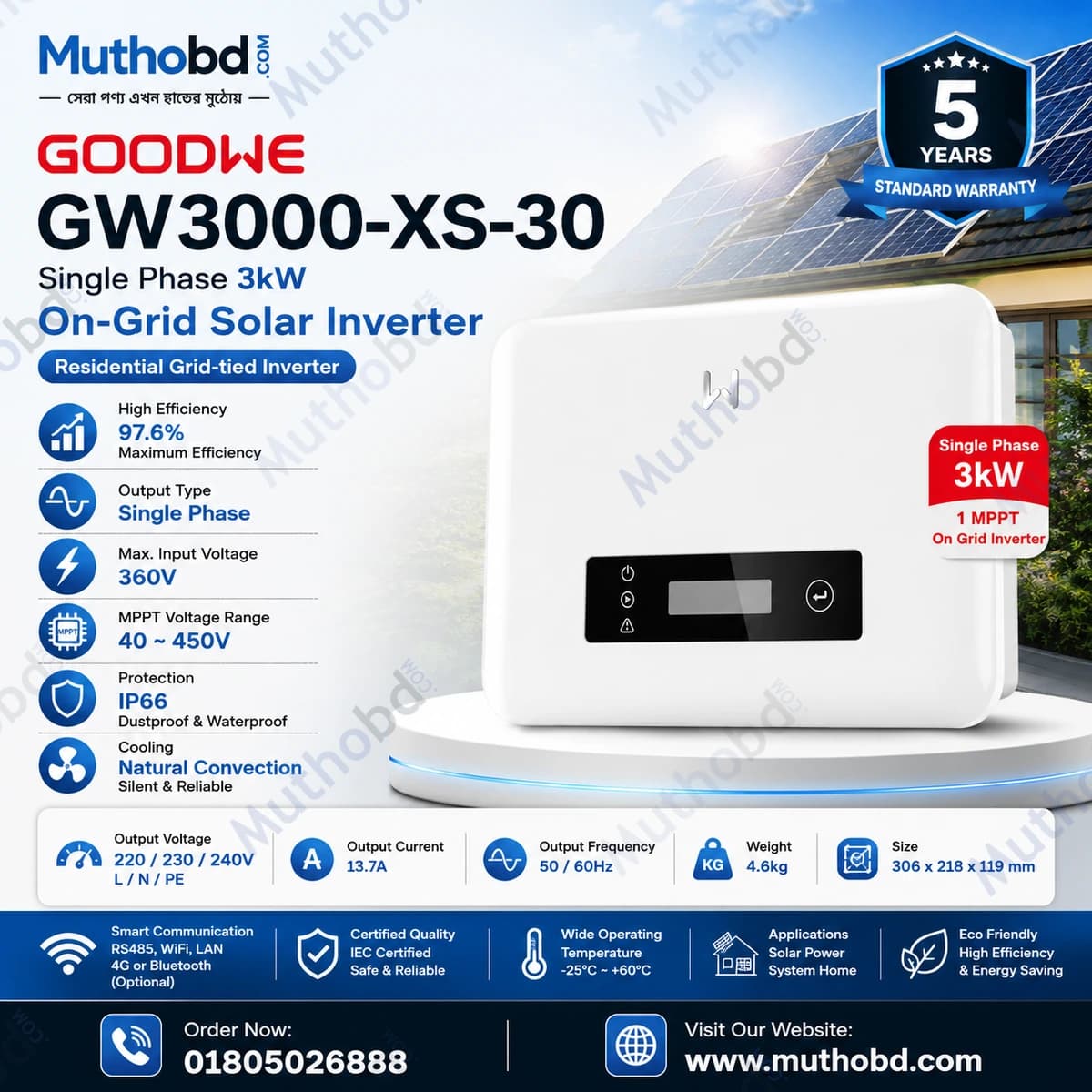

GoodWe GW3000-XS-30 3kW Single Phase On-Grid Solar Inverter
In Stock
Key Features
3kW single-phase on-grid solar inverter for residential PV systems.
High conversion efficiency of up to 97.6% for improved energy production.
Wide MPPT voltage range supports flexible solar panel configurations.
Natural convection cooling ensures quiet and low-maintenance operation.
Built-in LCD display with optional WiFi, LAN, Bluetooth, or 4G monitoring.
Comprehensive protection features enhance system reliability and safety.
IP66-rated enclosure suitable for indoor and outdoor installations.
Compact 4.6 kg design for fast and convenient installation.
Supports Modbus RTU and Modbus TCP communication protocols.
Compatible with modern grid-connected rooftop solar systems.
WhatsApp+880 1805 026888
Payment Option:
Payment options will be updated soon.
Product URL: https://www.muthobd.com/product/good-we-gw3000-xs-30-3k-w-single-phase-on-grid-solar-inverter
Specification
| Specification | Value |
|---|---|
| Brand | GoodWe |
| Model | GW3000-XS-30 |
| Product Type | Single Phase On-Grid Solar Inverter |
| Inverter Type | DC/AC Grid-Tied Inverter |
| Application | Residential Solar Power System |
| Product Name | Grid Solar Inverter |
| Country of Origin | Henan, China |
| Certification | IEC |
| User Interface | LCD, WLAN + APP |
| Topology | Non-isolated |
| Warranty | Not Specified |
| Specification | Value |
|---|---|
| Maximum Input Voltage | 600V DC |
| MPPT Operating Voltage Range | 40–450V DC |
| Start-up Voltage | 50V |
| Nominal Input Voltage | 360V DC |
| Maximum Input Current per MPPT | 16A |
| Maximum Short Circuit Current per MPPT | 25A |
| Number of MPPT Trackers | 1 |
| Number of Strings per MPPT | 1 |
| Specification | Value |
|---|---|
| Nominal Output Power | 3000W |
| Nominal Apparent Power | 3000VA |
| Maximum AC Active Power | 3300W |
| Maximum AC Apparent Power | 3300VA |
| Nominal Output Voltage | 220 / 230 / 240V AC (L / N / PE) |
| Output Voltage Range | 154–288V |
| Maximum Output Current | 13.7A |
| AC Grid Frequency | 45–55Hz / 57–63Hz |
| Rated Frequency | 50 / 60Hz |
| Power Factor | ~1 (Adjustable from 0.8 Leading to 0.8 Lagging) |
| Maximum Total Harmonic Distortion | <3% |
| Specification | Value |
|---|---|
| Maximum Efficiency | 97.6% |
| European Efficiency | 97.1% |
| Specification | Value |
|---|---|
| PV String Current Monitoring | Integrated |
| PV Insulation Resistance Detection | Integrated |
| Residual Current Monitoring | Integrated |
| PV Reverse Polarity Protection | Integrated |
| Anti-Islanding Protection | Integrated |
| AC Overcurrent Protection | Integrated |
| AC Short Circuit Protection | Integrated |
| AC Overvoltage Protection | Integrated |
| DC Switch | Integrated |
| DC Surge Protection | Type III |
| AC Surge Protection | Type III |
| AFCI | Optional |
| Remote Shutdown | Optional |
| PV Power Supply | Integrated |
| Ingress Protection Rating | IP66 |
| Specification | Value |
|---|---|
| Communication | RS485, WiFi, LAN, 4G or Bluetooth (Optional) |
| Communication Protocols | Modbus RTU, Modbus TCP |
| Specification | Value |
|---|---|
| Cooling Method | Natural Convection |
| Dimensions | 306 × 218 × 119 mm |
| Weight | 4.6 kg |
| Noise Emission | <20 dB |
| DC Connector | MC4 (4–6 mm²) |
| AC Connector | Plug and Play Connector |
| Specification | Value |
|---|---|
| Operating Temperature | -25°C to +60°C |
| Relative Humidity | 0–100% |
| Maximum Operating Altitude | 4000 m |
| Self-consumption at Night | <3W |
Detailed description
Product Overview
The GoodWe GW3000-XS-30 3kW Single Phase On-Grid Solar Inverter is a compact and efficient inverter developed for residential grid-connected photovoltaic (PV) systems. Manufactured by GoodWe, this inverter converts DC electricity from solar panels into stable AC power for household consumption and grid export.
With a maximum efficiency of 97.6%, advanced MPPT technology, and comprehensive protection functions, the GW3000-XS-30 is designed to help homeowners maximize energy production while maintaining safe and reliable system operation. Its lightweight design, natural convection cooling, and IP66-rated enclosure make it suitable for both indoor and outdoor installations.
Key Features
The GoodWe GW3000-XS-30 combines efficient energy conversion with intelligent monitoring and robust protection.
Key benefits include the following:
High conversion efficiency of up to 97.6%.
Wide MPPT operating voltage range (40–450V) for flexible PV system design.
Compact 4.6 kg construction for easier installation.
Quiet operation through natural convection cooling.
LCD display with optional WiFi, LAN, Bluetooth, or 4G connectivity.
Integrated protection against overcurrent, short circuit, reverse polarity, and anti-islanding.
IP66-rated enclosure for reliable outdoor performance.
Support for Modbus RTU and Modbus TCP communication.
These features help improve energy harvesting while simplifying system monitoring and maintenance.
Technical Highlights
The GW3000-XS-30 is engineered for dependable long-term operation in residential solar installations.
Highlights include:
3000W nominal output power.
3300W maximum AC output.
Maximum input voltage of 600V DC.
MPPT voltage range from 40V to 450V.
Single MPPT with one PV string input.
Maximum output current of 13.7A.
Less than 20 dB operating noise.
IP66 weather-resistant enclosure.
Integrated DC switch and Type III surge protection.
Support for RS485 and optional wireless communication.
Its advanced electrical protection and intelligent monitoring capabilities make it a practical solution for modern rooftop solar systems.
Applications
The GoodWe GW3000-XS-30 is suitable for a wide range of residential solar applications, including the following:
Residential rooftop solar systems.
Single-phase grid-connected PV installations.
Home energy-saving projects.
Residential renewable energy upgrades.
Smart home solar systems.
Small commercial solar installations are compatible.
Its compact dimensions and flexible communication options make it suitable for new installations as well as system upgrades.
Why Choose This Product
The GoodWe GW3000-XS-30 provides an excellent balance of efficiency, reliability, and ease of use. Its high conversion efficiency helps maximize the electricity generated by solar panels, while the wide MPPT operating range supports various PV module configurations.
Natural convection cooling minimizes maintenance requirements and keeps operating noise low. Combined with comprehensive electrical protection and optional remote monitoring, this inverter is designed to deliver dependable performance throughout its service life.
Why Buy from MuthoBD
MuthoBD.com is a trusted online store in Bangladesh offering original solar products, electrical equipment, inverters, batteries, networking devices, and industrial solutions.
When you purchase from MuthoBD, you receive:
Original and genuine products from trusted suppliers.
Competitive pricing with transparent product information.
Secure online ordering.
Fast and nationwide delivery across Bangladesh.
Cash on Delivery where available.
Responsive customer support.
Assistance in selecting compatible solar equipment.
Visit MuthoBD.com to compare solar inverters and renewable energy products and shop at the best price in Bangladesh.
- The GoodWe GW3000-XS-30 is a 3kW single-phase on-grid solar inverter designed for residential photovoltaic systems. It converts DC electricity from solar panels into AC power for use in homes and grid-connected applications with high efficiency.
