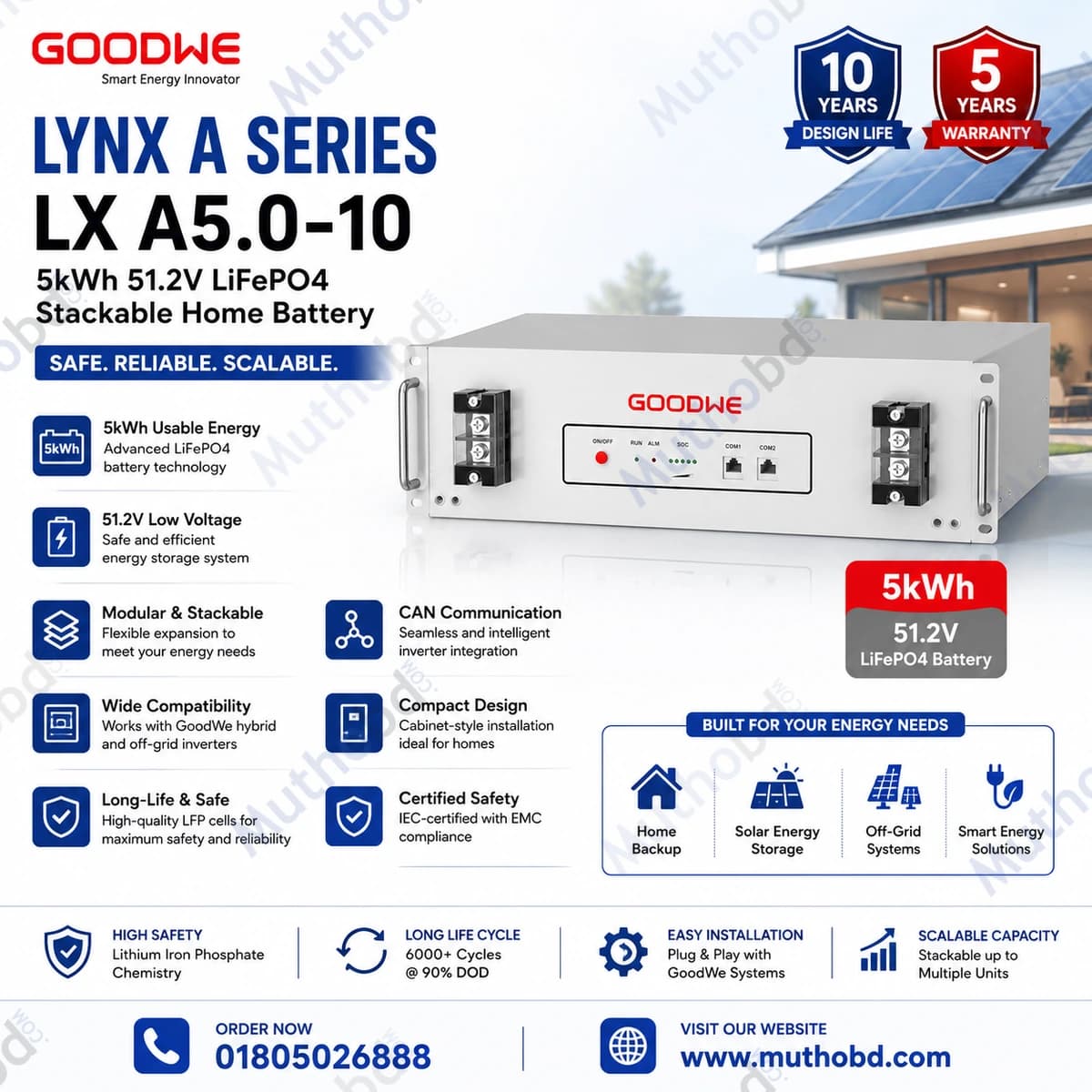

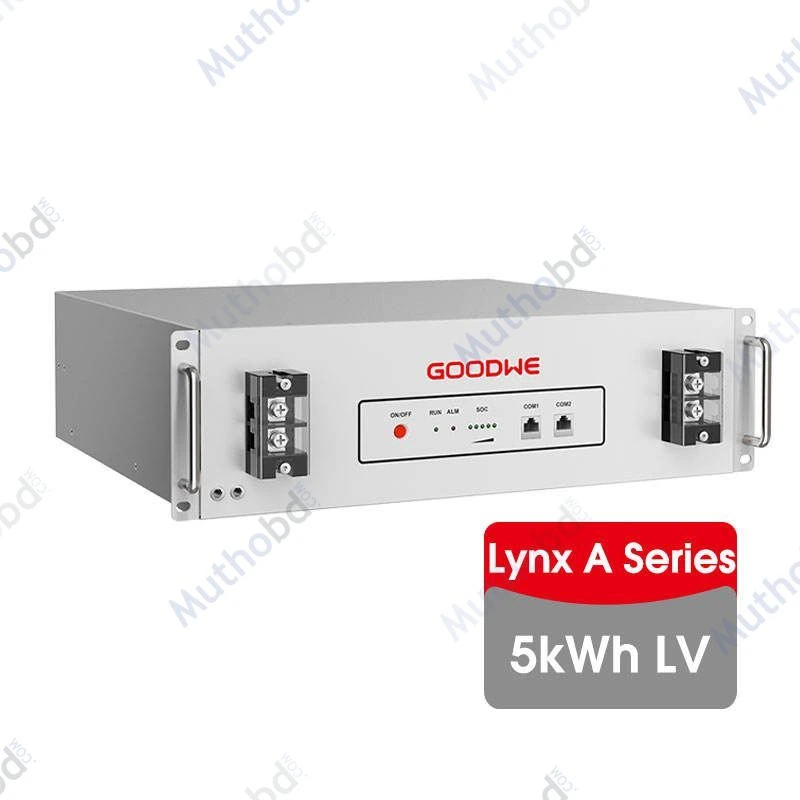

GoodWe Lynx A LX A5.0-10 5kWh 51.2V LiFePO4 Stackable Home Battery Storage System
In Stock
Key Features
5kWh usable energy with advanced LiFePO4 battery technology.
51.2V low-voltage battery system for safe and efficient energy storage.
Modular stackable design for flexible capacity expansion.
Compatible with GoodWe hybrid and off-grid energy storage systems.
Long-life LFP cells deliver excellent safety and reliability.
CAN communication for seamless inverter integration.
Compact cabinet-style installation suitable for residential applications.
Wide operating temperature range for dependable year-round performance.
IEC-certified safety and EMC compliance.
Ideal for home backup power and solar energy storage systems.
WhatsApp+880 1805 026888
Payment Option:
Payment options will be updated soon.
Product URL: https://www.muthobd.com/product/good-we-lynx-a-lx-a5-0-10-5k-wh-51-2-v-li-fe-po4-stackable-home-battery-storage-system
Specification
| Brand | GoodWe |
|---|---|
| Series | Lynx A Series |
| Model | LX A5.0-10 |
| Product Type | Low Voltage Home Battery Storage System |
| Battery Type | LiFePO4 (LFP) |
| Usable Energy | 5kWh |
| System Voltage | 51.2V |
| Grid Compatibility | Off-Grid, Hybrid Grid |
| System Type | Stackable |
| Mounting Method | Cabinet / Landing Stacked |
| Communication | CAN |
| Protection Rating | IP21 |
| Country of Origin | China |
| Specification | Value |
|---|---|
| Battery Module LX A5.0-10 | 51.2V 5.0kWh |
| Cell Type | LiFePO4 (LFP) |
| Nominal Voltage | 51.2V |
| Operating Voltage Range | 47.5–57.6V |
| Number of Modules | 1 |
| Nominal Charge / Discharge Current | 60A |
| Nominal Power | 3kW |
| Specification | Value |
|---|---|
| Charging Temperature | 0°C to +50°C |
| Discharging Temperature | -10°C to +50°C |
| Relative Humidity | 0–95% |
| Maximum Operating Altitude | 3000m |
| Specification | Value |
|---|---|
| Dimensions (L × W × H) | 483 × 133 × 452 mm |
| Weight | 40 kg |
| Installation Type | Cabinet / Landing Stacked |
| Specification | Value |
|---|---|
| Communication Interface | CAN |
| Specification | Value |
|---|---|
| Safety Standards | IEC62619, IEC63056, IEC62040-1 |
| EMC Standards | EN IEC61000-6-1, EN IEC61000-6-2, EN IEC61000-6-3, EN IEC61000-6-4 |
| Transportation Certification | UN38.3, ADR |
Detailed description
Product Overview
The GoodWe Lynx A LX A5.0-10 5kWh 51.2V LiFePO4 Home Battery Storage System is a reliable and scalable low-voltage energy storage solution designed for modern residential solar systems. Built with advanced Lithium Iron Phosphate (LiFePO4) technology, this battery provides dependable backup power, efficient solar energy storage, and long-term performance for homes using hybrid or off-grid solar systems.
As part of the GoodWe Lynx A Series, the LX A5.0-10 features a modular stackable architecture that allows homeowners to expand storage capacity as their energy needs grow. Whether powering essential household loads during outages or maximizing self-consumption of solar energy, this battery delivers stable performance with intelligent battery management.
Designed for seamless integration with compatible GoodWe hybrid inverters, the battery communicates through the CAN interface, enabling efficient charging, discharging, and real-time system monitoring.
Key Features
The GoodWe Lynx A Series battery is engineered to provide safe, efficient, and flexible residential energy storage.
5kWh usable energy capacity
51.2V low-voltage battery system
Advanced LiFePO4 battery chemistry
Modular stackable design for future expansion
Compatible with hybrid and off-grid solar systems
CAN communication for intelligent battery management
Cabinet / landing stacked installation
High safety standards with international certifications
Wide operating temperature range
Compact footprint for residential installations
Technical Highlights
The GoodWe Lynx A LX A5.0-10 utilizes premium LFP battery cells that are known for excellent thermal stability, long service life, and enhanced operational safety compared to conventional lithium battery technologies.
Operating between 47.5V and 57.6V, the battery delivers 60A nominal charge and discharge current with 3kW nominal power, making it ideal for daily solar energy storage and backup applications.
Its stackable cabinet design allows users to start with a single 5kWh module and expand the storage system by adding additional battery modules as energy demand increases.
Certified according to IEC safety and EMC standards, the battery offers dependable performance while maintaining compliance with international energy storage requirements.
Applications
The GoodWe Lynx A LX A5.0-10 is suitable for:
Residential solar energy storage
Hybrid solar systems
Off-grid solar installations
Home backup power
Self-consumption optimization
Smart home energy management
Villas and apartments
Small commercial backup systems
Renewable energy storage projects
Why Choose This Product
The GoodWe Lynx A Series battery offers homeowners a reliable and future-ready energy storage solution. Its modular design provides flexibility for system expansion, while LiFePO4 battery technology delivers excellent safety, efficiency, and long-term reliability.
The low-voltage architecture simplifies installation, reduces maintenance requirements, and integrates smoothly with compatible GoodWe hybrid inverters. With international certifications and intelligent communication, it is an excellent investment for anyone seeking dependable solar energy storage.
Why Buy from MuthoBD
Purchase the GoodWe Lynx A LX A5.0-10 from MuthoBD and enjoy:
100% Original GoodWe Product
Competitive Price in Bangladesh
Genuine Product Guarantee
Fast Nationwide Delivery
Professional Technical Support
Secure Online Ordering
After-Sales Service Support
Trusted Solar Energy Solution Provider
MuthoBD is committed to delivering high-quality renewable energy products for residential and commercial customers across Bangladesh.
- The GoodWe Lynx A LX A5.0-10 is a 5kWh 51.2V LiFePO4 residential battery storage system designed for hybrid and off-grid solar power systems.
