What is the GoodWe Lynx G3 LX A5.0-30?

The GoodWe Lynx G3 LX A5.0-30 is a 5.12kWh wall-mounted LiFePO4 battery designed for residential hybrid solar energy storage systems. It stores excess solar power for backup and daily energy use.

What battery technology does it use?

The battery uses advanced Lithium Iron Phosphate (LiFePO4) cells, providing excellent safety, long service life, high efficiency, and stable charging performance.

What is the battery capacity?

The battery offers 5.12kWh nominal energy with 5kWh usable capacity, making it suitable for residential backup and solar self-consumption.

Is the battery compatible with hybrid solar systems?

Yes. The GoodWe Lynx G3 LX A5.0-30 is specifically designed for hybrid grid-connected solar systems and integrates with compatible GoodWe hybrid inverters via CAN communication.

What is the maximum continuous output power?

The battery supports up to 7200W maximum continuous discharging power, allowing it to operate multiple household loads efficiently.

Can the battery provide backup power during outages?

Yes. When paired with a compatible hybrid inverter, it can supply stored energy to essential household appliances during utility power failures.

Is the battery suitable for outdoor installation?

The battery has an IP20 protection rating and is intended for indoor wall-mounted installation in a dry, well-ventilated location.

What communication interface does the battery use?

It uses CAN communication, enabling intelligent battery management and seamless communication with supported hybrid inverters.

Is the GoodWe Lynx G3 LX A5.0-30 available in Bangladesh?

Yes. The battery is available from MuthoBD with nationwide delivery, genuine products, and professional customer support.

Why should I buy this battery from MuthoBD?

MuthoBD offers genuine GoodWe products, competitive pricing, official warranty support, fast nationwide delivery, technical assistance, and trusted after-sales service for residential solar energy systems.

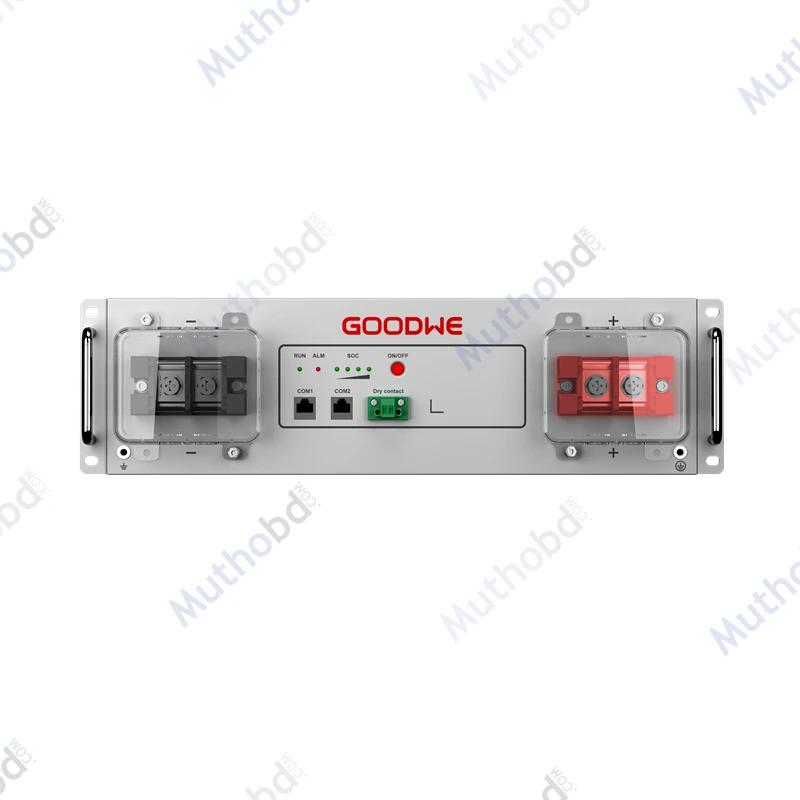

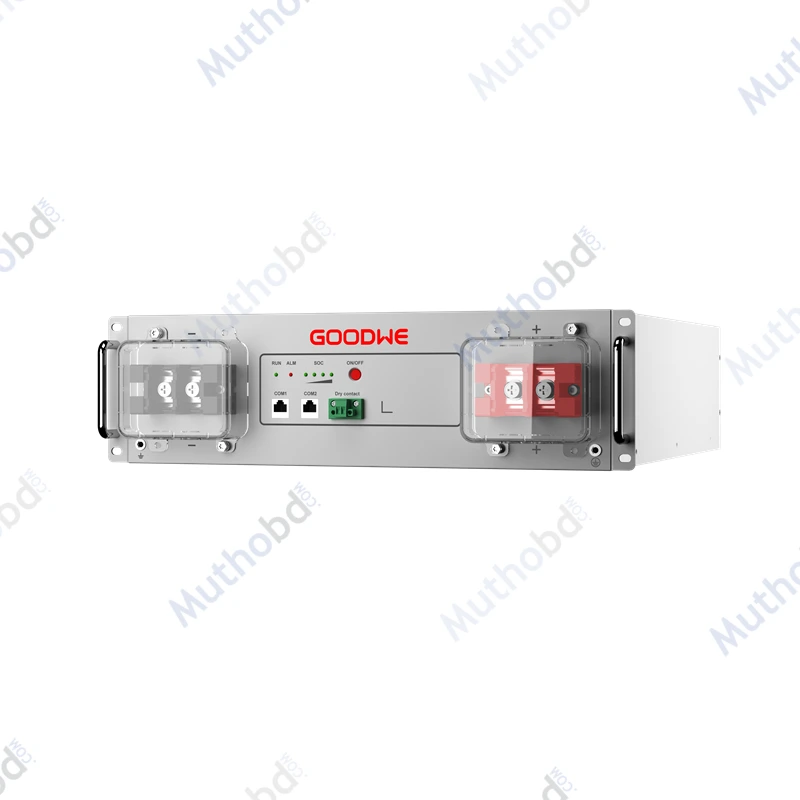

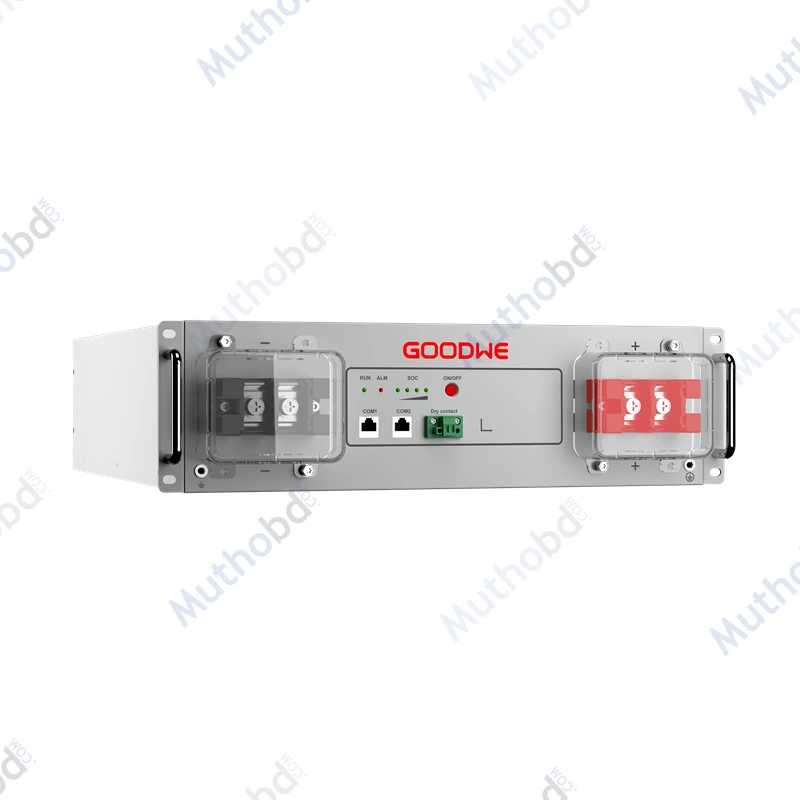

GoodWe Lynx G3 LX A5.0-30 5.12kWh 51.2V 100Ah Wall-Mounted LiFePO4 Solar Battery

In Stock

৳ 142,500৳ 150,000

Key Features

5.12kWh LiFePO4 battery with 5kWh usable energy.
51.2V low-voltage battery designed for hybrid solar systems.
High continuous output power up to 7200W.
Wall-mounted design saves installation space.
CAN communication for seamless inverter integration.
Supports continuous discharge current up to 150A.
Premium LiFePO4 cells provide excellent safety and long service life.
Compatible with GoodWe hybrid energy storage systems.
Maintenance-friendly split design.
RoHS compliant and environmentally friendly.

WhatsApp Phone Call

+880 1805 026888

Payment Option:

Payment options will be updated soon.

Quantity :

Specification

General Specifications

Specification	Value
Brand	GoodWe
Series	Lynx G3 Series
Model	LX A5.0-30
Product Type	Wall-Mounted Hybrid Solar Battery
Battery Type	LiFePO4 (Lithium Iron Phosphate)
Battery Capacity	100Ah
Nominal Battery Energy	5.12kWh
Usable Energy	5.0kWh
System Voltage	51.2V
Output Power Range	5–10kW
Grid Compatibility	Hybrid Grid
System Type	Split
Mounting Type	Wall-Mounted
Protection Rating	IP20
Communication Port	CAN
Environmental Compliance	RoHS
Country of Origin	Zhejiang, China

Battery Specifications

Specification	Value
Nominal Voltage	51.2V
Operating Voltage Range	43.20–58.24V
Nominal Charge Current	60A
Maximum Continuous Charge Current	90A
Nominal Discharge Current	100A
Maximum Continuous Discharge Current	150A
Pulse Discharge Current	<200A (30 Seconds)
Maximum Continuous Discharging Power	7200W

Mechanical Specifications

Specification	Value
Dimensions (L × W × H)	483 × 133 × 559 mm
Weight	44 kg
Installation Type	Wall-Mounted

Communication & Monitoring

Specification	Value
Communication Interface	CAN
Compatible System	Hybrid Energy Storage System

Protection & Safety

Specification	Value
Protection Class	IP20
Battery Chemistry	LiFePO4 (LFP)
Environmental Standard	RoHS Compliant

Applications

Specification	Value
Recommended Use	Residential Energy Storage
Suitable For	Hybrid Solar Power Systems
Backup Power Support	Yes
Indoor Installation	Yes

Product Description

Product Overview

The GoodWe Lynx G3 LX A5.0-30 5.12kWh 51.2V Wall-Mounted LiFePO4 Solar Battery is a next-generation residential energy storage solution developed for modern hybrid solar systems. Designed with advanced Lithium Iron Phosphate (LiFePO4) battery technology, it provides reliable backup power, excellent safety, and efficient energy storage for homes seeking greater energy independence.

With a nominal energy capacity of 5.12kWh and 5kWh usable energy, this battery stores excess solar energy generated during the day and supplies clean electricity whenever it is needed. Whether used for backup during power outages or to maximize solar self-consumption, the Lynx G3 Series delivers dependable long-term performance.

Its slim wall-mounted design helps save installation space while integrating seamlessly with compatible GoodWe hybrid solar inverters through the CAN communication interface.

Key Features

The GoodWe Lynx G3 Series is engineered to provide efficient and reliable home energy storage.

5.12kWh battery capacity with 5kWh usable energy
Advanced 51.2V LiFePO4 battery technology
High continuous discharge power up to 7200W
Continuous discharge current up to 150A
Compact wall-mounted installation
CAN communication for intelligent battery management
Hybrid grid compatible
Safe and environmentally friendly lithium battery chemistry
Stable performance with wide operating voltage range
Maintenance-free residential energy storage solution

Technical Highlights

The Lynx G3 LX A5.0-30 uses premium LiFePO4 cells that offer superior thermal stability, long service life, and enhanced operational safety compared with conventional lithium batteries.

Operating between 43.2V and 58.24V, the battery supports high charging and discharging currents while maintaining excellent efficiency for daily solar charging cycles.

Its maximum continuous discharge power of 7200W allows the battery to support household appliances and essential electrical loads during utility outages or peak electricity demand.

The integrated CAN communication ensures intelligent battery management and smooth integration with compatible GoodWe hybrid inverters for optimized charging, discharging, and monitoring.

Applications

The GoodWe Lynx G3 LX A5.0-30 is suitable for:

Residential solar energy storage
Hybrid solar systems
Home backup power
Self-consumption optimization
Smart home energy management
Villas and apartments
Renewable energy storage
Off-grid backup applications
Emergency power systems

Why Choose This Product

The GoodWe Lynx G3 Series offers homeowners a dependable and intelligent energy storage solution. Its compact wall-mounted design, premium LiFePO4 battery technology, and high discharge capability make it ideal for maximizing solar energy utilization while providing reliable backup power.

With intelligent communication, high efficiency, and long-term durability, the LX A5.0-30 is an excellent choice for modern residential solar installations.

Why Buy from MuthoBD

Purchase the GoodWe Lynx G3 LX A5.0-30 from MuthoBD and enjoy:

100% Original GoodWe Product
Best Price in Bangladesh
Official Warranty Support
Genuine Product Guarantee
Fast Nationwide Delivery
Professional Technical Assistance
Secure Online Shopping
Reliable After-Sales Service

MuthoBD is a trusted supplier of genuine solar batteries, hybrid inverters, solar panels, and renewable energy solutions in Bangladesh.

Frequently Asked Questions

The GoodWe Lynx G3 LX A5.0-30 is a 5.12kWh wall-mounted LiFePO4 battery designed for residential hybrid solar energy storage systems. It stores excess solar power for backup and daily energy use.
